BM preinsulated male PVC terminal lug 1.5mm diameter 4 100 pieces 00180

Bm
Bm
BMM 00180 8013629001800

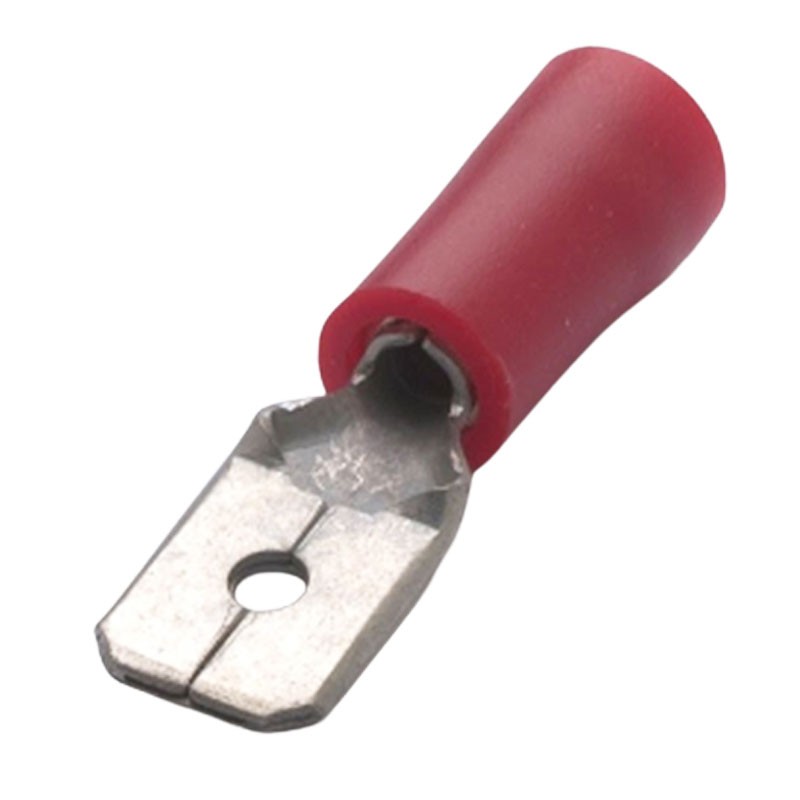

BM terminal lug pre-insulated male quick-connect, with the following characteristics:



  • Terminal material: tinned brass
  • Bushing material: copper
  • Insulation material: polyvinyl chloride (PVC)
  • Operating temperature: 75 °C max.
  • Insulation self-extinguishing level: UL 94 V0
  • Rated voltage: 300V max
  • Double crimping
  • Red color
  • Cross-section: 0.25 to 1.5 (mm²)
  • Cross-section (AWG/MCM): (22 - 16)
  • For male: 6.3 x 0.8 mm

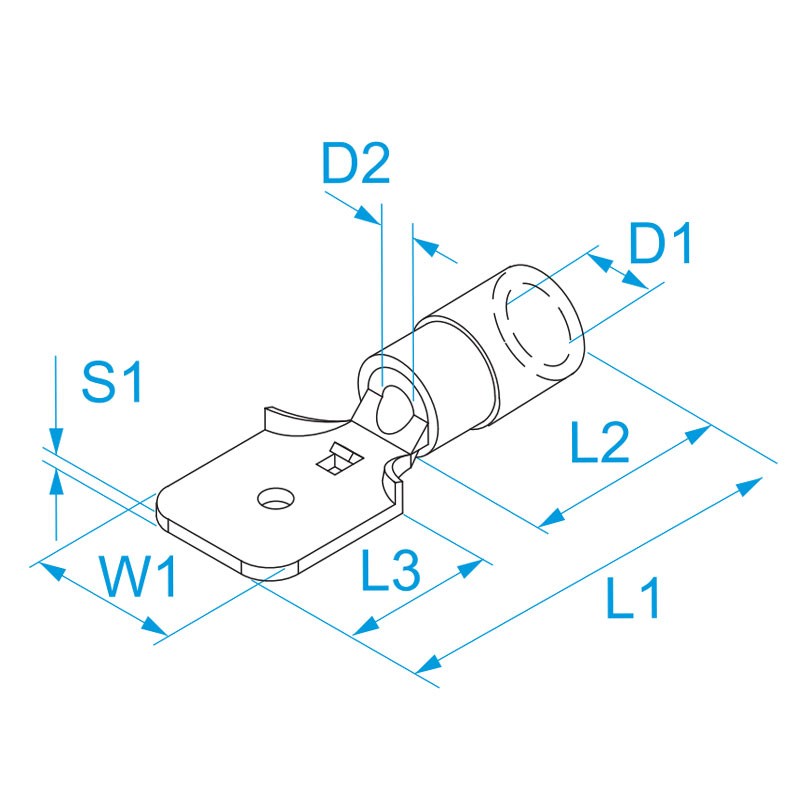

  • Dimensions W1 (mm) L1 (mm) L2 (mm) L3 (mm) D1 (mm) D2 (mm) S1 (mm): 6.3 21 10 8 3.8 1.9 0.8



Pack of 100 pieces.

Do you have questions about this product or did you not find what you were looking for? Ask us!
BM preinsulated male PVC terminal lug 1.5mm diameter 4 100 pieces 00180
€11.65
€11.65

€11.65
Tax included
Calculate shipping cost
Items Available: 27
Further availability of the manufacturer
€11.65

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

There are no reviews

Data sheet

Diameter:
4mm
Type:
Terminal lugs
Cross-Section:
1.5mmq
