120-minute fire resistant, shielded cables for fire alarm detection and warning systems. Halogen-free, very low smoke and toxic gas emission and non-fire propagating. Suitable for indoor installation in rooms open to the public, wet and outdoor (non-severe) environments and for cohabitation with 450/750V and 0.6/1kV energy cables.

Shielded 30-minute fire-resistant cables for fixed automatic fire detection and fire alarm systems. Halogen-free, very low smoke and toxic gas emission and non-fire propagating. Suitable for addressed systems, indoor installations in rooms open to the public, humid and outdoor (non-severe) environments and for cohabitation with 450/750V and 0.6/1kV energy cables.

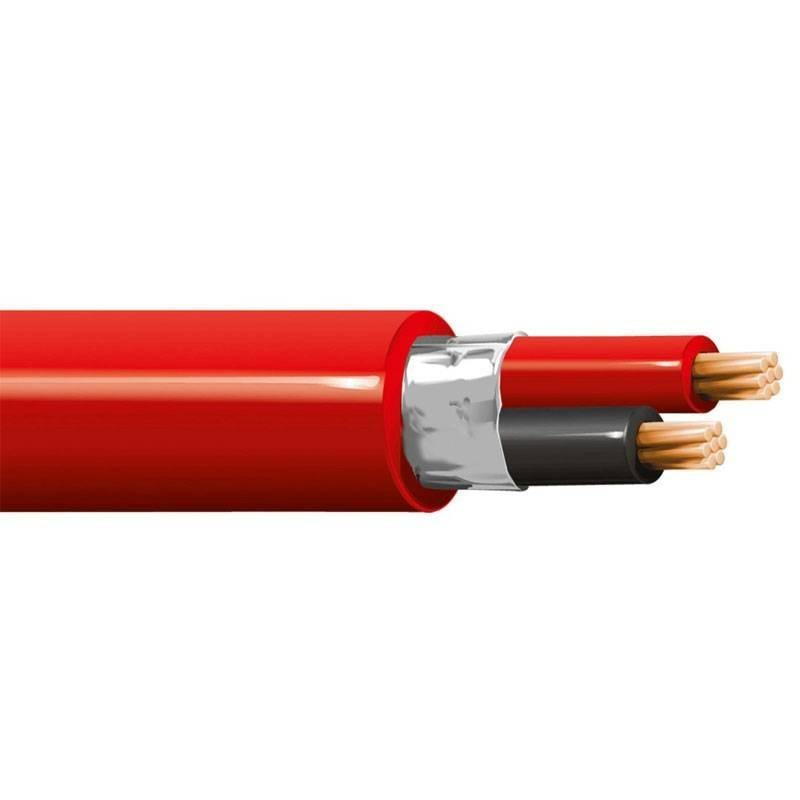

Features:

• Conductor 1 CU 2x1.5 mm²
• Conductor 1 (Resistance) 12 Ohm/Km
• Insulation G29 low capacitance
• Conductor color Red, Black Foil 1 Al/Pet 100 %.
• LSZH thermoplastic outer sheathing M16 quality Red
• Outer sheath (Diameter) 7.5 mm
• Mutual or coaxial cable capacitance: MUTUA 120 pF/m
• Characteristic inductance 0.65 mH/Km
• Insulation Resistance (20°C) Min 500 GOhm x Km
• Continuity wire CUSn 16 x 0.20 mm
• Rated voltage 100/100 V
• Operating temperature range -20 / +90 °C
• Sheath insulation C-4 (U0=400V)
• Test voltage 2.5 KVac
• Minimum bending radius 12 x O.D



Ideal for addressed systems, Permitted for outdoor or underground installation in conduit.

CPR Fire rating according to EN 50575: Ccas1b,d1,a1.
