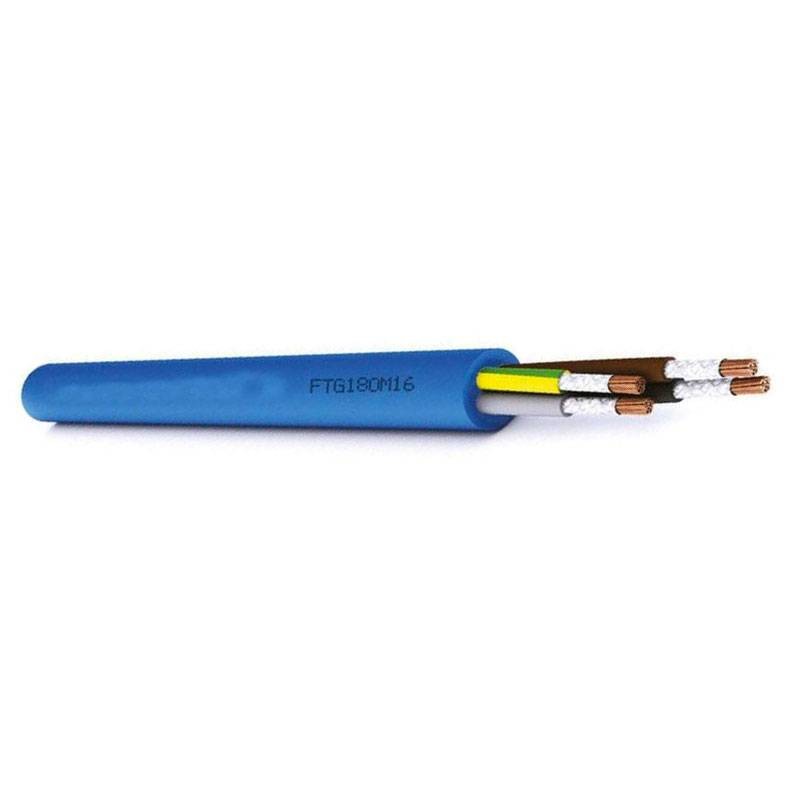

Flexible fire-resistant energy cable, insulated with G18-quality rubber,under M16-quality special thermoplastic sheath, halogen-free, fire-propagating and low smoke development.



Features:

• Conductor: Flexible annealed red copper cord, class 5
• Ribbon: Glass/mica helically wound
• Insulator: Rubber compound, G18 quality
• Filler: Compound of non-hygroscopic material
• Sheath color: Blue
• Fire resistance: 120 minutes at 820°C subjected to direct fire and mechanical shock (PH120-F120)
• Rated voltage Uo/U: 0.6/1 kV
• Maximum operating temperature: 90°C
• Minimum operating temperature: -15°C (in the absence of mechanical stress)
• Minimum installation temperature: 5°C
• Maximum short-circuit temperature: 250°C
• Maximum tensile stress: 50 N/mm2
• Minimum bending radius: 14 times the maximum outer diameter



Conditions of use: Suitable for carrying power for electrical systems when maximum safety against fire is required, such as emergency and alarm lights, railway stations, tunnels, subways, air terminals, automatic fire detection systems, fire extinguishing devices, automatic door openers, ventilation and air conditioning systems, emergency telephone systems. For fixed installation inside even wet environments and outdoors. Can be installed on masonry and metal structures, on walkways, pipes, ducts and similar systems. Allowed for underground installation, even unprotected.
