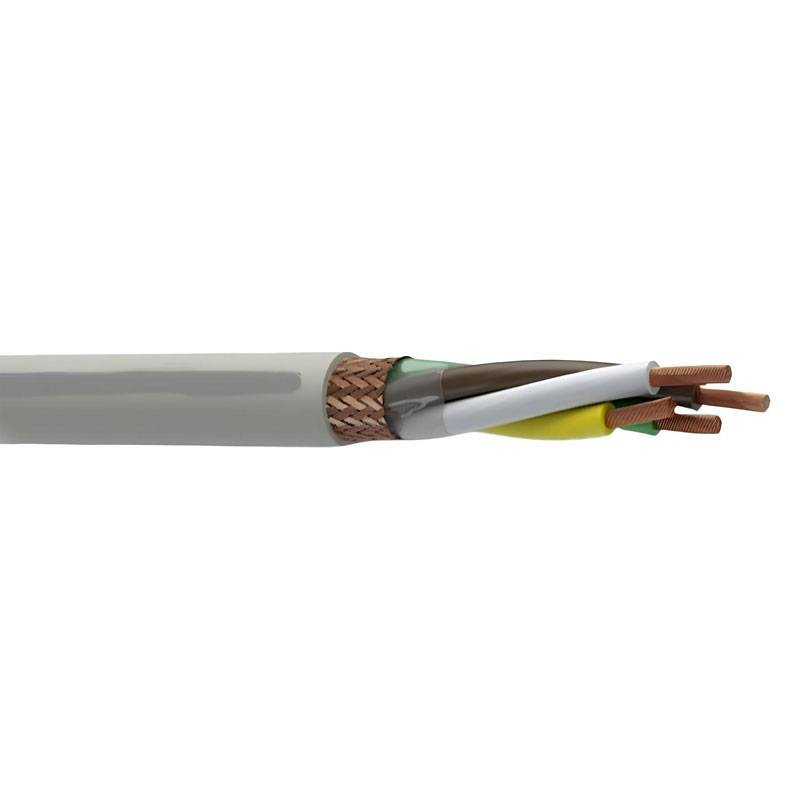

Controlflex Multi-core Shielded Cable FR2OH2R16 2x1.5 sq. mm Grey
BDS CFZ15002
Controlflex FR2OH2R16 multi-core shielded cable, flexible, compact and resistant to electromagnetic interference, with the following characteristics:
-
Section: 2x1.5 sq. mm
-
Conductor: Flexible red copper, class 5
-
Shielding: Red copper total braid
-
Sheath color: Gray
-
Outer diameter: 7.5 mm
-
Rated voltage: 300/500V
-
Applications: Automation, signaling, control, industrial environments
Sold by the meter.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€0.95
Items Available: 2685
: 300
Two-year warranty
Multi-core shielded cable for control and automation
CONTROLFLEX FR2OH2R16 is a shielded cable designed for applications in control, measurement, command and signaling systems in industrial and automation. Its compact and flexible structure allows it to be used in confined spaces and cable ducts, while maintaining excellent mechanical and electrical insulation characteristics.
Effective shielding against electromagnetic interference
The presence of a red copper braid on the total offers high protection against electromagnetic interference (EMI), ensuring proper signal transmission even in environments with high electrical noise. Ideal for installations in coexistence with energy cables or near power devices.
Compatibility and coexistence with energy cables
This cable can be installed together with 450/750V energy cables. When used for category 0 low-voltage systems, it can also coexist with 0.6/1kV cables intended to supply 230/400V loads, offering great installation flexibility. However, it is not suitable for underground laying, even if shielded.
Technical Characteristics FR2OH2R16 Shielded Cable
| Section | 2 x 1.5 sq. mm |
| Conductor | Flexible red copper, class 5 |
| Insulation | PVC type R2 |
| Outer sheath | PVC type R16 |
| Shielding | Red copper total braid |
| Sheath color | Gray |
| Core colors | According to DIN 47100 / CEI UNEL |
| Outer diameter | 7.5 mm |
| Rated voltage | 300 / 500 V |
| Test voltage | 2000 V |
| Conductor resistance (20°C) | 13.3 Ω/km |
| Operating temperature | -15 °C TO +70 °C |
| Maximum short-circuit temperature | +160 °C |
| Underground laying | Not permitted |
| CPR Compliance | EU Regulation 305/11 |
| Applications | Automation, signaling, control, industrial environments |
There are no reviews
Data sheet
- Colour: Grey
- Type: FR2OH2R16
- Cross-Section: 1.5mmq
- With yellow/green: No
- Number of cables: 2
