FS18OR18 cables belong to the AFIAM line and are marked Cca-s3,d1,a3, to indicate that they are compliant with the Construction Products Regulation (CPR) in accordance with the requirements prescribed in EN 50575:2014+A1:2016 and to indicate that they are of the non-fire-propagating type in accordance with the self-extinguishing requirements prescribed in IEC EN 50399 in whose tests heat emission, smoke production and possible dripping during the flame development test are also measured.

FS18OR18 cables are also flame-retardant on the single vertical cable as per EN and IEC 60332-1-2 (IEC 20-35) tests. In addition, to prevent further hazards from substances emitted during combustion of plastics, FS18OR18 cables are made of special halogen-reduced compounds, with the amount of hydrochloric acid, contained in the fumes emitted during combustion, less than 18%.

FS18OR18 cables belong to the ecological line called ECOGAMMA marked by the Windmill symbol. Lead, a heavy metal that is dangerous to the environment and to humans if present in excessive quantities, has been eliminated in these environmentally friendly cables.

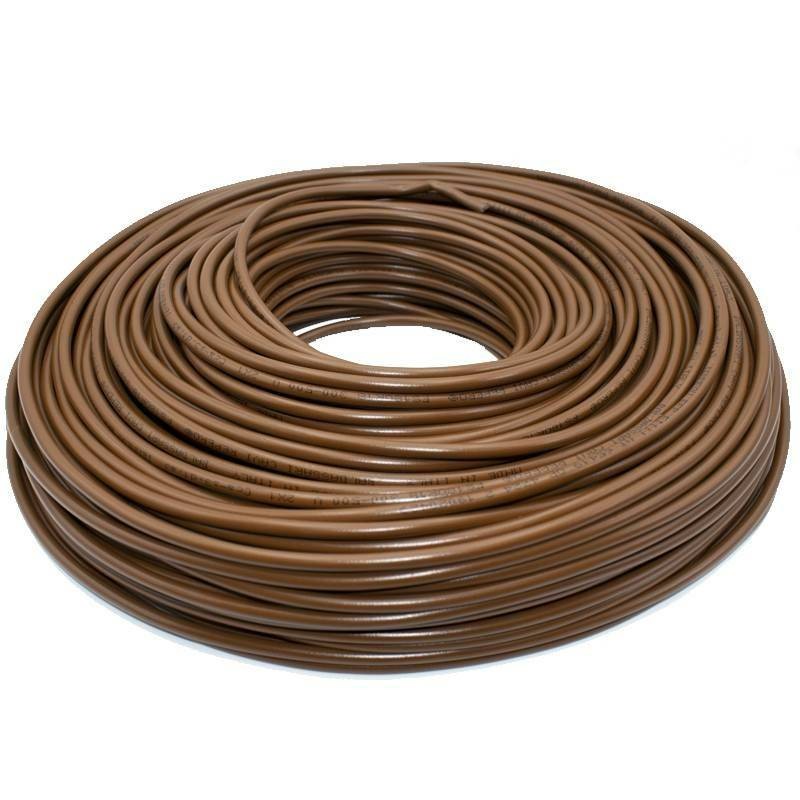

Energy, signaling, and control cable, insulated with S18-quality PVC under R18-quality PVC sheathing, with special fire reaction characteristics and meeting the Construction Products Regulation (CPR).

Characteristics:

• Conductor: Flexible annealed red copper cord, class 5
• Insulation: PVC compound of S18 quality
• Outer sheath: R18-quality PVC compound
• Sheath color: Brown
• Rated voltage Uo/U: 450/750V
• Maximum operating temperature: 70°C
• Minimum operating temperature: -15°C (in the absence of mechanical stress)
• Minimum installation temperature: 0°C
• Maximum short-circuit temperature: 160°C
• Maximum tensile stress: 50 N/mm2
• Minimum bending radius: 4 times the maximum outer diameter




Conditions of use: Suitable for fixed laying or temporary installation in places with fire hazards. For indoor use in dry or wet rooms.
