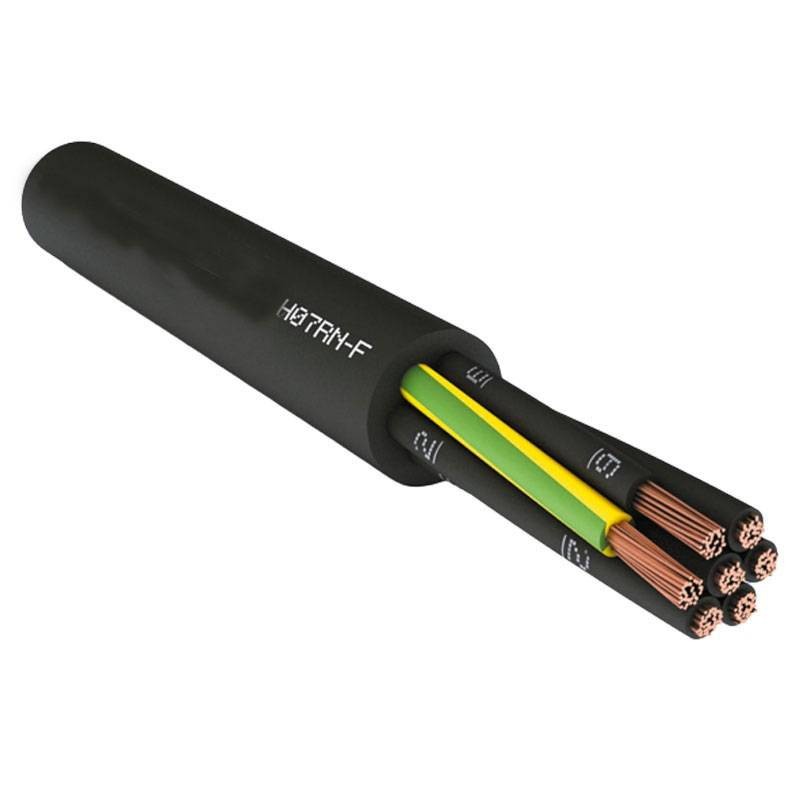

Polychloroprene Sheathed Cable H07RN-F 24G 1.5 mmq 450/750 V G/V Black

Brand: Cavi

Code: 9X9 H07RNF24G1,5 EAN:

H07RN-F sheathed cable is designed for industrial and agricultural applications, offering high flexibility, mechanical strength and excellent performance in harsh environments. Suitable for mobile and fixed laying, it is ideal for powering machinery and power tools, with the following characteristics:

Section: 24G 1.5 sq. mm
Conductor diameter: 1.5 mm
Insulation thickness: 0.8 mm
Sheath thickness: 3.5 mm
Maximum outer diameter: 30.7 mm
Capacity in air at 30 degrees: Mobile laying: 7A - Protected fixed laying: 12A

The selling price is intended per meter.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.

Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.

Polychloroprene Sheathed Cable H07RN-F 24G 1.5 mmq 450/750 V G/V Black

€9.38

€9.38
Tax included

Calculate shipping cost

Items Available: 112

: 101

Further availability of the manufacturer

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

H07RN-F 24G 1.5 mmq polychloroprene sheathed cable

Advantages of H07RN-F 24G 1.5 mmq cable

High flexibility: Ideal for mobile and stationary applications
Mechanical strength: Protection from abrasion, impact and crushing
Suitable for outdoor use: Resistant to weather and UV rays
High safety: Polychloroprene protective sheathing and high-quality rubber insulation
Wide applicability: Use in agricultural, industrial and residential environments

Ideal applications

Industrial and agricultural machinery
Power tools (drills, saws, hot plates)
Construction sites and temporary buildings
Installations in harsh environments: Dry, damp or wet

Technical Specifications of H07RN-F Cable

Feature	Value
Conductor diameter	1.5 mm
Insulation thickness	0.8 mm
Sheath thickness	3.5 mm
Maximum outer diameter	30.7 mm
Conductor	Flexible red copper, class 5
Insulation	EI4 quality rubber
Outer sheath	Black polychloroprene, strong and durable
Rated voltage	450/750 V AC (up to 1000 V in protected installation)
Weather resistance	Suitable for outdoor use, UV, oil and grease resistant
Operating temperature range	-40°C to +60°C (up to 200°C in short circuit)
Mechanical resistance	High resistance to abrasion, impact, crushing and tearing
Current carrying capacity	7A in mobile laying at 30°C 12A in fixed and protected laying at 30°C
Maximum electrical resistance	1.91 ?/km at 20°C
Voltage drop	30.7 V/A-km
Minimum bending radius	6x diameter (mobile laying) 4x diameter (fixed laying)
