Double Insulated Flameproof Cable FG16OR16 4x1.5mmq 0.6/1 kV Grey FG16R4X1.5M

Cavi
9X9 FG16R4X1,5M

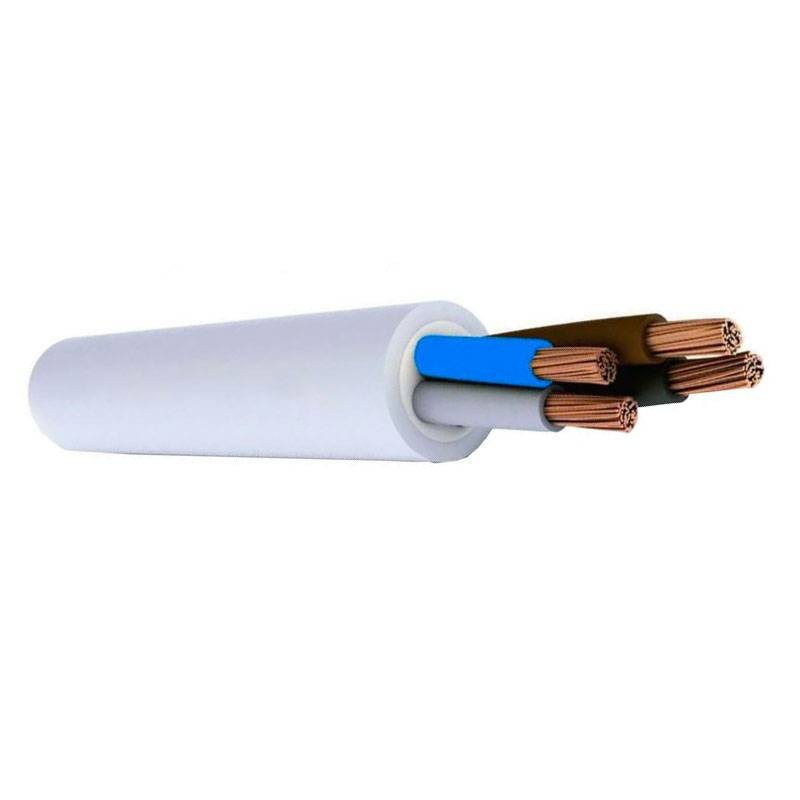

Double insulated flame-resistant FG16OR16 cable, designed to ensure safety and efficiency, ideal for indoor and outdoor electrical installations. With its PVC flame-retardant jacket and ethylene-propylene rubber insulation, it offers fire resistance and excellent electrical performance, with the following characteristics:

  • Section: 4x1.5 sq. mm

  • Conductor diameter: 1.6 mm

  • Insulation thickness: 0.7 mm

  • Sheath thickness: 1.8 mm

  • Outer diameter: 11.2 mm

  • Electrical resistance: 13.3 ohm/km

  • Current carrying capacity: 19.5A in air tube, 19A in buried tube

  • Rated voltage: 0.6/1 kV

  • Suitable for: Fixed laying in air, pipe or conduit and also for underground laying

The selling price is per meter.

Sold by 100-metre hank only.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
Do you have questions about this product or did you not find what you were looking for? Ask us!
Double Insulated Flameproof Cable FG16OR16 4x1.5mmq 0.6/1 kV Grey FG16R4X1.5M
€1.33
€1.33

The minimum purchase order quantity for the product is 100.

€1.33
Tax included
Calculate shipping cost
Items Available: 1200
Further availability of the manufacturer
€1.33

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Tuesday, 3 February
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

FG16OR16 cable: reliable, versatile and high-performance

CPR-certified reliability and safety

This multi-core cable complies with the Construction Products Regulation (CPR), ensuring reduced smoke emission and flame spread in case of fire.

Suitable for indoor and outdoor installations

Thanks to the AD7 degree of protection, it can be installed in wet environments, inside civil or industrial buildings and structures, offering versatility and high performance even in harsh conditions.

Excellent electrical performance

With a maximum electrical resistance of 13.3 ohm/km and a current carrying capacity of up to 19.5A in air tube, the cable ensures efficiency and reliability in all types of installations.

Technical Specifications FG16OR16 Flameproof Cable

Feature Value
Conductor Flexible annealed red copper cord, class 5
Insulator High-modulus ethylpropylene rubber compound of G16 quality
Filler Compound of nonhygroscopic material
Outer sheath PVC compound of R16 quality
Sheath color Gray
Rated voltage Uo/U 0.6/1 kV
Maximum operating temperature 90 degrees
Minimum operating temperature -15 degrees
Minimum laying temperature 0 degrees
Maximum short circuit temperature 250°C up to 240 mm², above 220°C
Maximum tensile stress 50 N/mm²
Minimum bending radius 4 times maximum outer diameter
Conductor diameter 1.6 mm
Insulation thickness 0.7 mm
Sheath thickness 1.8 mm
Outer diameter 11.2 mm
Max. electrical resistance at 20°C 13.3 ohm/km
Current flow rate in air tube 19,5 A
Current flow rate in buried pipe 19 A

There are no reviews

Data sheet

Colour:
Grey
Cross-Section:
1.5mmq
With yellow/green:
No
Number of cables:
4
