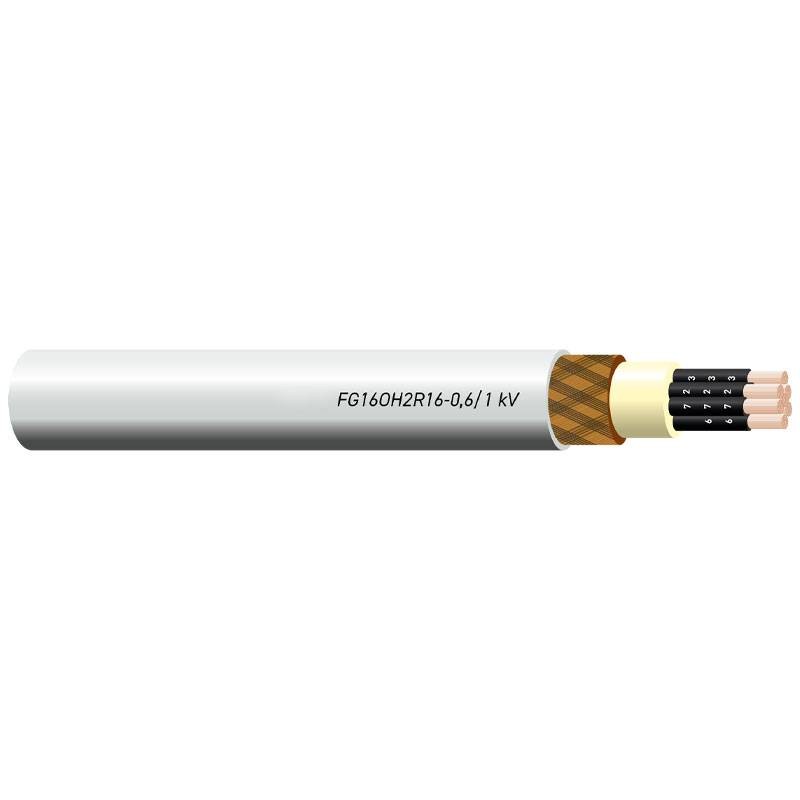

Multi-core shielded cable FG16OH2R16 7 x 1.5 sq. mm 0.6/1kV
9X9 FG16OH2R167X1,5
Multi-core shielded FG16OH2R16 7 x 1.5 sq mm cable with the following characteristics:
- Section: 7 x 1.5 sq. mm
- Outer diameter: 12.9 mm
- Conductor resistance: 13.30 Ohm/km
- Capacitance dc - cs: 110 - 200 pF/m
- Inductance: 0.9 L H/m
Sale by the meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Multi-core shielded cable FG16OH2R16 7 x 1.5 sq. mm 0.6/1kV
€3.07
€3.07
Tax included
Tax included
Pay in installments with Klarna
Items Available: 520
Features:
- Conductor: Flexible red copper, class 5
- Insulation: HEPR rubber-based compound, G16 quality
- Cordage: Twisted/concentrically corded cores
- Wrapping and protection: Polyester tape on the total
- Shielding: Red copper braid on the total
- Outer sheath: PVC-based compound, R16 quality
- Outer sheath color: gray
- Core operating voltage: 0.6/1kV
- Sheath operating voltage: 0.6/1kV
- Test voltage: 4000V
- Min. insulation resistance at 20°C > 200 M:xKm
- Operating temperature: -15/+90 degrees
- Maximum short circuit temperature: +250 degrees
Multi-core cable suitable for energy transport and transmission of signals and commands when protection from electromagnetic interference is required, both in industry and residential construction. Suitable for fixed laying indoors, even wet, and outdoors on catwalks, in pipes, conduits or the like. Direct or indirect underground laying permitted.
There are no reviews
Data sheet
- Colour:
- Grey
- Type:
- FG16OH2R16
- Cross-Section:
- 1.5mmq
- With yellow/green:
- No
- Number of cables:
- 7
