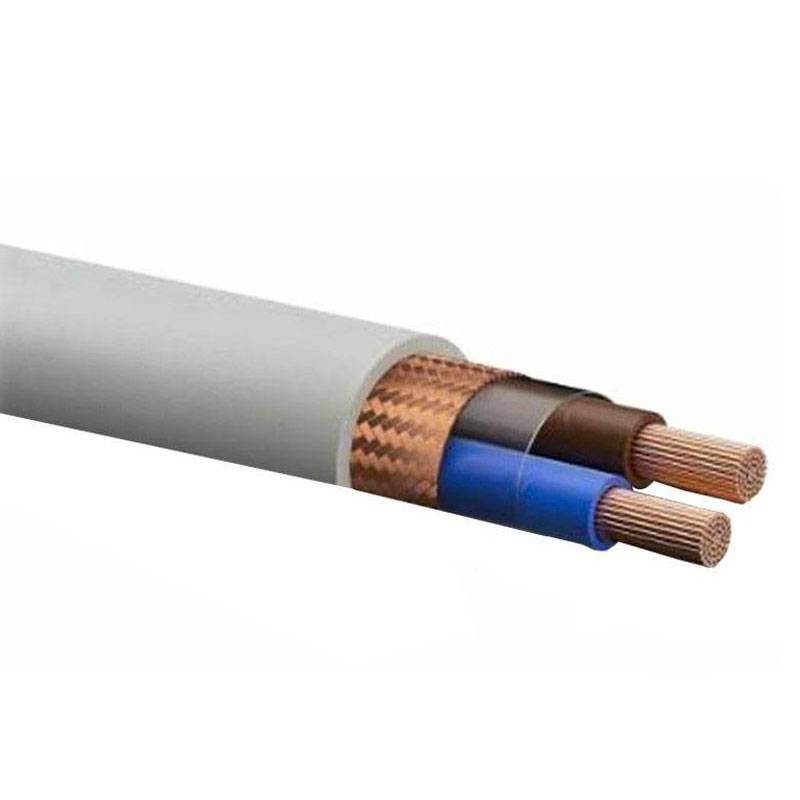

FG16OH2R16 2x4 mm2 shielded multi-core cable 0.6/1 kV grey
9X9 FG16OH2R162X4
FG16OH2R16 multi-core shielded cable, safety, shielding and flexibility for new generation electrical systems, with the following characteristics:
-
Section: 2x4 sq mm
-
Rated voltage: 0.6/1 kV
-
Conductor diameter: 2.5 mm
-
Insulation thickness: 0.7 mm
-
Sheath thickness: 1.8 mm
-
Sheath outer diameter: 13.1 mm
-
Electrical resistance: 4.95 /km
-
Current carrying capacity in air/tube: 40 A
-
Current carrying capacity in buried pipe: 39 A
Sale by the meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€2.37
Items Available: 1030
: 927
Two-year warranty
FG16OH2R16 shielded cable protection and reliability for power transmission
FG16OH2R16 2x4 sq mm 0.6/1 kV cable FG16OH2R16 is designed for applications where safety, shielding and durability are essential. With red copper braid shielding, the cable provides effective protection against electromagnetic interference, making it ideal for electrical installations in residential, tertiary and industrial environments.
Quality materials for high performance
The cable structure is based on flexible class 5 annealed red copper conductors, which ensure excellent electrical conductivity and good flexibility. G16 ethylpropylene rubber insulation, combined with a non-hygroscopic filler and an R16 PVC outer sheath, provides mechanical strength, thermal insulation and durability, even under harsh environmental conditions.
Versatile and CPR-compliant installation
With a voltage rating of 0.6/1 kV and a CPR rating of Cca-s3,d1,a3, the cable meets the reaction-to-fire requirements of the Construction Products Regulation, providing enhanced safety in the event of fire. It is suitable for fixed installation both indoors and outdoors, including in wet environments, on masonry, conduits, metal structures or underground, according to IEC 20-67.
Recommended applications.
The cable is ideal for:
-
Industrial and civil electrical installations
-
Wiring in environments where there is a risk of interference
-
Connections to electrical panels and power equipment
-
Installations in cable ducts, pipes, walls or in underground laying
-
Residential installations with shielding requirements
Technical Characteristics FG16OH2R16 Cable
| Section | 2 x 4 mm² |
| Rated voltage | 0.6 / 1 kV |
| Conductor | Annealed red copper, class 5 |
| Conductor diameter | 2.5 mm |
| Insulation | Ethylpropylene rubber G16 |
| Insulation thickness | 0.7 mm |
| Filler | Non-hygroscopic material |
| Screen | Red copper braid |
| Outer sheath | PVC type R16, color gray |
| Sheath thickness | 1.8 mm |
| Sheath outer diameter | 13.1 mm |
| Electrical resistance | 4.95 Ω/km |
| Current carrying capacity | 40 A (in air/pipe) |
| Maximum operating temperature | 90 °C |
| Maximum short-circuit temperature | 250 °C |
| Minimum laying temperature | 0 °C |
| Minimum operating temperature | -15 °C (without mechanical stress) |
| Maximum tensile stress | 50 N/mm² |
| Minimum bending radius | 8 × outer diameter |
| Fire reaction class (CPR) | Cca-s3, d1, a3 |
| Sale | By the meter |
There are no reviews
Data sheet
- Type: FG16OH2R16
- Cross-Section: 4mmq
- With yellow/green: No
- Number of cables: 2
