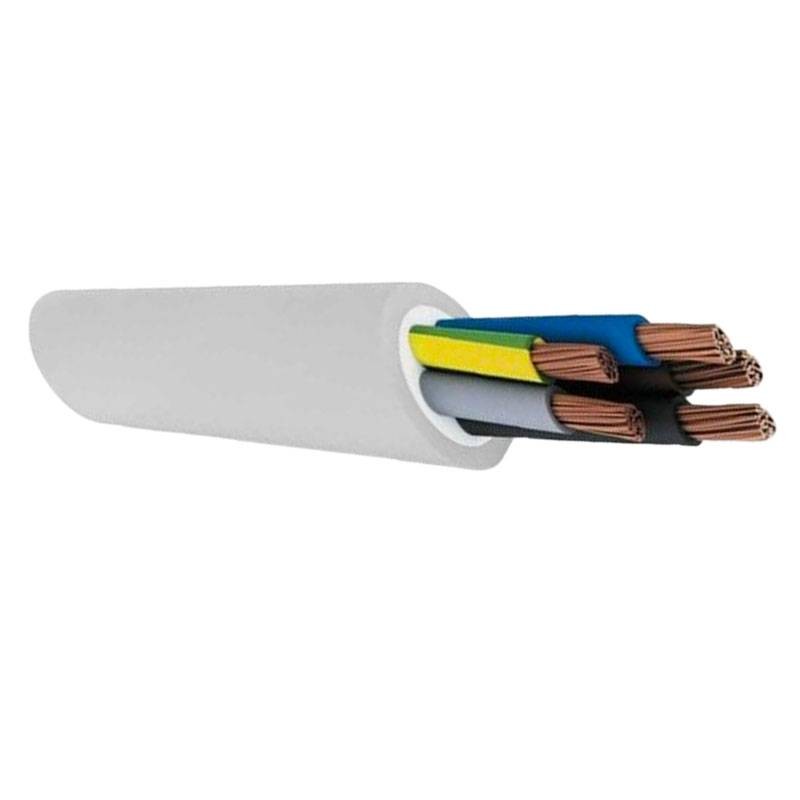

FG16OR16 Double Insulated Flameproof Cable 5G 4mmq Yellow Green FG16R5G4M

Cavi
9X9 FG16R5G4M

FG16OR16 flame-retardant double insulated cable, designed to ensure safety and high performance, ideal for industrial and civil electrical installations. Thanks to its flame-retardant sheathing and UV resistance, it is perfect for indoor and outdoor installations, even in humid and fire-risk environments, with the following characteristics:

  • Section: 5G 4 sq. mm

  • Conductor diameter: 2.5 mm

  • Insulation thickness: 0.7 mm

  • Sheath thickness: 1.8 mm

  • Outer diameter: 17.3 mm

  • Electrical resistance: 4.95 ohm/km

  • Current carrying capacity: 35A in tube in air - 42A in air

  • Rated voltage: 0.6/1 kV

  • Suitable for: Fixed laying in air, duct, pipe and underground installation

The selling price is per meter.

Sold by 100-metre hank only.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
Do you have questions about this product or did you not find what you were looking for? Ask us!
FG16OR16 Double Insulated Flameproof Cable 5G 4mmq Yellow Green FG16R5G4M
€4.00
€4.00

The minimum purchase order quantity for the product is 100.

€4.00
Tax included
Calculate shipping cost
Items Available: 2100
Further availability of the manufacturer
€4.00

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

FG16OR16 cable: reliable, versatile and high-performance

CPR-certified reliability and safety

Thanks to its composition, the cable limits the spread of flames and reduces the emission of toxic fumes, making it ideal for installations in fire-hazardous environments.

Suitable for indoor and outdoor installations

Thanks to its AD7 protection rating, it can be installed in wet environments, inside civil or industrial buildings and structures, offering versatility and high performance even in harsh conditions.

Excellent electrical performance

With a maximum electrical resistance of 4.95 ohm/km and a current carrying capacity of up to 35A in air tube, the cable ensures efficiency and reliability in all types of installations.

Technical Specifications FG16OR16 Flameproof Cable

Feature Value
Conductor Red copper, flexible formation, class 5
Insulation Rubber, G16 quality
Sheathing PVC, R16 quality
Color Gray
Rated voltage Uo/U 600/1000 V a.c. - 1500 V d.c.
Maximum voltage Um 1200 V a.c. - 1800 V d.c. also to earth
Industrial test voltage 4000 V
Maximum operating temperature 90°C
Minimum operating temperature -15°C
Maximum short circuit temperature 250°C
Minimum laying temperature 0°C
Recommended minimum bending radius 4 times the diameter of the cable
Maximum recommended tensile stress 50 N/mm² of copper cross section
Section 5G 4 mmq
Conductor diameter 2.5 mm
Insulation thickness 0.7 mm
Sheath thickness 1.8 mm
Outer diameter 17.3 mm
Electrical resistance 4.95 ohm/km
Current flow rate 42A in air, 35A in air tube
Rated voltage 0.6/1 kV

There are no reviews

Data sheet

Colour:
Grey
Cross-Section:
4mmq
With yellow/green:
Yes
Number of cables:
5
