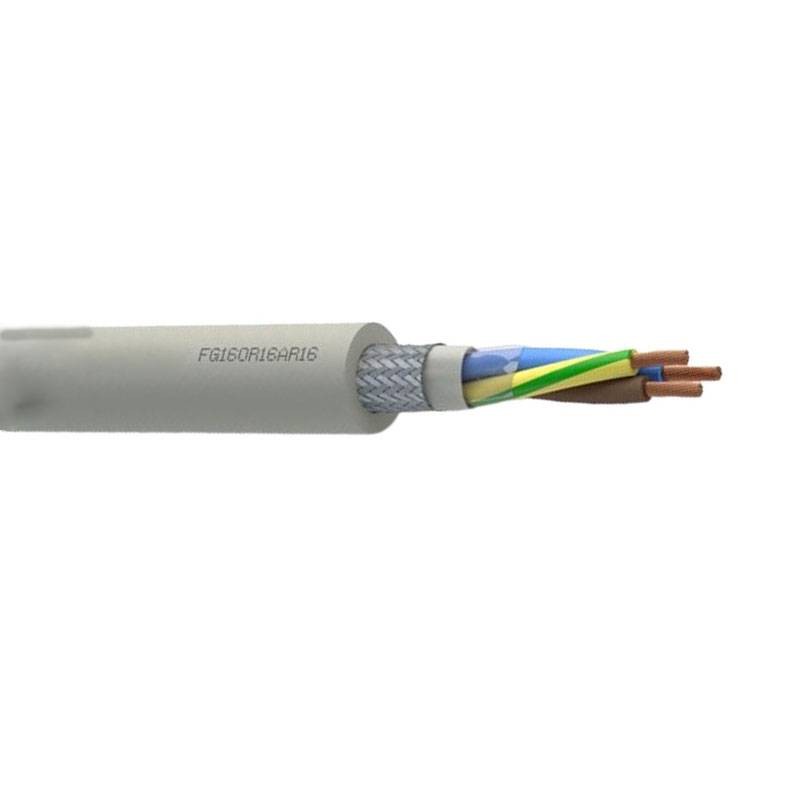

Double Insulated Flameproof Cable FG16OR16AR16 4G 4mmq 0.6/1kV
9X9 FG16OR16AR164G4
Double Insulated Fireproof Cable is designed to ensure maximum safety and reliability in electrical installations, limiting the production and spread of fire and smoke. Thanks to the galvanized steel braid armor, it offers high mechanical protection, making it ideal for industrial environments and heavy-duty applications, with the following characteristics:
-
Formation: 4G 4 mmq
-
Outer diameter: 15.5 mm
-
Conductor resistance: 4.95 Ohm/km
-
Operating voltage: 0.6/1kV, ideal for power, signaling and control
-
Conductor: Flexible red copper, class 5 for high conductivity
-
Protective armor: Galvanized steel braid for added strength
-
Versatile laying: Indoor, outdoor, on masonry, suspended and underground laying allowed
The selling price is intended per meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€4.86
Items Available: 232
: 209
Two-year warranty
FG16OR16AR16 flame-resistant cable: safety, durability and reliable performance
Maximum protection and certified safety
This cable is designed to meet the requirements of CPR EU Regulation 305/11, ensuring safe behavior in case of fire. HEPR rubber insulation ensures high temperature resistance and stable electrical performance.
Robustness and mechanical strength
Galvanized steel braid armor provides protection against shock, crushing and abrasion, making the cable ideal for installations in demanding industrial environments.
High performance for safe electrical installations
The cable supports an operating temperature range of -15°C to +90°C and withstands peaks of +250°C when short-circuited. R16 PVC outer jacket protects the cable from wear and tear, ensuring durability.
Suitable for a variety of installation methods
Due to its installation versatility, the cable is suitable for laying:
-
Inside buildings and humid environments
-
Outdoors, exposed to the elements
-
Fixed on masonry and metal structures
-
Suspended or buried, direct or indirect
Technical Specifications Cable FG16OR16AR16
| Feature | Value |
|---|---|
| Formation | 4G 4 mmq |
| Operating voltage | 0.6/1kV |
| Test voltage | 4000V |
| Outer diameter | 15.5 mm |
| Conductor resistance | 4.95 Ohm/km |
| Operating temperature | -15/+90 degrees |
| Maximum short-circuit temperature | +250 degrees |
| Conductor | Flexible red copper, class 5 |
| Insulation | HEPR rubber, G16 quality |
| Stranding | Twisted/corded cores with concentric crowns |
| Wrapping | Polyester tape on total |
| Intermediate sheathing | PVC R16 |
| Armor | Galvanized steel braid |
| Outer sheathing | PVC R16, color gray |
There are no reviews
Data sheet
- Colour: Grey
- Cross-Section: 4mmq
- With yellow/green: Yes
- Number of cables: 4
