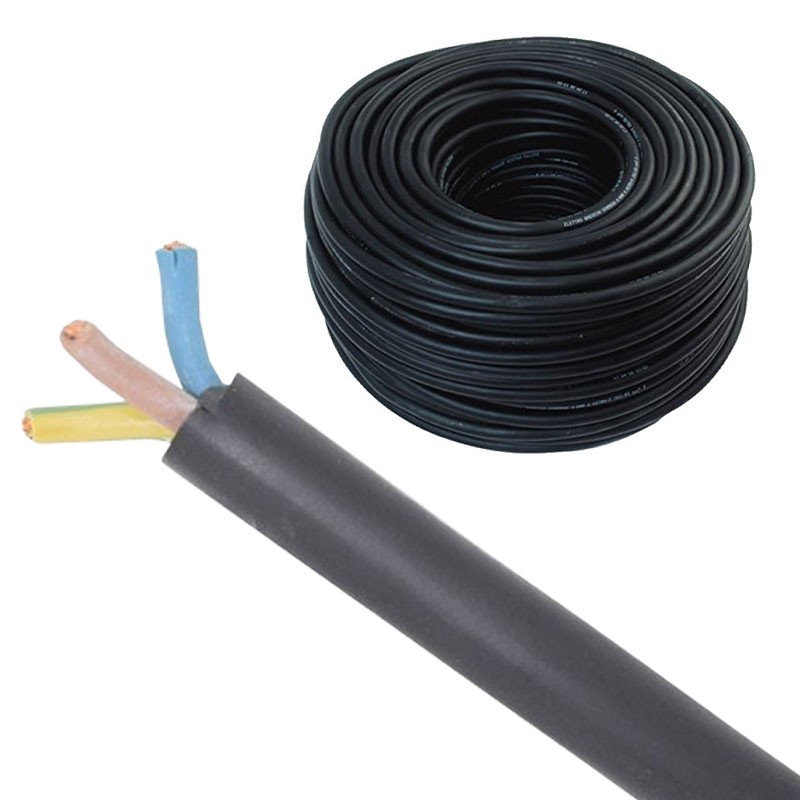

Cable Guainato of polychloroprene H07RN-F 3X1,5 JN the hank of 100 meters

SKU: 9X9 H07RNF3G1,5M EAN:

Cable H07RN-F 3X1,5 JN skein of 100 m diameter and 12.5 with Yellow-green, to use in local wet, in workshops or in the open air. That can be used for connections of equipment, industrial or agricultural, such as large kettles, heating plates, portable lamps, electrical tools, motors, and generators transportable.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

Request info about this product

Cable Guainato of polychloroprene H07RN-F 3X1,5 JN the hank of 100 meters

€1.13

€1.13
Tax included

Pay in installments with Klarna

Items Available: 5200

Further availability of the manufacturer

Two-year warranty

Secure Payment

Easy return within 14 days

Purchase with tax breaks

Description

H07RN-F 450/750 V cables for energy multipolar flexible, harmonized, rubber insulated with a sheath of polychloroprene (neoprene). Used for connections subject to medium mechanical stress. The main features are:

Non-propagation of flame;
Excellent flexibility;
Good resistance to mechanical stress;
Excellent resistance to mineral oils and industrial greases;
Water-resistant (AD6);
Good resistance to ozone and chemical agents.

Construction features

Conductor: bare Copper, flexible training, class 5.
Insulation: Rubber of quality EI4.
Stranding: The insulated conductors are twisted together.
Outer sheath: Polychloroprene or elastomer, equivalent, water-resistant (AD6), quality EM2.
Color: Black.

Normative reference

Construction and requirements: CEI 20-19/4 | HD 21.4
Try not to flame propagation: according to regulations CEI EN 60332-1-2
Low Voltage directive: 2006/95/EC
RoHS directive: 2011/65/EC.

Functional characteristics

Nominal voltage Uo/U: 450/750 V ac (600/1000 V c.c.)
Maximum operating Temperature: 60°C (up to 85° C for fixed installation and protected)
Minimum operating temperature: -40°C (without mechanical stress)
Maximum temperature of short-circuit: 200°C
Maximum drawbar pull (recommended): mobile Laying: 15 N/mm2 of the section of the copper; - fixed Installation: 50 N/mm2 of the section of the copper;
Minimum bending radius: mobile Laying: 6 times the cable diameter; - fixed Installation: 4 times the cable diameter.
Minimum temperature for laying: -25°C.

Conditions of use

H07RN-F 450/750 V cables are suitable for installation in rooms with dry, damp, or wet, in workshops with explosive atmosphere.

Suitable for connections subject to medium mechanical stress: for example, equipment of workshops, industrial or agricultural, large kettles, heating plates, or even portable lamps, electrical tools such as drills, circular saws, electric tools in the home. Can also be used for motors or generators, transportable in construction sites or agricultural installations. For fixed installations, for example on floors and shelves of the yards in temporary housing in barracks. The use is indicated also for connections of constructive elements of lifting devices, machinery, etc..
