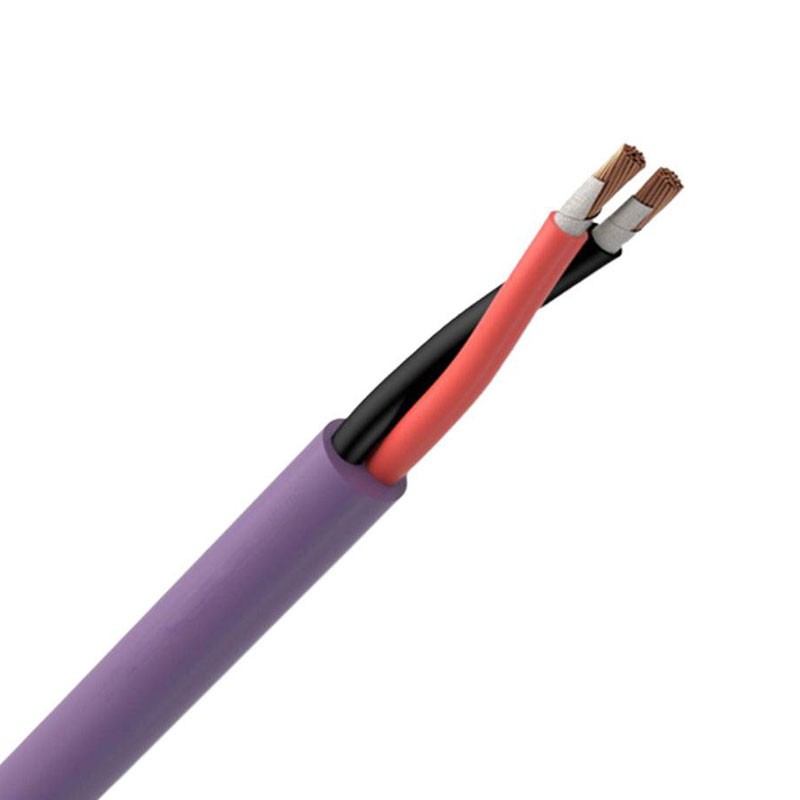

EVC PH120 cable FTS29OM16 2x1.5 mmq skein 100 meters RSV15002M100
EVC PH120 FTS29OM16 2x1.5 sq mm cable with the following characteristics:
- Outer diameter: 8.4 mm
- Maximum conductor resistance at 20°C: 13.30 Ohm/km
- Conductor: Flexible red copper, class 5
- Fire barrier: Glass/mica tape
- Insulation: Halogen-free thermoplastic compound S29
- Cordage: Twisted/corded cores with concentric crowns
- Outer sheathing: LSZH thermoplastic-based compound, M16 quality
- Core colors: Red and Black
- Outer sheath color: Purple (based on RAL 4005)
Selling price is intended per meter.
Minimum saleable quantity: hank of 100 meters.
EVC PH120 cable FTS29OM16 2x1.5 mmq skein 100 meters RSV15002M100
Tax included
Features:
- Core operating voltage: 100/100V
- Sheath operating voltage: 100/100V C-4(U0=400V)
- Test voltage: 2000V
- Minimum insulation resistance at 20°C > 100 M xKm
Cable complying with the requirements of the Construction Products Regulation (CPR EU 305/11), with the aim of limiting the production and spread of fire and smoke. LSZH cable for voice evacuation systems, fire resistant (PH120), in accordance with IEC 20-105 and UNI 9795:2013.
This cable, when used to supply category 0 systems (rated voltage less than or equal to 50V, if AC, or 120V, if DC or non-corrugated), can also be installed in coexistence with 450/750V or 0.6/1kV energy cables supplying loads having rated voltage 230/400V.
All this does not exclude possible problems due to possible electromagnetic interference. The cable, if stored/placed outdoors, must be UV protected. Underground laying, even if protected, is not allowed.
Data sheet
- Colour:
- Purple
- Diameter:
- 8,4mm
- Type:
- Fire-resistant Cables
- Cross-Section:
- 1.5mmq
- With yellow/green:
- No
- Number of cables:
- 2
