Usable for equipment connections of fixed automatic fire detection and manual fire alarm signaling systems, whether or not connected to extinguishing systems or another protection system (both active and passive types), intended to be installed in buildings, regardless of the intended use.



Suitable for connections of fire extinguishing systems and actuators (e.g., electric locks, natural smoke and heat evacuators, electromagnets for release of fire doors, etc.) with operating voltages between 12V and 24V AC.



This cable, when used to supply category 0 systems (rated voltage less than or equal to 50V, if AC, or 120V, if DC or non-corrugated), can also be installed in coexistence with 450/750V or 0.6/1kV energy cables supplying loads having rated voltage 230/400V.



The cable, if stored outdoors, must be protected from UV light. Underground laying, even if protected, is not allowed.

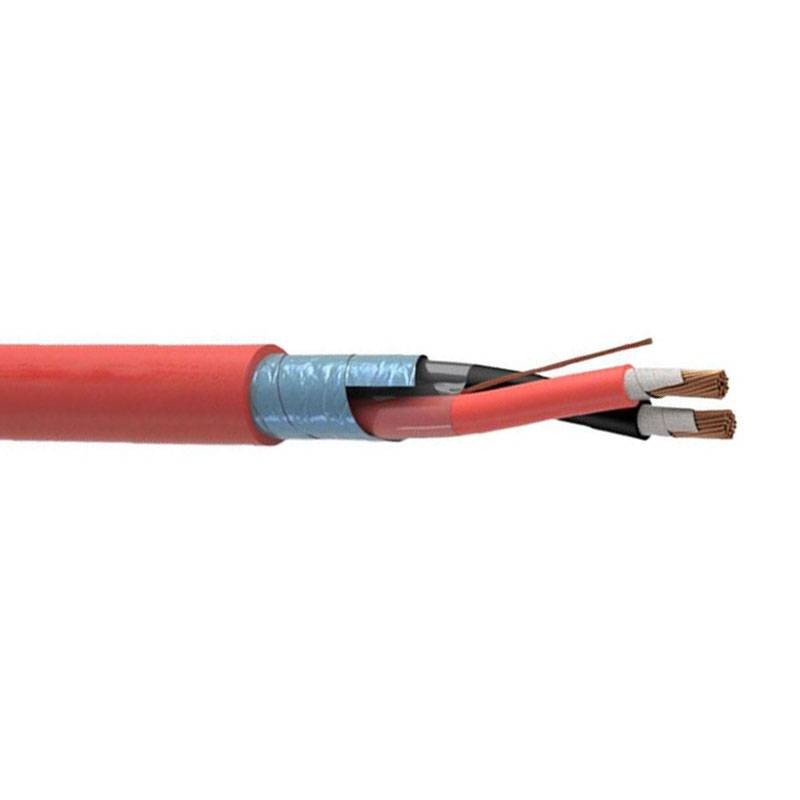

Characteristics:

• Insulation: Halogen-free cross-linked compound E29
• Cordage: Twisted/corded cores with concentric crowns
• Shielding: Aluminum/polyester tape on the total, with flexible red copper continuity conductor
• Outer sheath: LSZH compound based on thermoplastic material, M16 quality
• Core operating voltage: 100/100V
• Outer sheath operating voltage: 100/100V C-4(U0=400V)
• Test voltage: 2000V
• Operating temperature: -40/+90 degrees
