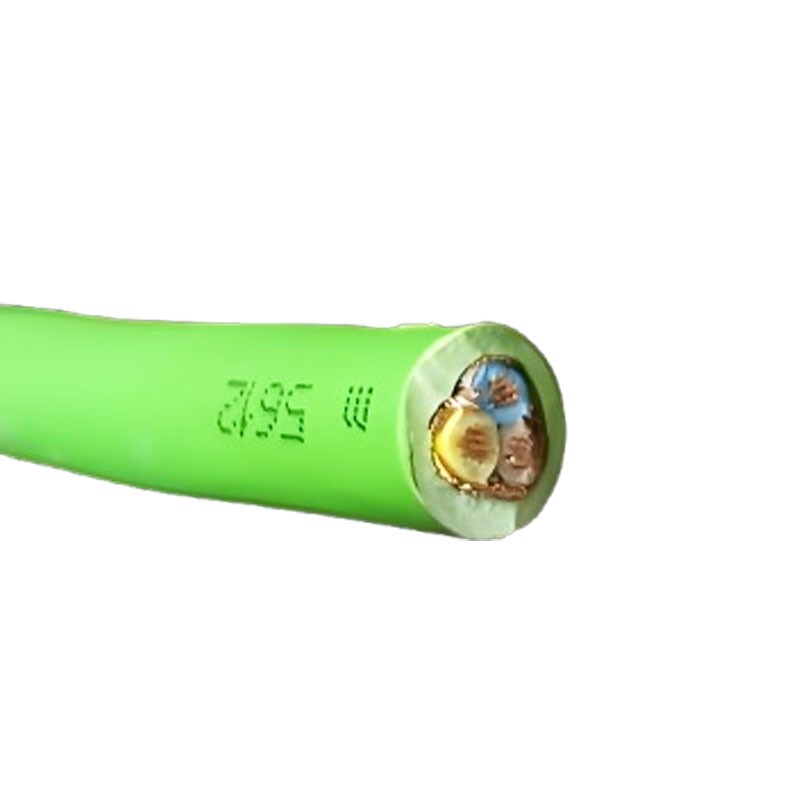

Elettrotek Kabel 3G2.5 GAALSHIP HF 1000 A Green 12051GE2031M25 Marine Armed Cable
EKB 12051GE2031M25
Elettrotek Kabel 3G2.5 GAALSHIP HF 1000A marine armored cable with the following characteristics:
- No. of cores x cross section nx mm2: 3 G 2.5
- Outer diameter approx.mm: min 9.7 Nom 10 Maximum 11
- Maximum resistance of conductors at 20°C (Ohm/km): 7.4
- Current rating in open air at 45°C (UN): 26
- Short circuit rating 1 second kA: 0.36
- Cable color: green
The selling price is intended per meter.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.

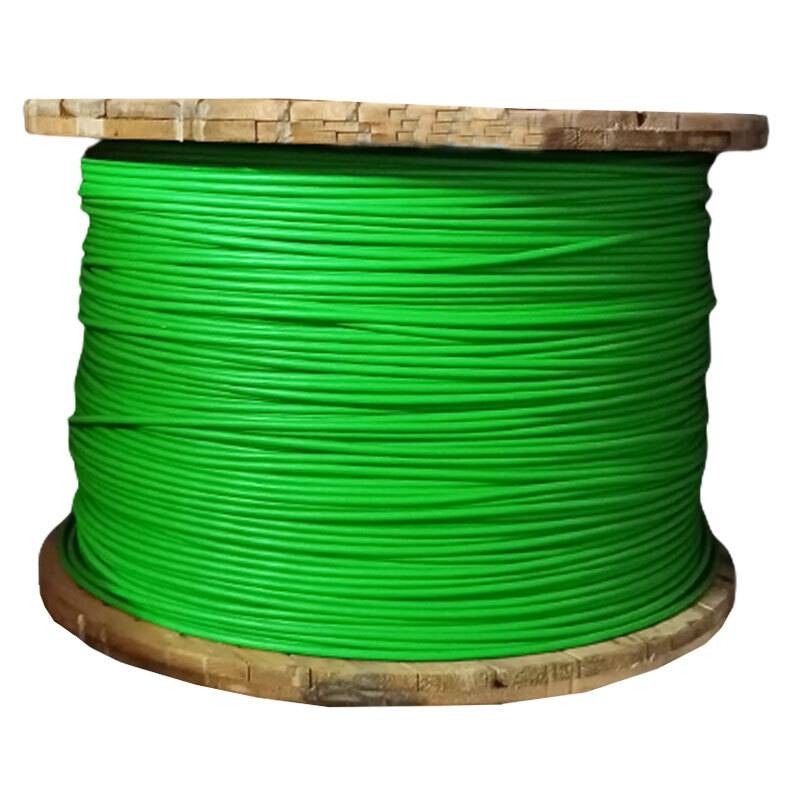

Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€3.23
Items Available: 968
: 872
Two-year warranty
Power and control cable for fixed electrical installations on board ships, not subject to mechanical hazard complying with IEC 60092-352.
Construction:
- Conductor: plain or tinned annealed copper conductor cl. 2 flexible up to 10 mm2 cl. 5 from 16 mm2
- Insulation: GAALTHERM® 595
- Armor: Plain or tinned annealed copper wire braid acc. to IEC 60092-350
Approvals/Certificates:
- RINA / RINAMIL (Italian Naval Registry)
- BV (Veritas Office)
- LR (Lloyd's Register)
- DNV-GL (Det Norske Veritas - Germanisher Lloyd) ongoing
- ABS (American Bureau of Shipping)
- RMRS (Russian Maritime Registry of Shipping)
Technical data:
- Rated voltage: Uo/U 0.6/1 kV
- Test voltage: 3.5 kV
- Temperature range: -40°C to +90°C
- Installation temperature: -5°C
Features:
- Sheath and insulation materials according to: IEC 60092-360
- Design guidelines acc. to IEC 60092-350/353
- Selection and installation of electrical cables acc. to IEC 60092-352
- Cold bending test at low temperatures
- Impact of cold bending at low temperatures
There are no reviews
Data sheet
- Colour: Green
- Cross-Section: 2.5 mmq
- Number of cables: 3
