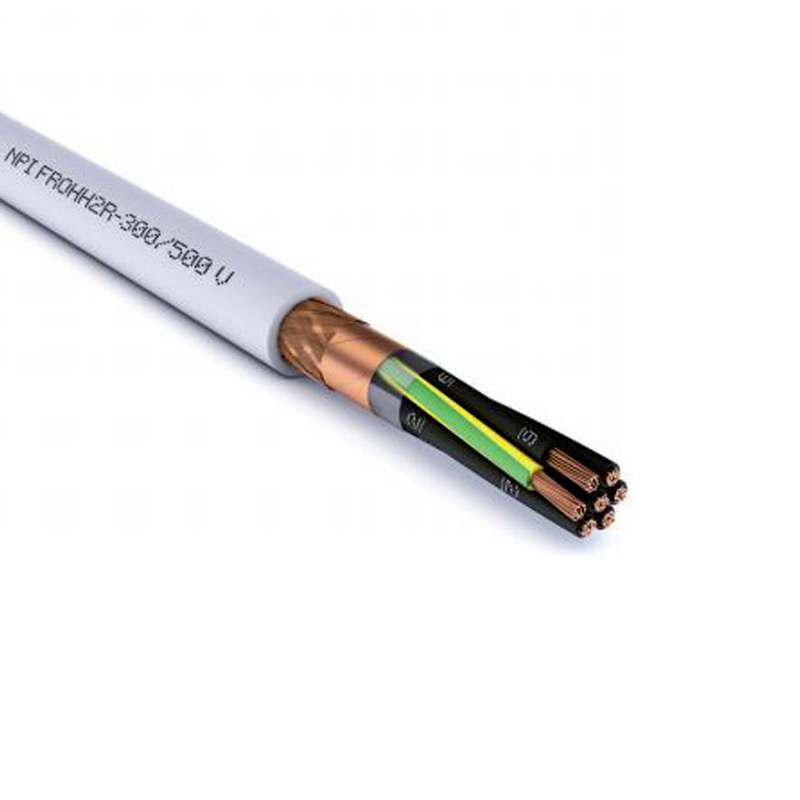

Fror Shielded Flameproof Cable FROHH2R 2x2.5mmq 450/750V Grey

Brand: Cavi

Code: 9X9 SMS0225HAAAL EAN:

FROR Shielded FROHH2R, flame-retardant, double-shielded, high security, FROR cable ideal for fixed installations in environments with fire risk and need for protection from electromagnetic interference, with the following characteristics:

Section: 2x2.5 sq. mm
Conductor diameter: 2 mm
Insulation thickness: 0.8 mm
Sheath thickness: 1.2 mm
Outer diameter: 12.4 mm
Rated voltage: 450/750 V
Installation: Indoor, temporarily outdoor, no underground laying

Sale by the meter.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.

Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.

Fror Shielded Flameproof Cable FROHH2R 2x2.5mmq 450/750V Grey

€2.44

€2.44
Tax included

Calculate shipping cost

Items Available: 1455

: 950

Further availability of the manufacturer

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

FROHH2R cable maximum protection from interference and flame propagation

The FROHH2R 2x2.5 sq. mm cable is designed to offer both electrostatic (thanks to the aluminum/polyester tape) and electromagnetic (thanks to the red copper braid) shielding, making it ideal for environments where high noise immunity is required.

Thanks to its flame-retardant PVC insulation and sheathing, it complies with fire safety regulations, making it particularly suitable for installations in high-traffic environments or in civil, commercial and public entertainment facilities.

Installation versatility and operational safety

Suitable for fixed installation inside gutters and pipes, even in humid environments. It can be temporarily used outdoors, but is not suitable for underground laying. Its construction characteristics allow it to be used reliably even in harsh conditions, with an operating temperature of -15°C to +70°C, and short-circuit resistance up to 160°C.

Technical Specifications Electric Cable FROHH2R

Parameter	Value
Conductor cross section	2x2.5 sq mm
Conductor diameter	2 mm
Insulation thickness	0.8 mm
Sheath thickness	1.2 mm
Outer diameter	12.4 mm
Rated voltage	450/750 V
Operating temperature	-15°C TO +70°C
Maximum short circuit temperature	160°C
Minimum bending radius	8 x outer diameter
Shielding	Aluminum/polyester + copper braid
Shielding impedance	≤ 100 mΩ/m (100 kHz-30 MHz)
Sheath color	Gray
Insulation/sheathing standards	TI2 / TM2
Length	Sold by linear meters
