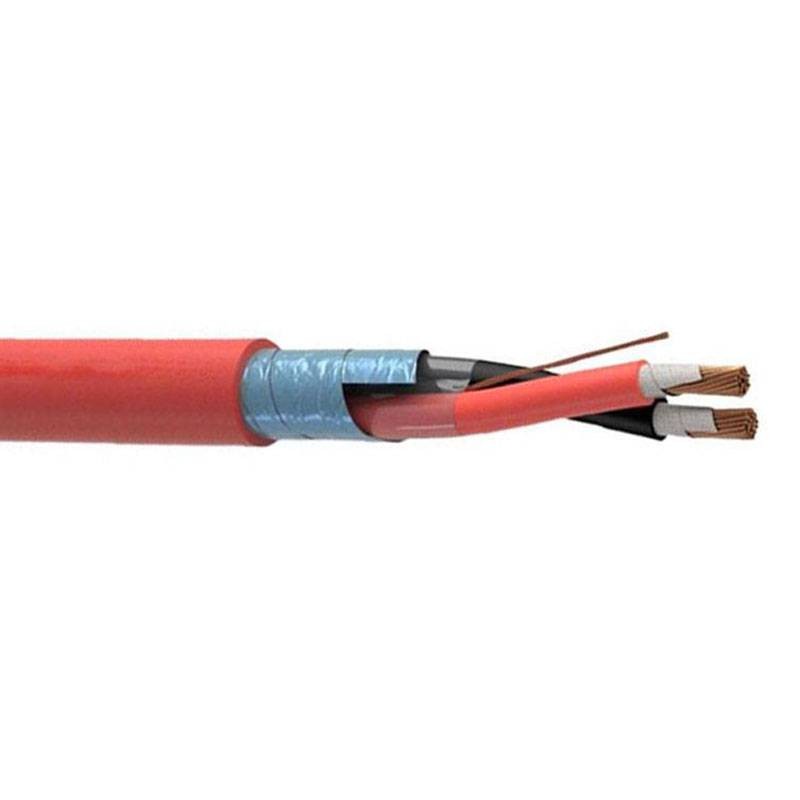

PH120 fire resistant cable FTE29OHM16 2x1 mmq red

Brand: Cavi

Code: 9X9 FTE29OHM16/2X1M EAN:

PH120 cable FTE29OHM16 is an advanced solution for connections in signaling and control systems, specifically designed for firefighting applications. With a shielded structure, it withstands high temperatures and ensures safe performance in critical environments such as firefighting installations, with the following characteristics:

Section: 2x1 sq. mm
Outer diameter: 7.8 mm
Operating voltage: 100/100V (C-4 U0 = 400V)
Conductor: Flexible red copper, class 5
Shielding: Aluminum/polyester tape with flexible red copper continuity conductor
Outer sheath: LSZH oil and hydrocarbon resistant, M16 quality
Maximum conductor resistance at 20°C: 19.5 Ohm/km

The selling price is intended per meter.

PH120 fire resistant cable FTE29OHM16 2x1 mmq red

€0.89

€0.89
Tax included

Calculate shipping cost

Items Available: 1900

: 1710

Further availability of the manufacturer

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Cable FTE29OHM16 secure connections for fire protection systems.

PH120 FTE29OHM16 2x1 sq. mm cable is designed for the secure connection of fire protection systems and related devices, such as electric locks, smoke and heat evacuators, and fire doors. Due to its robustness and advanced protection, it is ideal for installation in environments where safety is a top priority. The cable has shielding that offers excellent protection against electromagnetic interference, improving the reliability of fire detection systems.

Chemical and fire-resistant outer sheathing

The cable's outer sheath is made of chemical- and fire-resistant material, a feature that makes it suitable for use in industrial, residential, or commercial environments where high performance and protection are required. In addition, its LSZH (Low Smoke Zero Halogen) compound limits smoke production and flame spread, helping to reduce risks in case of fire.

Halogen-free insulation for enhanced safety

The cable insulation consists of a halogen-free cross-linked compound specifically designed to ensure low impact in the event of a fire. This feature makes it ideal for applications where protection against fire is essential, as it prevents the production of toxic and corrosive fumes. In addition, thanks to its resistance to high temperatures, the cable is perfect for environments with extreme thermal conditions.

Reliability and regulatory compliance

The cable complies with European safety and performance standards, such as the Construction Products Regulation (CPR EU 305/11) and other relevant regulations. This ensures that the cable is able to maintain high performance and safety even during emergency situations. Compliance with the certifications ensures that the cable can be used for sensitive applications, such as in fire alarm detection and signaling systems, in complete safety.

Technical Specifications PH120 Cable FTE29OHM16

Cable Structure

Conductor	Flexible red copper, class 5
Conductor Composition.	High conductivity and flexibility
Insulation	Halogen-free cross-linked compound E29
Shielding	Aluminum/polyester tape with flexible red copper continuity conductor
Outer sheathing	LSZH (Low Smoke Zero Halogen), resistant to fire, oils and hydrocarbons - M16 quality

Electrical Performance

Max conductor resistance (20°C)	19.5 Ω/km
Operating voltage	100/100V (C-4 _U0 = 400V)
Test voltage	2000 V
Insulation resistance	>100 MΩ×km at 20°C
