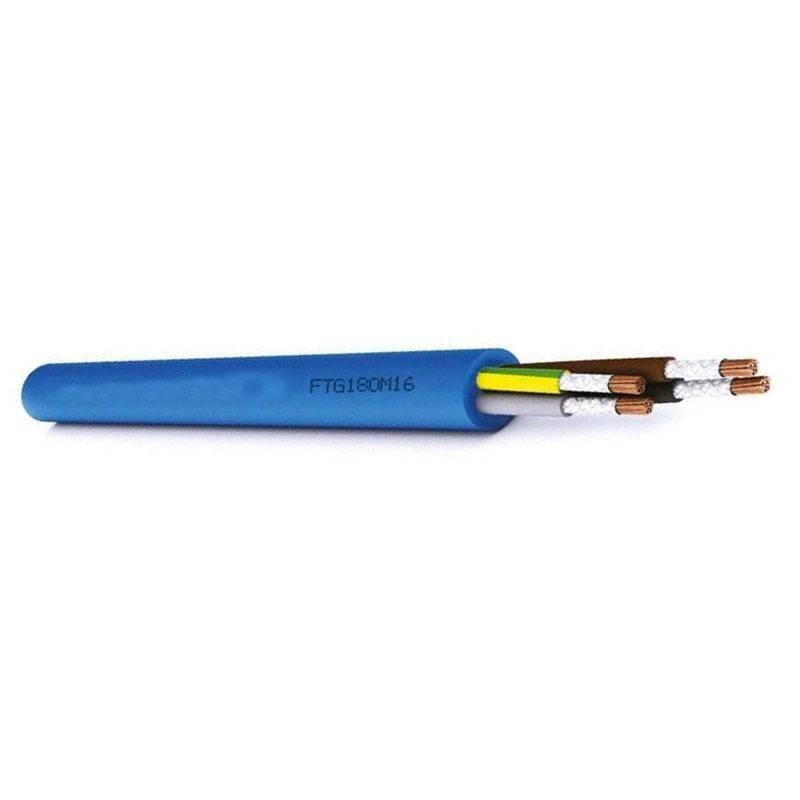

Flexible power cable FTG18OM16 5G10 mmq 0.6/1 kV G/V
9X9 FTG185G10
FTG18OM16 flexible cable, G18 rubber insulated, LS0H outer sheath M16 quality, PH120 fire resistant, halogen-free and low smoke emission. Ideal for emergency, security and firefighting systems, with the following characteristics:
-
Section: 5G10 sq mm (5 conductors + ground)
-
Rated voltage: 0.6/1 kV
-
Conductor diameter: 4 mm
-
Insulation thickness: 1 mm
-
Sheath thickness: 2 mm
-
Outer diameter: 22.1 mm
-
Electrical resistance (at 20°C): 1.91 Ohm/km
-
Current carrying capacity (in pipe): 60A
-
Current rating (in free air): 75A
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€12.44
Items Available: 2762
: 2405
Two-year warranty
FTG18OM16 cable designed for maximum fire safety
FTG18OM16 cable is designed to ensure continuity of service even under critical conditions, such as during a fire. Due to the combination of G18 rubber insulation, glass/mica tape and LS0H sheathing, it is suitable for emergency and signaling installations in high-risk environments.
Ideal for critical installations
Can be used in public environments and infrastructures such as tunnels, train stations, airports, subways, fire alarm and extinguishing systems, as well as for powering emergency lights and life-saving devices. Suitable for fixed installation, including unprotected underground, in wet environments and outdoors.
Recommended applications.
-
Fire and emergency systems
-
Automatic detection and extinguishing
-
Train stations and subways
-
Tunnels and airports
-
Shopping malls and hospitals
-
Evacuation and active security systems
Technical Specifications Cable FTG18OM16
Conductor and Insulation
| Conductor | Flexible red copper, class 5 |
|---|---|
| Conductor diameter | 4 mm |
| Tape | Glass/mica |
| Insulator | Rubber G18 |
| Insulation thickness | 1 mm |
Sheathing and Dimensions
| Outer sheathing | Thermoplastic LS0H M16 |
|---|---|
| Sheath thickness | 2 mm |
| Sheath color | Blue |
| Outer diameter | 22.1 mm |
Electrical and Installation Characteristics
| Rated voltage | 0.6/1 kV |
|---|---|
| Electrical resistance (at 20°C) | 1.91 Ω/km |
| Current carrying capacity (tube) | 60 A |
| Current carrying capacity (free air) | 75 A |
| Operating temperature | -15 °C TO +90 °C |
| Max short circuit temp (5 s) | 250 °C |
| Minimum bending radius | 14 × Outer Ø |
Standards and Certifications
| Standards | CEI 20-67, CEI EN 50267, HD 308 |
|---|---|
| Fire resistance | PH120 - F120 (120 min at 820 °C) |
Applications and Additional Features
| Environments of use. | Indoor, outdoor, damp, underground |
|---|---|
| Section | 5G10 mm² (5 conductors + ground) |
| LS0H sheath characteristics | Low smoke, toxic gas and zero halogen emission |
There are no reviews
Data sheet
- Colour: Blue
- Type: FTG18OM16
- Cross-Section: 10mmq
- With yellow/green: Yes
- Number of cables: 5
