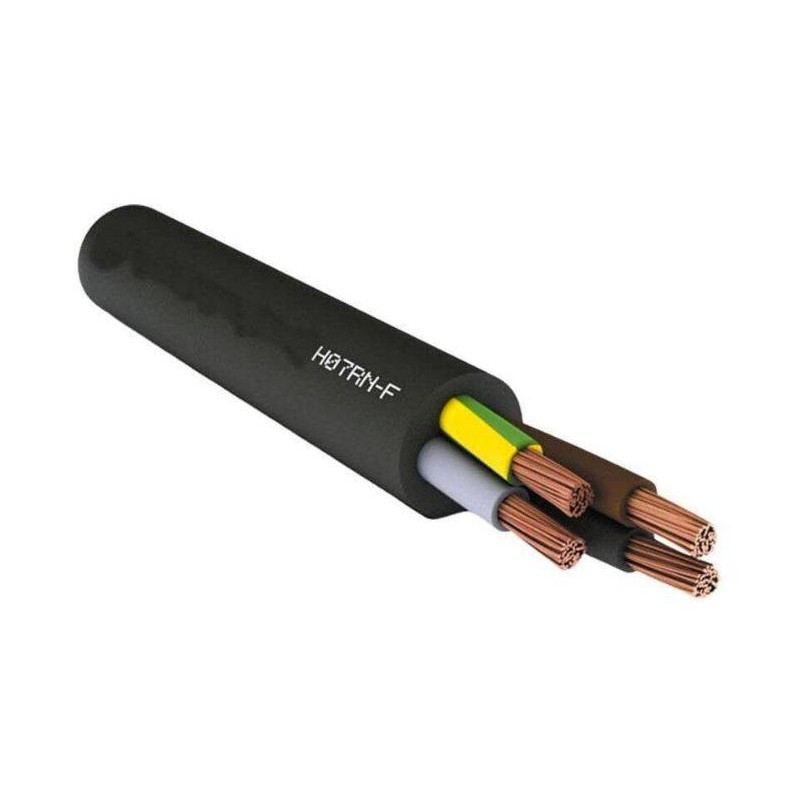

Polychloroprene Sheathed Cable H07RN-F 4G 10 mmq 450/750 V G/V Black

Cavi
9X9 H07RNF4G10

H07RN-F sheathed cable is designed for industrial and agricultural applications, offering high flexibility, mechanical strength and excellent performance in harsh environments. Suitable for mobile and fixed laying, it is ideal for powering machinery and power tools, with the following characteristics:

  • Section: 4G 10 sq. mm

  • Conductor diameter: 4 mm

  • Insulation thickness: 1.2 mm

  • Sheath thickness: 3.4 mm

  • Maximum outer diameter: 26.5 mm

  • Capacity in air at 30 degrees: Mobile laying: 52A - Protected fixed laying: 68A

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
Do you have questions about this product or did you not find what you were looking for? Ask us!
Polychloroprene Sheathed Cable H07RN-F 4G 10 mmq 450/750 V G/V Black
€7.41
€7.41

€7.41
Tax included
Calculate shipping cost
Items Available: 625
Further availability of the manufacturer
€7.41

Buy it within and receive it from Friday, 6 February
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

H07RN-F 4G 10 mm² Polychloroprene Sheathed Cable 450/750 V G/V Black

Advantages of H07RN-F 4G 10 mm² cable

  • High flexibility: Ideal for mobile and stationary applications

  • Mechanical strength: Protection from abrasion, impact and crushing

  • Suitable for outdoor use: Resistant to weather and UV rays

  • High safety: Polychloroprene protective sheathing and high-quality rubber insulation

  • Wide applicability: Use in agricultural, industrial and residential environments

Ideal applications

  • Industrial and agricultural machinery

  • Power tools (drills, saws, hot plates)

  • Construction sites and temporary buildings

  • Installations in harsh environments: Dry, damp or wet

Cable Specifications

Conductor diameter 4 mm
Insulation thickness 1.2 mm
Sheath thickness 3.4 mm
Maximum outer diameter 26.5 mm
Conductor Flexible red copper, class 5
Insulation EI4 quality rubber
Outer sheath Black-colored polychloroprene, strong and durable
Rated voltage 450/750 V AC (up to 1000 V in protected installation)
Weather resistance Suitable for outdoor use, resistant to UV rays, oils and greases
Operating temperature range -40°C to +60°C, up to 200°C in short circuit
Mechanical resistance High resistance to abrasion, impact, crushing and tearing
Current carrying capacity 52A in mobile laying at 30°C
68A in fixed and protected laying at 30°C
Maximum electrical resistance 1.91 Ω/km at 20°C
Voltage drop 3.87 V/A-km
Minimum bending radius 6x diameter (movable)
4x diameter (fixed)

There are no reviews

Data sheet

Colour:
Black
Diameter:
4mm
Cross-Section:
10mmq
With yellow/green:
Yes
Number of cables:
4
