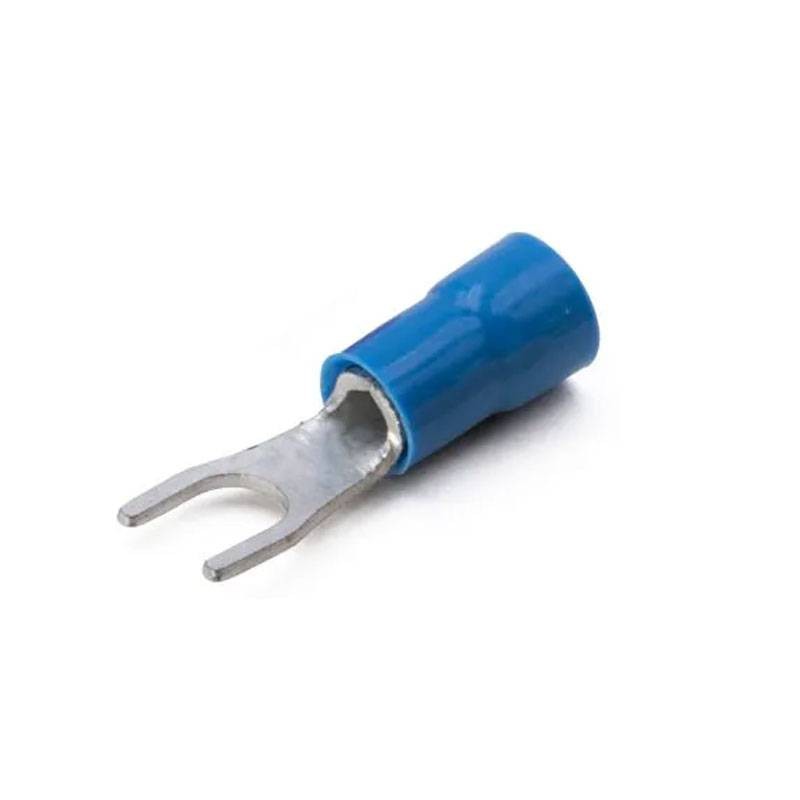

Cembre blue fork terminal lug M3.5 BF-U3.5
CEM BF-U3.5
8016692000954
Cembre BF-U3.5 blue M3.5 fork terminal lug: PVC pre-insulated, with radial compression and partial insulation for safe and quick connections.
-
Type: fork lug, PVC insulated (blue)
-
Screw hole: M3.5 For copper conductors
-
Cable cross-section range 1.5 to 2.5 mm²
-
Cable stripping: 4.6 mm
-
Internal knurling for better sealing
-
Operating temperature: -20 °C to +75 °C (90 °C for short periods).
Price is for single piece, sold by package of 100 pieces.
€0.08
Items Available: 600
Cembre fork terminal Quick and safe connections in low-voltage environments
The Cembre BF-U3.5 cable lug is an insulated fork terminal designed for quick and safe connection of copper conductors in low-voltage installations, automation, switchboards and civil installations. The M3.5 hole size makes it suitable for small standard screws and terminals, ensuring stable and reliable installation.
High quality construction for long service life
Made of annealed electrolytic copper of more than 99.9% purity, the lug is electrolytically tinned to improve its resistance to oxidation and weathering. Internal knurling of the collar provides a superior mechanical seal, improving the tensile strength and quality of the electrical connection.
Easy insertion and effective insulation
The PVC insulating jacket, blue in color according to standard coding, is designed with a funnel-shaped shaping that facilitates conductor insertion, prevents wire stripping, and reduces wiring time. Partial insulation protects the connection point without compromising the compactness of the installation.
Reliable performance under all conditions
Radial compression geometry ensures smooth and secure tightening, compatible with major crimping pliers and tools. The lug can operate over a wide temperature range, from -20 °C to +75 °C, with tolerance up to 90 °C for short periods, ensuring consistent performance even under severe operating conditions.
There are no reviews
Data sheet
- Diameter: 3mm
- Type: Terminal lugs
- Cross-Section: 2.5 mmq
