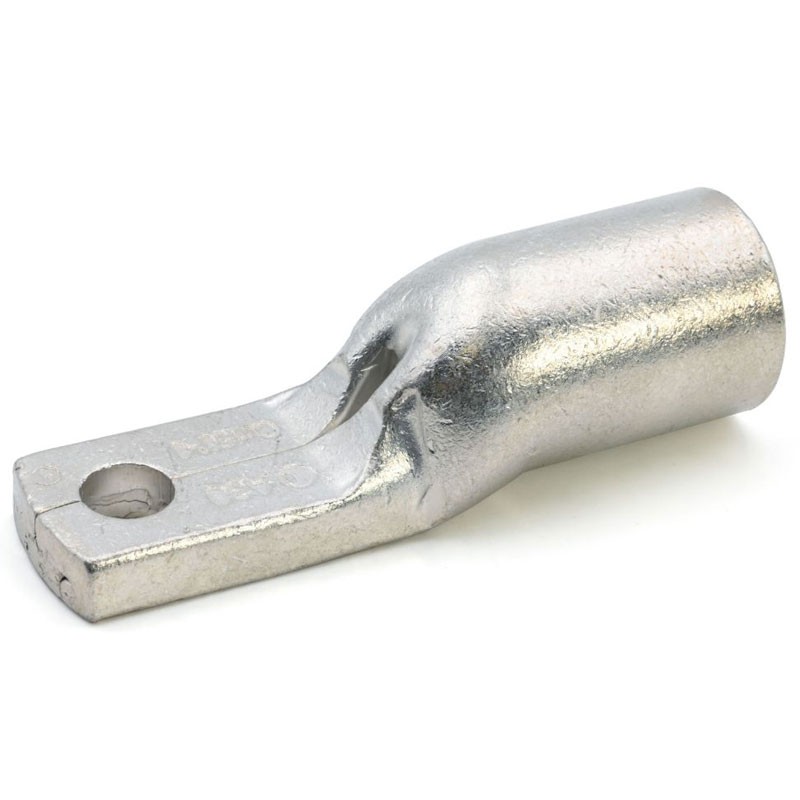

Cembre A48-M12/31 M12 terminal lug: content connection for LV circuit breakers, tinned copper and easy to install.

  • Cable cross-section: 240 mm² M12 screw hole

  • Contained attachment for LV circuit breaker terminals

  • Made of >99.9% pure electrolytic copper

  • Surface treatment: electrolytic tinning

  • Facilitated entry with inspection hole

  • Operating temperature: -50 °C to +150 °C.

  • Presence of inspection hole

Do you have questions about this product or did you not find what you were looking for? Ask us!
Cembre copper terminal lug M12 240mmq A48-M12/31
€12.60
€12.60

€12.60
Tax included
Calculate shipping cost
Items Available: 115
Further availability of the manufacturer
€12.60

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

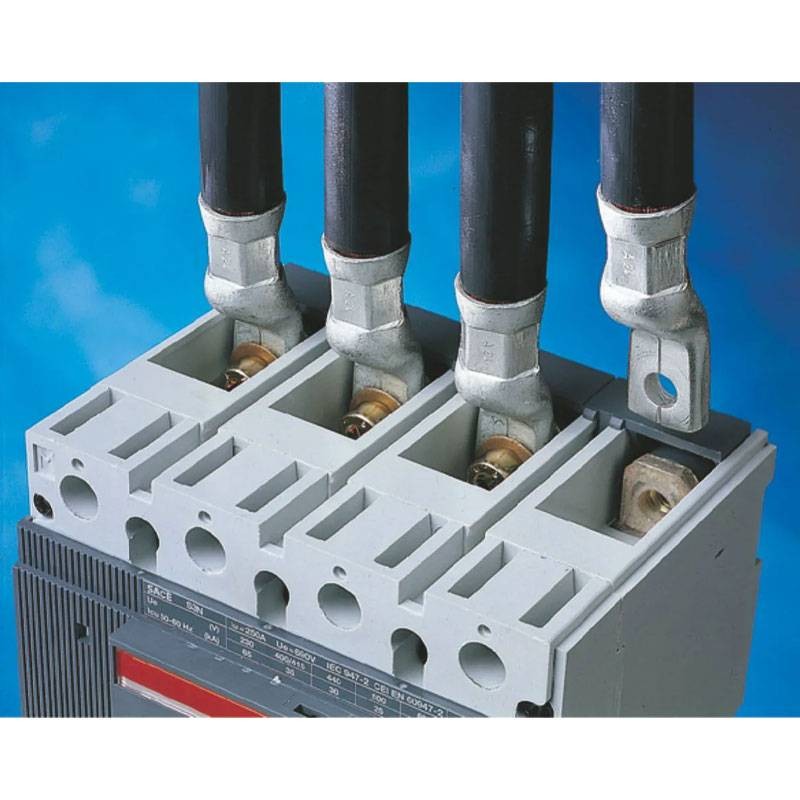

Cembre lug Safe and compact connection for LV switchgear

The Cembre A30B-M10/19 eyelet lug is designed for applications in low-voltage systems, with special reference to connection on circuit breakers equipped with space-saving terminals. Its small connection allows it to be inserted even in spaces where standard A-M series lugs do not find compatibility.

Maximum conductivity and reliability

Made from annealed electrolytic copper of more than 99.9% purity, the lug provides excellent conductivity and mechanical strength. Tin plating protects the terminal from oxidation, improving durability even in high humidity or contaminant environments.

Ease of wiring and installation

The chamfered collar and integrated inspection hole facilitate the insertion of flexible conductors, preventing wire stripping and ensuring more precise compression. The collar length is designed for perfect insertion into crimping tool dies, making installation fast and efficient.

Use in extreme environmental conditions

The lug can operate in a wide temperature range from -50 °C to +150 °C, making it suitable for installations exposed to major climatic variations, industrial environments, electrical substations and distribution boards.

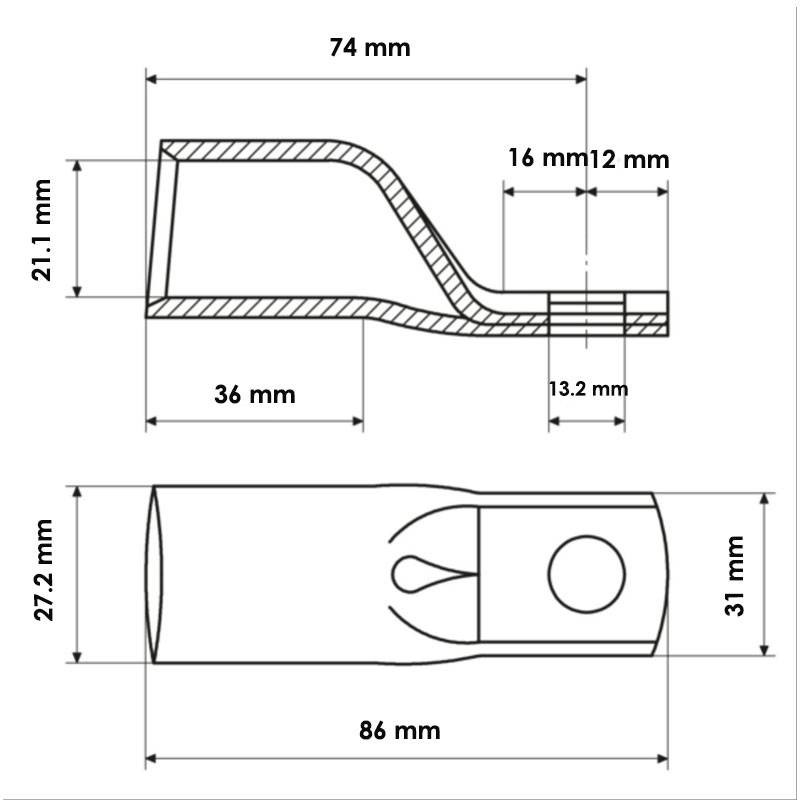

Feature Detail
Code A48-M12/31
Brand Cembre
Type Eyelet lug with contained attachment
Material Annealed electrolytic copper >99.9%
Treatment Electrolytic tinning
Conductor cross section 240 mm²
Screw hole M12
Applications LV circuit breakers, electrical panels, compact terminals
Operating temperature -50°C / +150°C
Facilitated entry Yes
Inspection hole Yes
Number of holes on the flap 1

There are no reviews

Data sheet

Diameter:
12mm
Type:
Terminal lugs
Cross-Section:
240mmq
