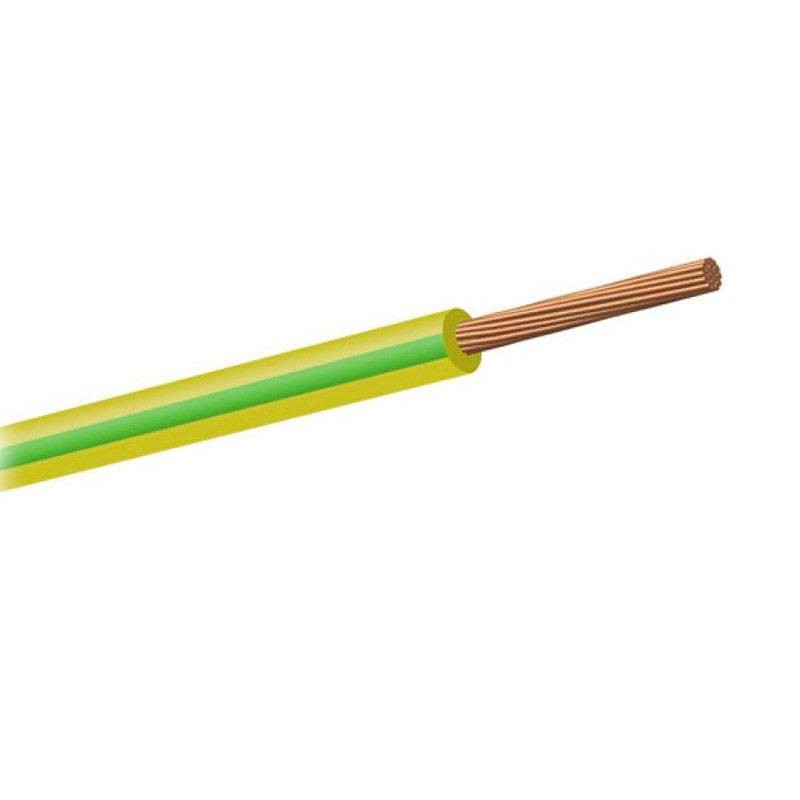

FG17 cable 1x240 mmq 450/750 V Yellow/Green
9X9 FG171X240GV
FG17 cable, safety, flexibility and performance for installations, ideal for indoor environments with high density of people and fire safety requirements, with the following characteristics:
-
Cross-section: 1x240 sq mm
-
Conductor diameter: 19.9 mm
-
Insulation thickness: 2.2 mm
-
Outer diameter: 25.2 mm
-
Electrical resistance at 20 degrees: 0.0801 ?/km
-
Air flow rate at 30 degrees: 490 A
-
Rated voltage: 450/750 V
-
Conductor: Flexible annealed red copper, class 5
-
Insulation: Elastomer LS0H quality G17
-
Color: Yellow/Green
The selling price is per meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€42.13
Items Available: 878
: 615
Two-year warranty
FG17 maximum safety cable with LS0H elastomeric compound.
Cable designed for enclosed power distribution where controlled fire reaction and reduced emission of smoke and toxic gases is required. LS0H elastomeric compound insulation of G17 quality makes it ideal for installations in schools, hospitals, cinemas, shopping malls and other public buildings.
High electrical and thermal performance
This cable is capable of working under demanding conditions, with a maximum operating temperature of 90°C and short-circuit resistance of up to 250°C. The flexible annealed red copper conductor, with a cross-section of 240 mm², allows a current carrying capacity of up to 490 A (at 30°C in air tube), with an electrical resistance of only 0.0801/km.
Versatility of installation in protected environments
Designed for fixed electrical installations inside exposed or recessed piping, lighting fixtures, switchboards, and control devices, it is not suitable for outdoor installation but excels in indoor environments with stringent safety requirements. In protected installations, it can operate up to 1000 V AC or 750 V DC to ground.
Construction and mechanical details
With a conductor diameter of 19.9 mm and a 2.2 mm thick insulation, the cable achieves an outer diameter of 25.2 mm while maintaining good handling during installation due to its flexible construction. The minimum bending radius is four times the outer diameter, ensuring compatibility with small installation spaces.
Technical Specifications Unipolar Cable FG17
Technical Specifications.
| Nominal cross-section | 1x240 sq. mm. |
| Rated voltage | 450/750 V |
| Conductor | Flexible annealed red copper, class 5 |
| Conductor diameter | 19.9 mm |
| Insulation | LS0H elastomeric compound G17 quality |
| Insulation thickness | 2.2 mm |
| Outer diameter | 25.2 mm |
| Insulating color | Yellow/green |
Electrical Performance
| Electrical resistance at 20°C | 0.0801 Ω/km |
| Air flow rate at 30°C | 490 A |
| Maximum tensile stress | 50 N/mm² |
Thermal Characteristics
| Operating temperature | -30°C to +90°C |
| Maximum short-circuit temperature | 250°C |
| Minimum laying temperature | -15°C |
Installation and Standards
| Minimum bending radius | 4 × Outer Ø |
| Flexibility | Excellent, ideal for laying in pipes and equipment |
| Fire resistance | Suitable for fire-hazardous environments |
| CPR Class | Cca-s1b,d1,a1 |
There are no reviews
Data sheet
- Colour: Yellow Green
- Cross-Section: 240mmq
- With yellow/green: No
- Number of cables: 1
