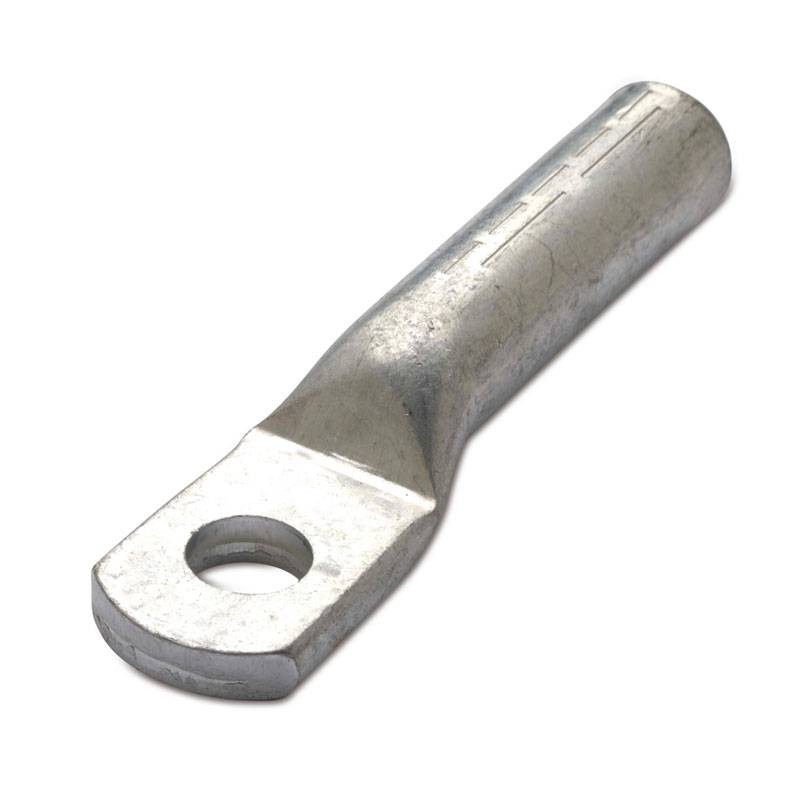

BM Aluminum Cable Terminal Lug for Conductors 240-300 sq. mm 76240
BMM 76240
8013629762404
Aluminum lug BM Italia for Conductors, complying with DIN 48201, with the following characteristics:
-
Material: Aluminum
-
Compatible with: 240 sq. mm non-compact aluminum conductors
-
Compatible with: 300 sq. mm compact conductors
-
Screw hole diameter: 12 mm compatible with 1/2 inch screws
€12.37
Items Available: 74
: 38
Reliable and durable cable lug for professional connections
The non-insulated aluminum conductor lug, conforming to DIN 48201, is a robust and efficient technical solution for reliable electrical connections in medium and high voltage installations. Made of 1050A aluminum alloy, this lug is designed to ensure maximum conductivity, mechanical strength and durability even in harsh environments.
Reliable performance for all types of installations
The lug is designed to ensure safe and stable connections in both indoor and outdoor environments. The use of technical grease in the conductor seat prevents oxide formation and ensures low contact resistance throughout the life of the installation.
High-purity aluminum alloy construction offers:
-
Excellent electrical conductivity
-
Resistance to corrosion
-
High compatibility with grid conductors and MV installations
Application versatility
This type of lug is commonly used in:
-
MV/LV distribution line wiring
-
Industrial switchboards
-
Transformer connections
-
Photovoltaic and distributed generation installations
-
Aluminum overhead and underground lines
There are no reviews
Data sheet
- Diameter: 12mm
- Type: Terminal lugs
- Cross-Section: 240-300 mmq
