Cembre copper terminal lug M6 70mmq A14B-M6/11.5
CEM A14B-M6/11.5
8016692155951

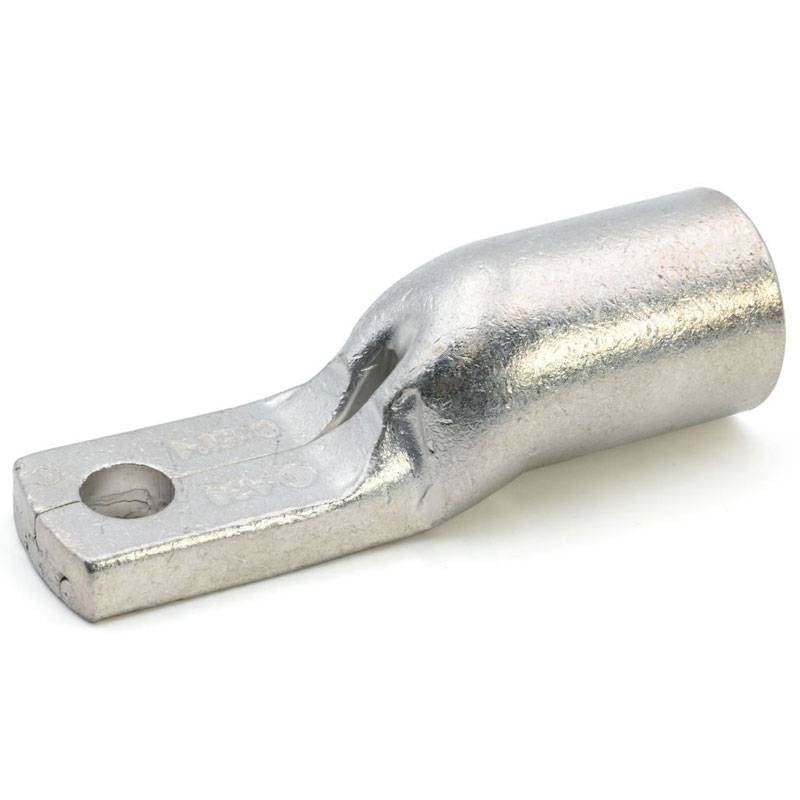

Cembre A14B-M6/11.5 70 M6 terminal lug: content connection for LV circuit breakers, tinned copper and easy to install.
-
Cable cross-section: 70 mm² Screw hole M6
-
Contained attachment for LV circuit breaker terminals
-
Made of >99.9% pure electrolytic copper
-
Surface treatment: electrolytic tinning
-
Facilitated entry with inspection hole
-
Operating temperature: -50 °C to +150 °C.
-
Without inspection hole
€2.26
Items Available: 145
: 46

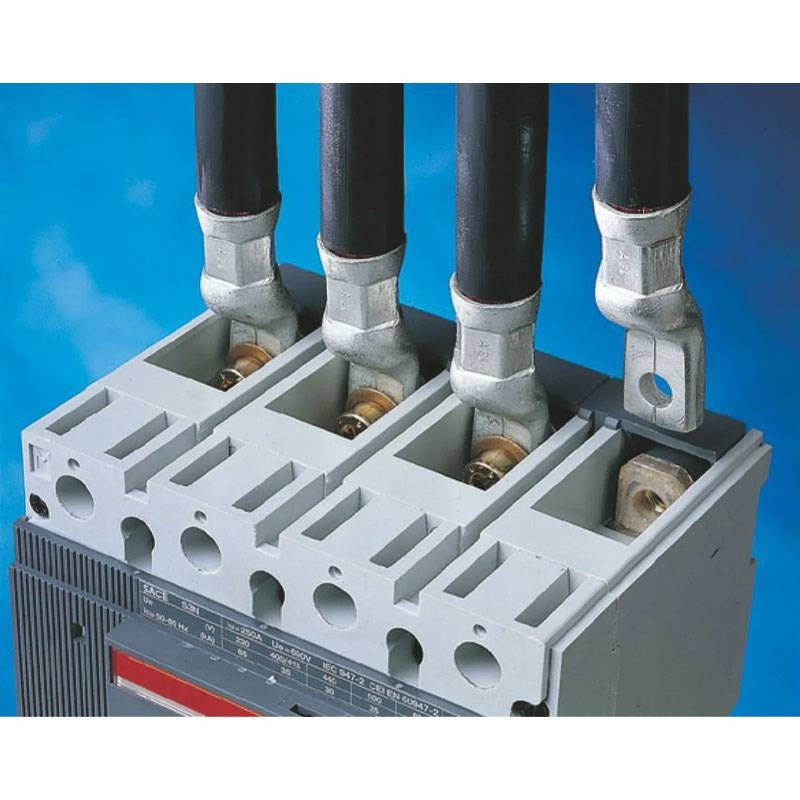

Cembre lug Safe and compact connection for LV switchgear
The Cembre A14B-M6/11.5 eyelet lug is designed for applications in low-voltage systems, with special reference to connection on circuit breakers equipped with small-space terminals. Its small connection allows insertion even in spaces where standard A-M series lugs do not find compatibility.
Maximum conductivity and reliability
Made from annealed electrolytic copper of more than 99.9% purity, the lug provides excellent conductivity and mechanical strength. Tin plating protects the terminal from oxidation, improving durability even in high humidity or contaminant environments.
Ease of wiring and installation
The chamfered collar and integrated inspection hole facilitate insertion of flexible conductors, preventing stretching of wires and ensuring more precise compression. The collar length is designed for perfect insertion into crimping tool dies, making installation fast and efficient.
Use in extreme environmental conditions
The lug can operate in a wide temperature range from -50 °C to +150 °C, making it suitable for installations exposed to major climatic variations, industrial environments, electrical substations and distribution boards.
| Feature | Detail |
|---|---|
| Code | A14B-M6/11.5 |
| Brand | Cembre |
| Type | Eyelet lug with contained attachment |
| Material | Annealed electrolytic copper >99.9% |
| Treatment | Electrolytic tinning |
| Conductor cross section | 70 mm² |
| Screw hole | M6 |
| Applications | LV circuit breakers, electrical panels, compact terminals |
| Operating temperature | -50°C / +150°C |
| Facilitated entry | Yes |
| Inspection hole | Yes |
| Number of holes on the flap | 1 |
There are no reviews
Data sheet
- Diameter: 6mm
- Type: Terminal lugs
- Cross-Section: 70mmq
