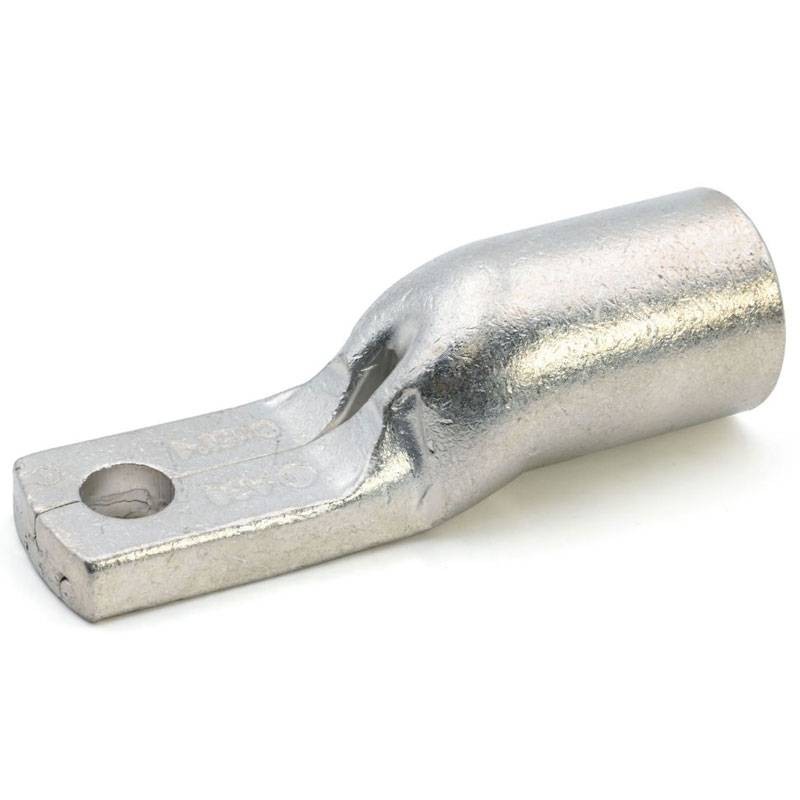

Cembre copper terminal lug M10 150mmq A30B-M10/19
CEM A30B-M10/19
8016692038988
Cembre A30B-M10/19 M10 cable lug: content connection for LV circuit breakers, tinned copper and easy to install.
-
Cable cross-section: 150 mm² Screw hole M10
-
Contained attachment for LV circuit breaker terminals
-
Made of >99.9% pure electrolytic copper
-
Surface treatment: electrolytic tinning
-
Facilitated entry with inspection hole
-
Operating temperature: -50 °C to +150 °C.
-
Without inspection hole
€8.10
Items Available: 84
: 3
Cembre lug Safe and compact connection for LV switchgear

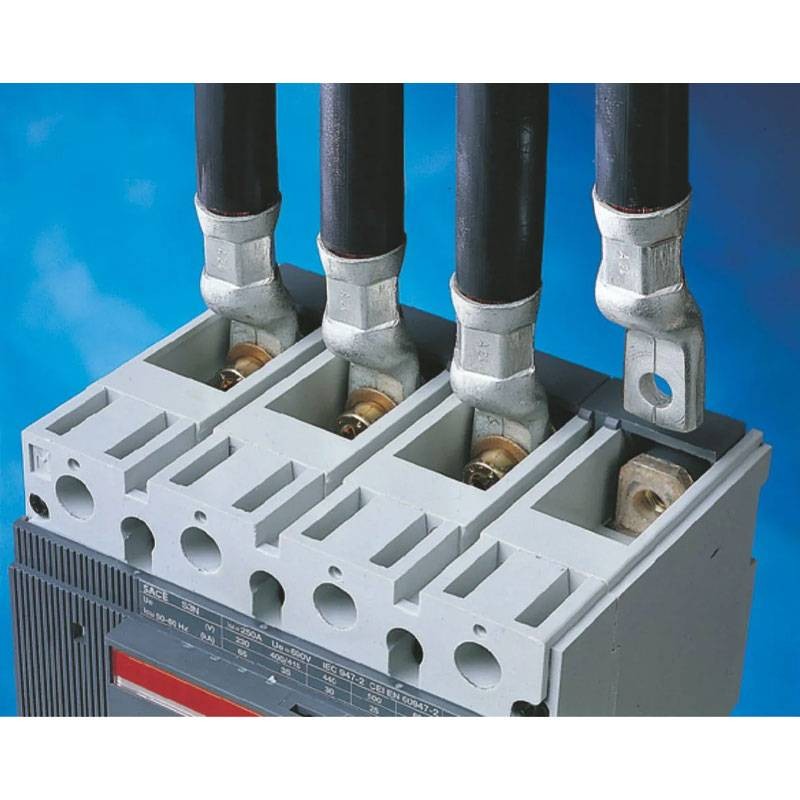

The Cembre A30B-M10/19 eyelet lug is designed for applications in low-voltage systems, with special reference to connection on circuit breakers equipped with space-saving terminals. Its small connection allows it to be inserted even in spaces where standard A-M series lugs do not find compatibility.
Maximum conductivity and reliability
Made from annealed electrolytic copper of more than 99.9% purity, the lug provides excellent conductivity and mechanical strength. Tin plating protects the terminal from oxidation, improving durability even in high humidity or contaminant environments.
Ease of wiring and installation
The chamfered collar and integrated inspection hole facilitate the insertion of flexible conductors, preventing wire stripping and ensuring more precise compression. The collar length is designed for perfect insertion into crimping tool dies, making installation fast and efficient.
Use in extreme environmental conditions
The lug can operate in a wide temperature range from -50 °C to +150 °C, making it suitable for installations exposed to major climatic variations, industrial environments, electrical substations and distribution boards.

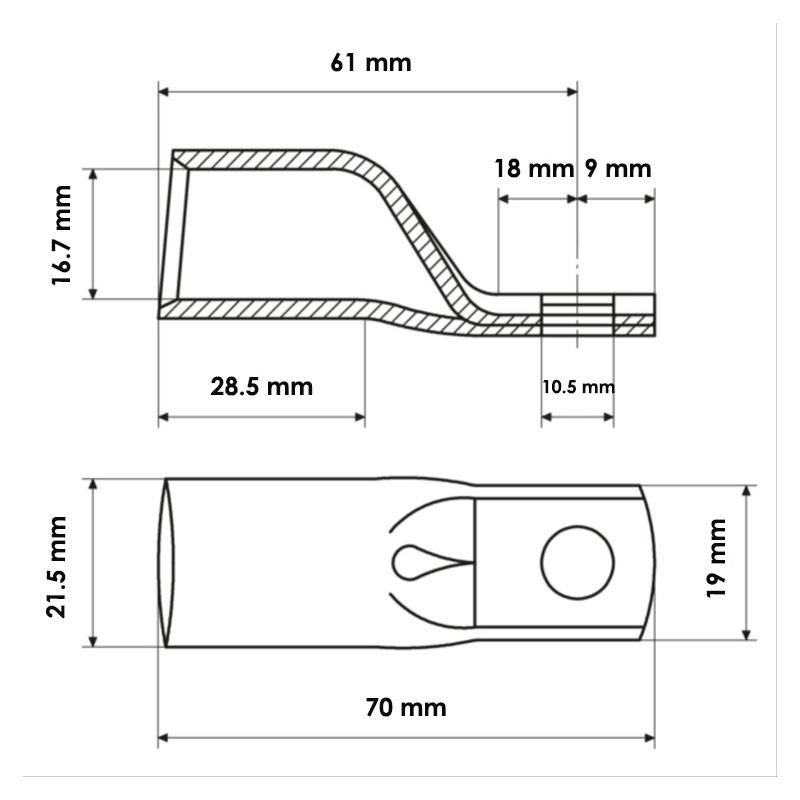

| Feature | Detail |
|---|---|
| Code | A30B-M10/19 |
| Brand | Cembre |
| Type | Eyelet lug with contained attachment |
| Material | Annealed electrolytic copper >99.9% |
| Treatment | Electrolytic tinning |
| Conductor cross section | 150 mm² |
| Screw hole | M10 |
| Applications | LV circuit breakers, electrical panels, compact terminals |
| Operating temperature | -50°C / +150°C |
| Facilitated entry | Yes |
| Inspection hole | Yes |
| Number of holes on the flap | 1 |
There are no reviews
Data sheet
- Diameter: 10mm
- Type: Terminal lugs
- Cross-Section: 150mmq
