Single-pole medium voltage cable ARE4H5E 1x150 sq. mm 12/20 kV
9X9 ARE4H5E150

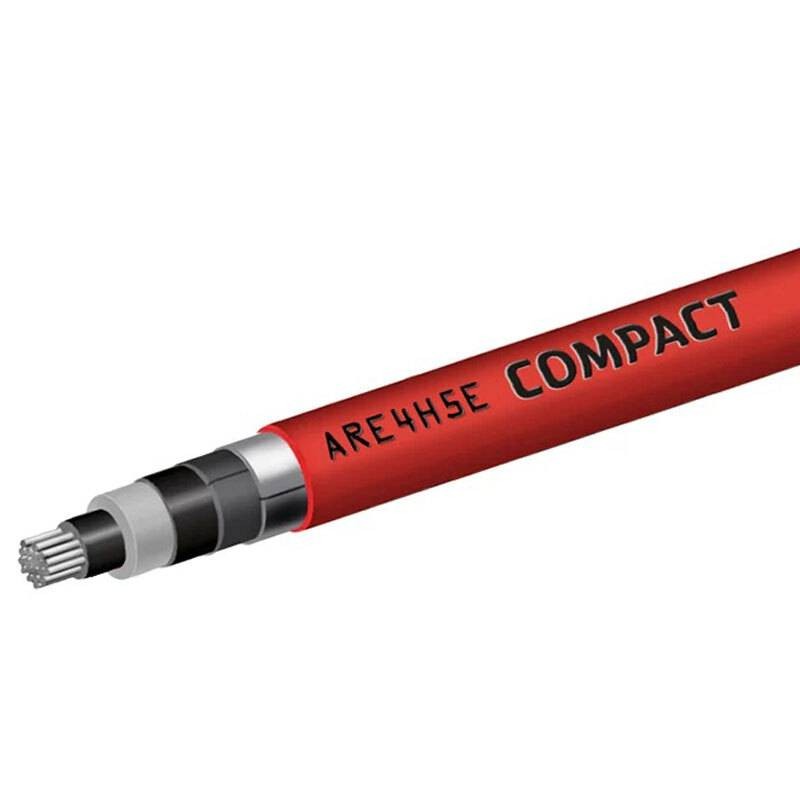

ARE4H5E single-core medium voltage cable with aluminum conductor, XLPE insulation 1x150 sq mm 12/20 kV with the following characteristics:
- Conductor diameter: 14 mm
- Diameter on insulation: 24.3 mm
- Outer diameter: 33 mm
- Minimum bending radius: 440 mm
- Color: Red
Applications: terrestrial and/or wind power.
The selling price is per meter.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€7.98
Items Available: 98
: 89
Two-year warranty
Features:
- Core: Compact round aluminum rope conductor
- Inner semiconductor: Extruded compound
- Insulation: Cross-linked polyethylene compound (DIX 8 quality)
- Outer semiconductive: Extruded compound
- Protective coating: Hygroexpanding semiconductor tape
- Shielding: Longitudinally wound aluminum cylinder tape (Rmax 3?/Km)
- Sheath: Polyethylene: red color (DMP quality 2)
- Rated voltage U0/U: 12/20 kV
- Max. operating temperature of the conductor: 90°C
- Max. short-circuit temperature of conductor: 250°C (max 5s)
- Max. short-circuit temperature of shield: 150°C
- Min. laying temperature: 25°C
- Max. tensile stress on conductor during installation: 50 N/mm2
The cable meets the requirements of HD 620 for insulation; for all other characteristics it meets the requirements of IEC 60502-2.
There are no reviews
Data sheet
- Cross-Section: 150mmq
- Number of cables: 1
