Multi-voltage joint Intercable aluminum cables 150 sq. mm GALMB150
INR GALMB150
8014212386731

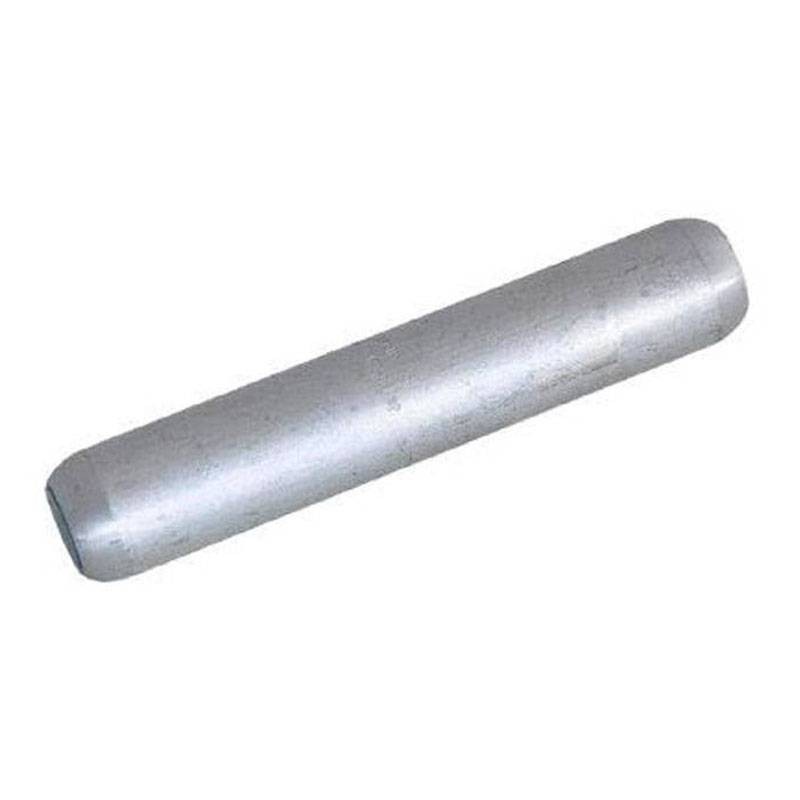

Intercable multi-voltage straight joint for aluminum cables with the following characteristics:
- Made of aluminum with a purity of not less than 99.5%.
- Suitable for low and medium voltage applications

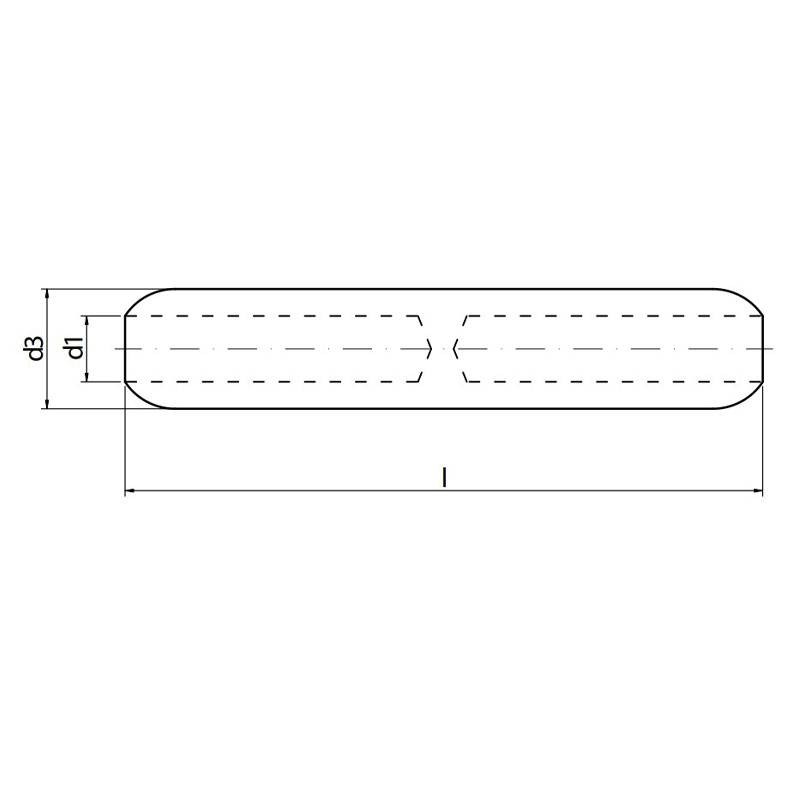

- Outer diameter: 25 mm - Inner diameter: 15.5 mm (d3-d1)
- Length 135 mm
For HPI130-H - API130-H - PP130-H tools.
€5.38
Items Available: 28
: 26
Features:
- Internal joint housings are filled with high-drop-point contact grease sealed with plastic cap
- Inlets are chamfered for easy conductor insertion
- Suitable for low and medium voltage applications
- 150MC1S Matrix
There are no reviews
Data sheet
- Type: Connections
- Cross-Section: 150mmq
