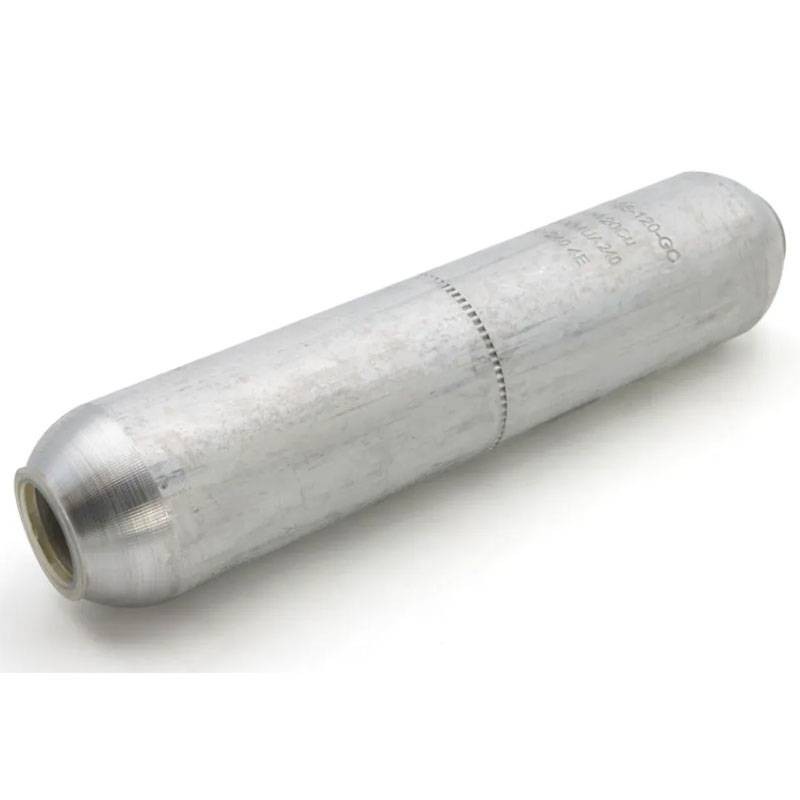

Cembre reducing connector for 240-150mmq cables MTMA240-150-GC
CEM MTMA240-150-GC
8016692045146
Cembre MULTITENSION reducing connector Blind for Aluminum or Copper Conductors 240-150 mm².
-

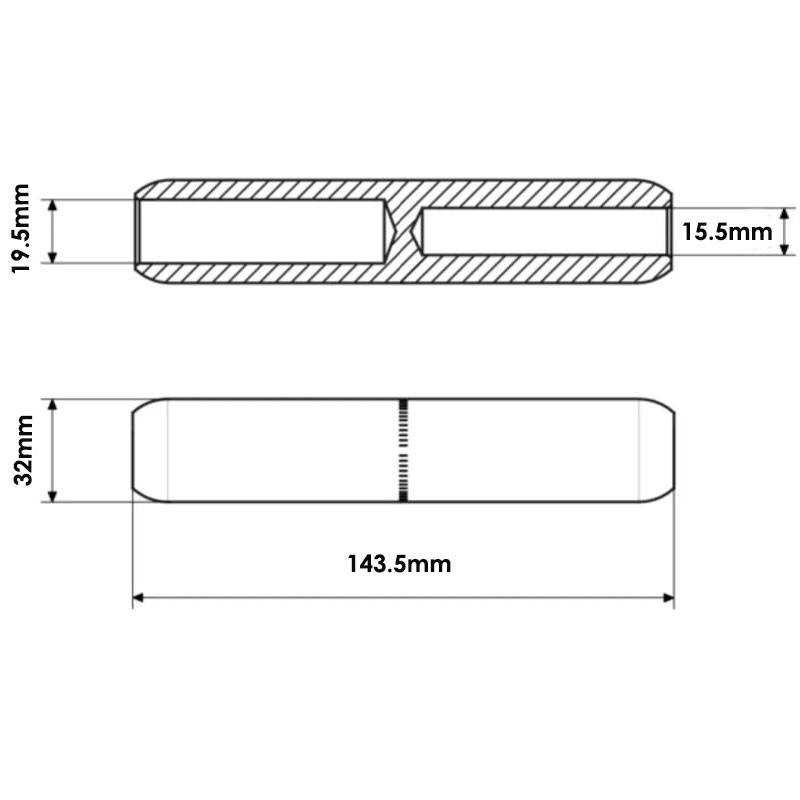

Major internal diameter of the barrel: 19.5 mm
-
Minor internal diameter of the barrel: 15.5 mm
-
Length of cable stripping: 77.8 mm
-
Operating temperature: -50 °C to 150 °C
-
Joint type: blind butt connector
-
Presence of central stop: yes, to facilitate cable insertion
-
Grease inside the barrel: yes, for protection against oxidation
-
Filler putty: yes, for sealing and additional protection
-
Compression geometry: deep notch for secure crimping.
€13.09
Items Available: 12
: 9
Cembre reducing connector: Reliability and Durability for Safe Joints
The Cembre MULTITENSION reducing connector is designed to ensure a safe and durable connection between aluminum or copper conductors with cross-sections from 240-150 mm². Made from pure aluminum round bar (over 99.5%), it is ideal for high-voltage applications and industrial splices in critical environments. The deep notch geometry provides uniform and stable compression, which ensures a perfect connection.
Innovative design with advanced protection
Featuring a center stop for easy cable insertion, the joint is designed with a chamfered body at the ends to prevent damage to conductors during assembly. The watertight diagram prevents mixture migration, protecting the joint when using solid-insulated cables. The inner surface is treated with a special high drop-point grease that protects the joint from oxidation, ensuring long-lasting performance even under heavy use.
Versatility and operational safety
With operating temperatures from -50 °C to 150 °C, this reduction joint is perfect for applications in extreme temperatures, making it ideal for industrial plants and wiring in critical environments. The filler grout system provides additional protection against moisture and contaminants, ensuring a secure connection that is resistant to mechanical stress.
There are no reviews
Data sheet
- Type: Connections
- Cross-Section: 240-150mmq
