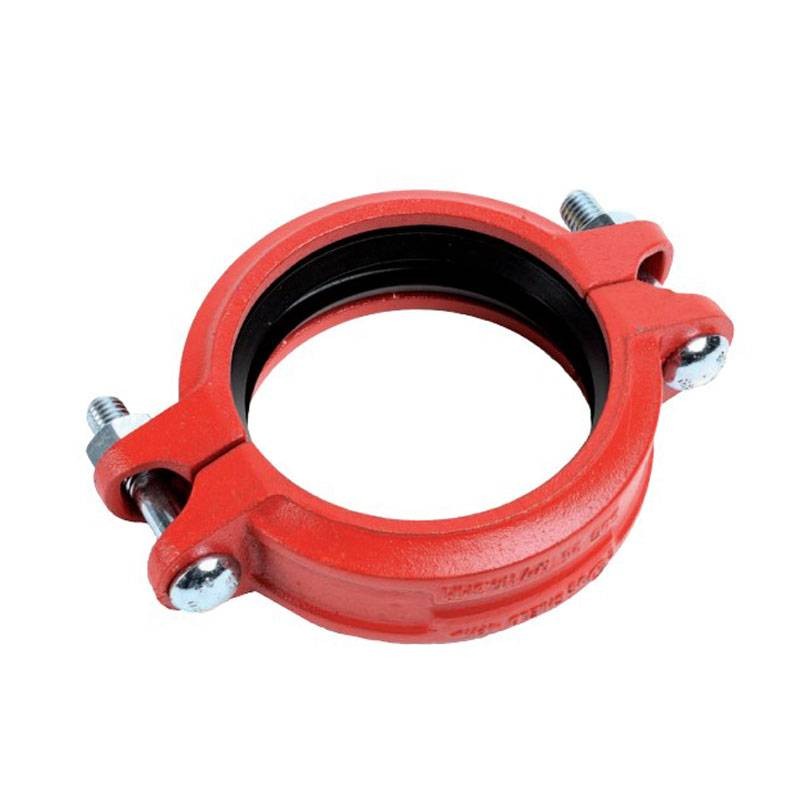

Ziggiotto rigid grooved joint 2 inches 50mm PN500 B001G060
914 B001G060
Ziggiotto Rigid Grooved Joint is the ideal solution for safe and flex-free joints in high-pressure hydraulic systems. Equipped with EPDM gaskets and offers a strong and durable seal, even under varying thermal conditions, with the following features:
-
Nominal diameter: 2 inches-50 mm
-
Pipe outer diameter: 60.3 mm
-
Maximum pressure: PN500
-
Hardware included: M10x55
-
Certifications: UL / FM for fire protection systems
€5.71
Items Available: 11
: 10
Rigid joint for high-performance systems
The Ziggiotto rigid joint is designed to provide maximum stability in connections between grooved pipes, preventing any bending or axial movement. Internal locking teeth anchor firmly to the pipe, providing a rigid, vibration-proof joint.
Versatility of use
Perfect for fire protection, HVAC, industrial and civil systems, it is compatible with water- and glycol-based fluids (up to 15 percent) but cannot be used with potable water. EPDM gasket ensures excellent sealing even at extreme temperatures.
Benefits for installers and designers
-
Quick installation without welding or threading
-
Ease of maintenance and inspection
-
Maximum mechanical reliability
-
Ideal for modular systems and expandable installations

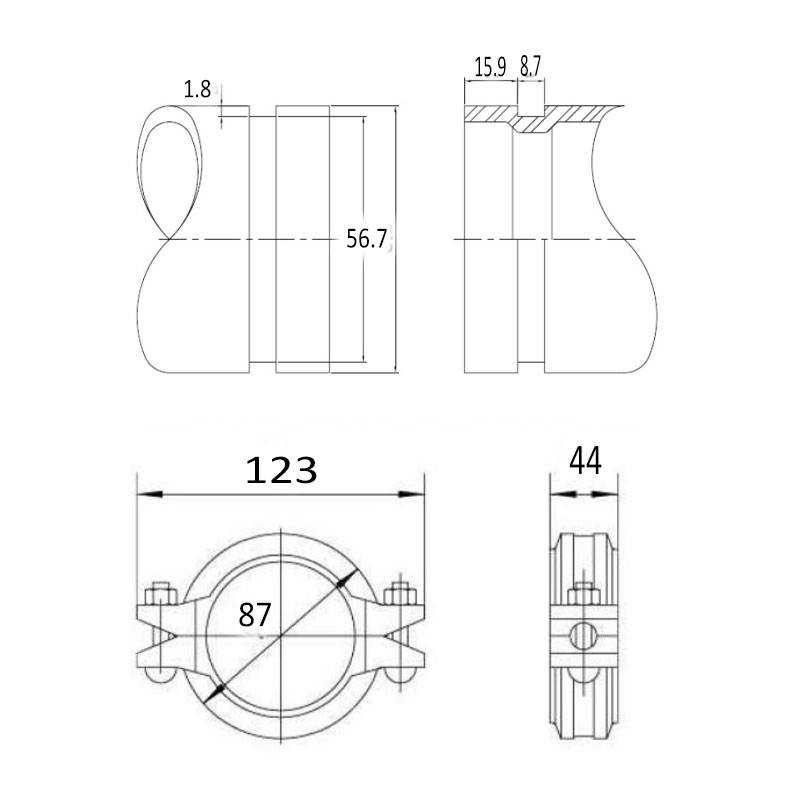

Technical Specifications Grooved joint
| Nominal diameter | 2 inches (50 mm) |
| Pipe outer diameter | 60.3 mm |
| Nominal pressure rating (PN) | 500 PSI |
| Bolts | M10x55 |
| Gasket | EPDM |
| Operating temperature range | -34/+110 degrees |
| Certifications | UL / FM |
| Fluid compatibility | Water + glycol (15%) |
| Usage | Firefighting, HVAC, industrial plumbing (no potable water) |
There are no reviews
Data sheet
- Type: Connections
- Model: Threaded
- Connections: 2 inches
