Cembre Blind Straight Connector for 70mmq Cables MTMA70-GC
CEM MTMA70-GC
8016692041421

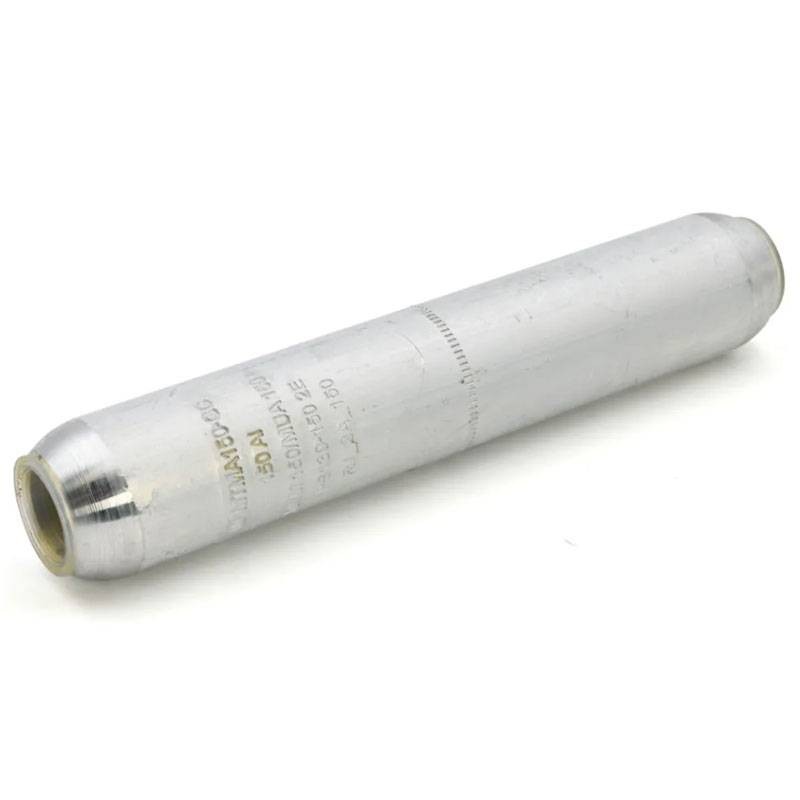

Cembre MULTITENSION Blind Straight Connector MTMA70-GC for Aluminum Cables 70 mm² High Reliability and Performance.
-
Type of joint: blind butt connector
-
Cable cross-section range: 70 ÷ 70 mm²
-
Cable stripping length: 57.5 mm
-
Operating temperature: -50 °C to 150 °C
-

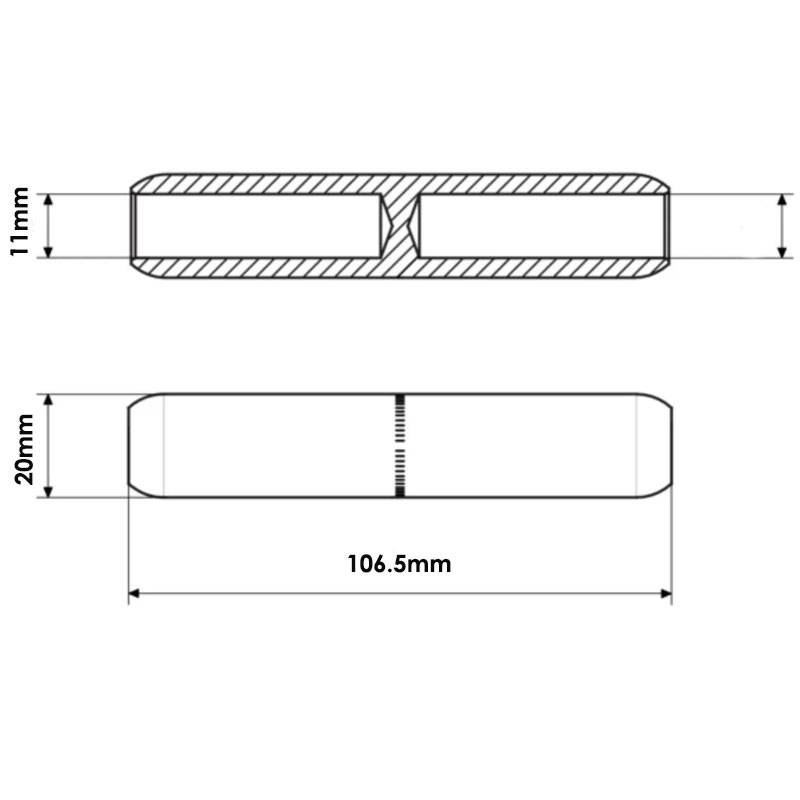

Presence of center stop: yes, to facilitate cable insertion
-
Grease inside the barrel: yes, for protection against oxidation
-
Filler putty: yes, for additional protection
-
Compression geometry: deep notch.
€5.88
Items Available: 3
: 2
Cembre Blind Straight Connector for safe and durable connection for aluminum cables
The Cembre MTMA-GC Blind Straight Connector is designed to provide a secure and durable connection between aluminum cables with 70 mm² cross section. The deep-slotted geometry provides optimal compression, ensuring a stable electrical connection resistant to mechanical stress, ideal for applications in industrial, civil and high-voltage installations.
High-quality material and advanced protection
Made from pure aluminum round bar (over 99.5%), the Cembre joint is highly durable and offers high performance. The watertight diaphragm prevents migration of the mixture into the joint, especially when using solid-insulated cables, effectively protecting the connection in the event of severe unevenness along the conductor path. In addition, the inner surface is protected from oxidation by the use of a high drop point grease.
Designed for easy and safe installation
Equipped with chamfers at the ends and a center stop system, the joint facilitates the insertion of conductors, reducing the risk of errors during installation. Filler putty provides additional protection against moisture and contaminants, improving the durability of the connection.
There are no reviews
Data sheet
- Type: Connections
- Cross-Section: 70mmq
