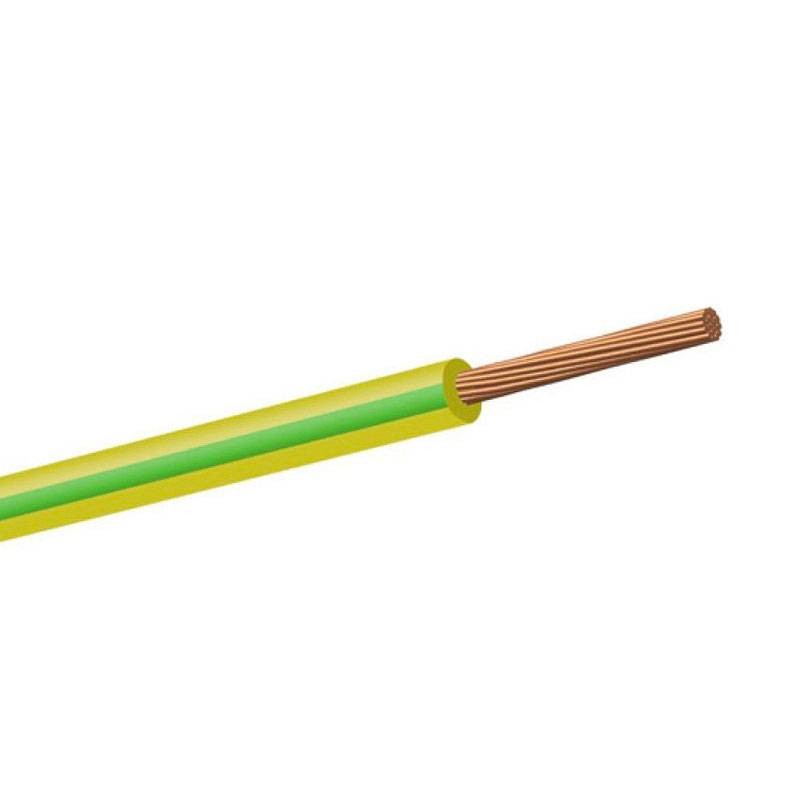

FG17 Cable 1x70 mmq 450/750 V

Cavi
9X9 FG171X70GV

FG17 1x70 sq mm 450/750 V cable with the following characteristics:




  • Diameter: 16 mm
  • 1 conductor
  • 70 sq. mm cable section
  • Max electrical resistance at 20°C: 0.206 ohm/ km
  • Current carrying capacity at 30°C in tube in air: 269A



Sale per meter.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
Do you have questions about this product or did you not find what you were looking for? Ask us!
FG17 Cable 1x70 mmq 450/750 V
€12.50
€12.50

€12.50
Tax included
Calculate shipping cost
Items Available: 1004
Further availability of the manufacturer
€12.50

Buy it within and receive it from Monday, 22 December
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Energy cable insulated with G17-quality elastomeric compound, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).




Features:

  • Rated voltage Uo/U: 450/750 V
  • Maximum operating temperature: 90°C
  • Minimum operating temperature: -30°C (in the absence of mechanical stress)
  • Minimum installation temperature: -15°C
  • Maximum short-circuit temperature: 250°C
  • Maximum tensile stress: 50 N/mm2
  • Minimum bending radius: 4 times the maximum outer diameter



Conditions of use: Especially suitable in places with fire hazards and high presence of people. For installation within exposed or recessed piping or similar closed systems. For fixed and protected installation within lighting fixtures or switching and control equipment. When the installation is protected within switchgear and control equipment these cables are permitted for voltages up to 1000 V AC or 750 V DC to ground. The 1 mm² cross-section is intended only for electrical circuits of elevators and hoists or for internal connection of switchgear for signaling and control. Not suitable for outdoor installation. (ref. IEC 20-40).

There are no reviews

Data sheet

Colour:
Yellow Green
Cross-Section:
70mmq
With yellow/green:
No
Number of cables:
1
