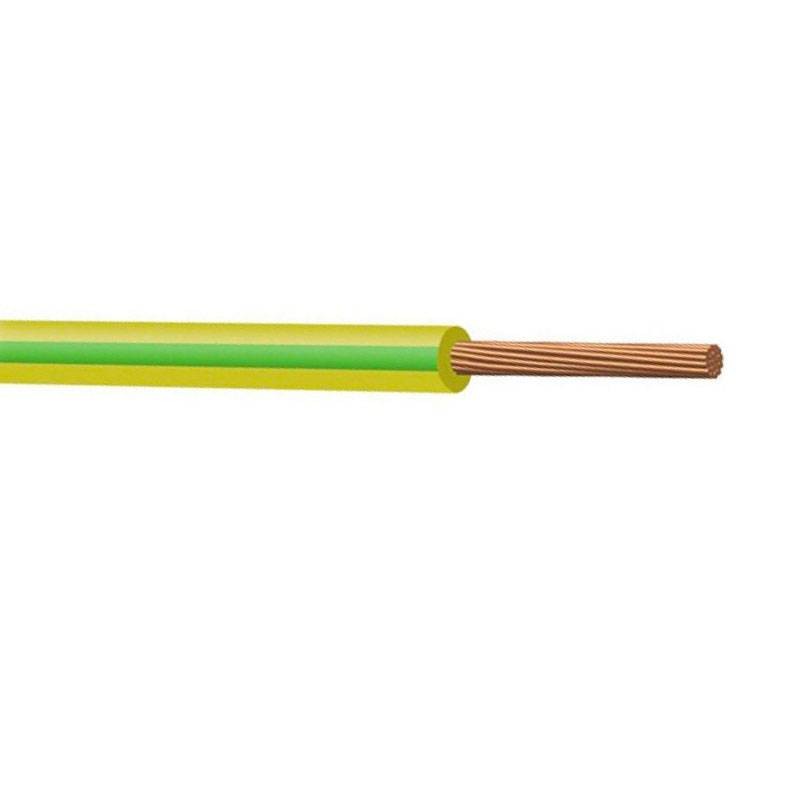

Single core cable FG17 1x150 sq. mm 450/750V Yellow/Green
9X9 FG171G150GV
FG17 cable 1x150 sq mm 450/750V, high capacity, fire safety and maximum protection in critical environments, with the following characteristics:
-
Section: 1x150 sq. mm
-
Rated voltage: 450/750V
-
Maximum outer diameter: 18.6 mm
-
Average insulation thickness: 1.8 mm
-
Current carrying capacity (in pipe, 30 degrees): 355 A
-
Max. electrical resistance at 20 degrees: 0.129/km
-
Color: Yellow/Green
The selling price at is intended per meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
€26.55
Items Available: 897
: 722
Two-year warranty
FG17 safety and power cable for installations in sensitive environments.
FG17 1x150 sq mm yellow/green FG17 cable is designed for applications in low-voltage electrical installations where high standards of safety, electrical performance and fire resistance are required. Equipped with LS0H (Low Smoke Zero Halogen) insulation, it is an ideal choice for installations in public environments, with high density of people, or where fire protection is a priority.
Advanced materials and robust construction
The cable consists of a flexible annealed red copper conductor, class 5, which ensures excellent conductivity and ease of installation, even on articulated runs. Insulation is made of G17 elastomeric compound, halogen-free and with low smoke and toxic gas emission, in accordance with IEC 20-40.
Excellent reaction to fire: CPR Cca-s1b,d1,a1
FG17 complies with the Construction Products Regulation (CPR) with fire reaction class Cca-s1b,d1,a1, guaranteeing:
-
Limited flame spread
-
Low smoke emission
-
Absence of glowing droplets
-
Minimal emission of harmful substances
Therefore perfect for environments such as schools, hospitals, theaters, public offices and shopping centers.
Conditions of use and compatibility
The cable is intended for:
-
Fixed and protected installations in exposed or recessed piping
-
Use inside electrical panels, lighting fixtures, switches and controls
-
Electrical systems up to 1000V alternating current when installed in protected environments
-
Not suitable for installation outdoors or in directly exposed locations
Recommended applications
-
Grounding and protection systems (due to yellow/green color)
-
Internal wiring in electrical panels
-
High capacity power connections in indoor environments
-
Public buildings subject to CPR regulations
-
Protected installations in highly crowded environments
FG17 Cable Specifications
| Parameter | Value |
|---|---|
| Type | Single-core cable |
| Section | 1x150 sq. mm |
| Conductor | Flexible annealed red copper, class 5 |
| Conductor diameter | 15 mm |
| Insulation | LS0H G17 (Low Smoke Zero Halogen) compound |
| Average insulation thickness | 1.8 mm |
| Max. outer diameter | 18.6 mm |
| Max electrical resistance | 0.129 Ω/km |
| Rated voltage | 450/750 V |
| Current carrying capacity | 355 A (in tube, 30°C) |
| Maximum tensile stress | 50 N/mm² |
| Minimum bending radius | 4x the outer diameter (≈ 74.4 mm) |
| Operating temperature | -30°C TO +90°C |
| Minimum laying temperature | -15°C |
| Short-circuit temperature | 250°C |
| Laying | In pipe, recessed or exposed - not external |
| Color | Yellow/Green (protective conductor) |
| Reaction to fire | Complies with CPR Cca-s1b,d1,a1 |
| Sale | By the meter |
There are no reviews
Data sheet
- Colour: Yellow Green
- Cross-Section: 150mmq
- With yellow/green: No
- Number of cables: 1
