Cembre M12 185mmq bimetallic terminal lug CAA185-M12
CEM CAA185-M12
8016692041162
Cembre CAA185-M12 185 mm² M12 bimetallic terminal lug: secure aluminum-copper connection for LV and MV systems up to 30,000 V.
-
Cable cross-section: 185 mm² M12 screw hole
-
Bimetallic: aluminum collar + copper flap
-
Friction-welded junction for perfect electrical continuity
-
High drop point internal protective grease
-
Compression geometry: deep notch
-
Maximum operating voltage: 30,000 V
-
Temperature range: -50 °C to +150 °C
€16.51
Items Available: 28

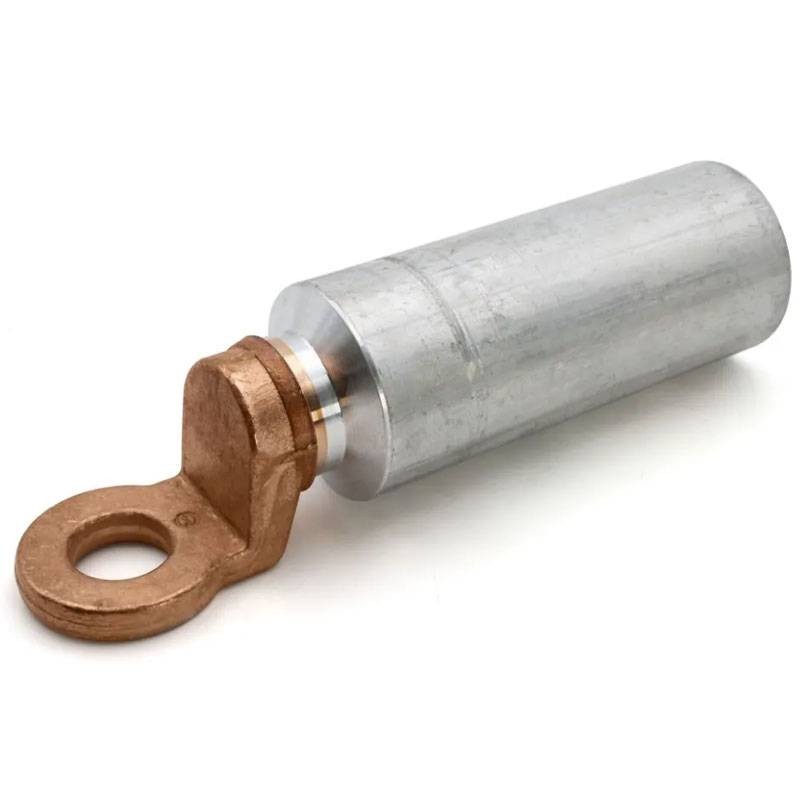

Cembre bimetallic lug: Reliable connection between copper and aluminum
The Cembre CAA185-M12 bimetallic lug is designed for professional termination of aluminum cables in low and medium voltage systems, up to 30,000 V.
The bimetallic structure consists of: pure aluminum collar (>99.5%), for aluminum conductors; electrolytic copper flap (>99.9%), for connection on copper bars, terminals, or terminals.
This combination ensures a stable electrical connection, eliminating galvanic corrosion problems between the two materials.
Friction welding and corrosion protection
The junction between copper and aluminum is achieved by friction welding, a process that ensures electrical continuity, mechanical stability and long service life. The interior of the collar is pretreated with high drop-point grease, which protects against oxidation, while filler filler improves insulation and seals the terminal.

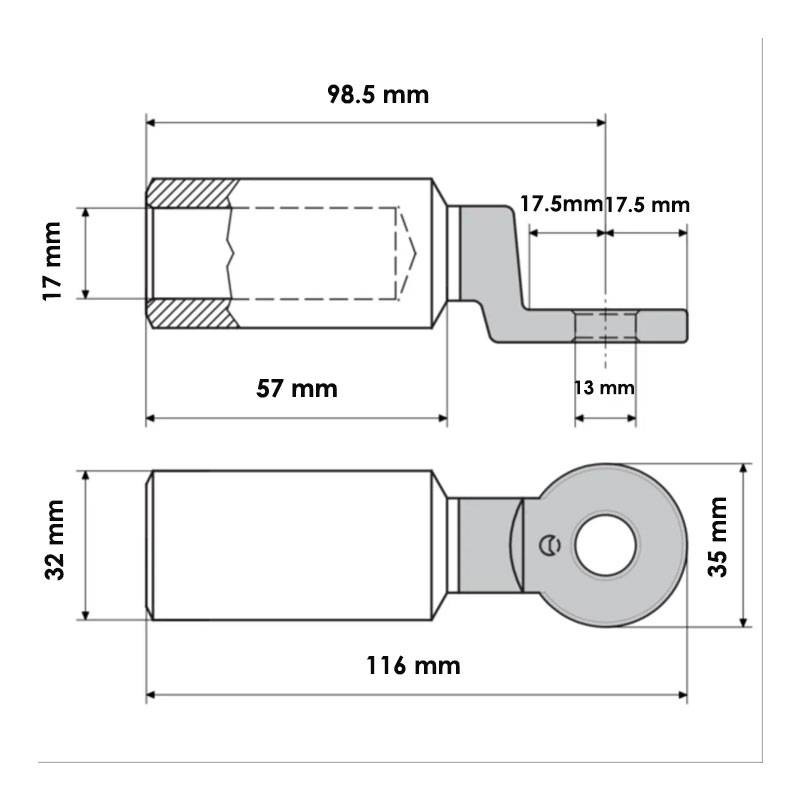

Optimized geometry for crimping
The lug body has a deep notch geometry, which allows precise and uniform compression with compatible tools. Facilitated conductor entry and no telltale hole improve installation efficiency by preventing leakage and incorrect deformation during crimping.
Ideal for critical environments and installations
Designed for extreme working conditions, the lug is certified for a temperature range of -50 °C to +150 °C. It is suitable for electrical panels, MV substations, industrial plants and all applications where a connection between aluminum conductors and copper terminals is required.
| Feature | Detail |
|---|---|
| Code | CAA185-M12 |
| Brand | Cembre |
| Type | Bimetallic eye lug |
| Conductor section | 185 mm² |
| Screw hole | M12 |
| Maximum voltage | 30.000 V |
| Compression geometry | Deep notch |
| Collar material | Aluminum ≥99.5% |
| Flap material | Electrolytic copper ≥99.9% |
| Internal treatment | Protective grease + filler putty |
| Operating temperature | -50 °C / +150 °C |
| Sight hole | Absent |
| Facilitated entry | Yes |
| Number of holes on the flap | 1 |
| Applications | LV and MV, aluminum cables, copper interfaces |
There are no reviews
Data sheet
- Diameter: 12mm
- Type: Terminal lugs
- Cross-Section: 185mmq
