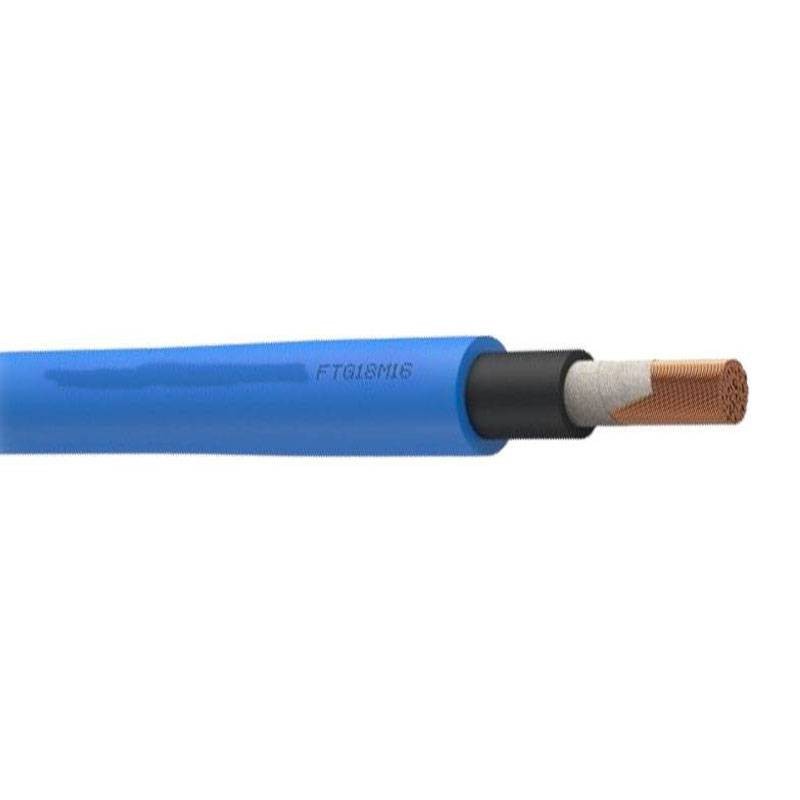

Flexible power cable FTG18M16 1x185 sq. mm 0.6/1 kV blue

Cavi
9X9 FTG18M161X185

Fire-resistant FTG18M16 flexible power cable with G18 rubber insulation and LS0H M16 sheathing, halogen-free and low smoke emission. Ideal for safety installations in critical environments, with the following characteristics:

  • Section: 1x185 sq mm

  • Conductor diameter: 17.7 mm

  • Insulation thickness: 2 mm

  • Sheath thickness: 2 mm

  • Outer diameter: 26.8 mm

  • Electrical resistance: 0.106 ohm/km

  • Current carrying capacity in tube in air: 417 A

  • Current carrying capacity in free air: 510 A

The selling price is intended per meter.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
Do you have questions about this product or did you not find what you were looking for? Ask us!
Flexible power cable FTG18M16 1x185 sq. mm 0.6/1 kV blue
€34.47
€34.47

€34.47
Tax included
Calculate shipping cost
Items Available: 240
Further availability of the manufacturer
€34.47

Buy it within and receive it from Monday, 22 December
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

FTG18M16 1x185 sq. mm cable: maximum safety and quality materials

Maximum safety and fire resistance

Flexible power cable FTG18M16 is designed for maximum reliability under fire conditions, ensuring continuous operation for 120 minutes at 820 degrees, with direct exposure to fire and mechanical shock. Due to its construction with G18 rubber insulation and LS0H M16 sheathing, the cable is halogen-free and limits the spread of flames and development of toxic fumes, contributing to the safety of critical environments.

High-quality construction and materials

This cable consists of:

  • Red annealed copper conductor with flexible cord (class 5), providing excellent electrical conductivity

  • Helically wound glass/mica tape, for high temperature resistance

  • G18 rubber insulation, offering thermal and mechanical protection

  • LS0H (Low Smoke Zero Halogen) M16 sheathing, with excellent safety properties in case of fire

Flexible 1x185 sq. mm cable: electrical efficiency and versatile laying

Reliable electrical and mechanical performance

Designed to withstand harsh operating conditions, with a voltage rating of 0.6/1 kV and current carrying capacity up to 510 A in free air. It also withstands temperatures up to 250 degrees when short-circuited and has a maximum tensile stress of 50 N/mm², ensuring mechanical strength even in complex installations.

Laying and installation conditions

This cable can be installed indoors and outdoors, even in wet conditions, on masonry, metal structures, catwalks, pipes and conduits. It is also suitable for underground laying, even without additional protection, ensuring versatility and safety in any context.

Recommended applications and uses

Due to its high fire resistance and low smoke emissions, FTG18M16 cable is ideal for:

  • Security and emergency systems (emergency lighting, alarms)

  • Installations in railway stations, subways, airports and tunnels

  • Fire detection and extinguishing, automatic door opening, ventilation and air conditioning systems

  • Emergency telephone systems and critical infrastructure

Technical Characteristics

FeatureValue
Conductor Flexible annealed red copper (Class 5)
Insulator Rubber G18
Tape Glass/mica helically wound
Filler Non-hygroscopic material
Outer sheath LS0H M16 (blue)
Rated voltage 0.6/1 kV
Fire resistance PH120-F120 (120 min at 820°C)
Operating temperature -15°C / +90°C
Installation temperature Minimum -5°C
Maximum short-circuit temperature 250°C
Maximum tensile stress 50 N/mm²
Minimum bending radius 14 times the outer diameter
Conductor diameter 17.7 mm
Insulation thickness 2 mm
Sheath thickness 2 mm
Outer diameter 26.8 mm
Electrical resistance 0.106 ohm/km
Current flow rate in tube in air 417 A
Current flow rate in free air 510 A

There are no reviews

Data sheet

Colour:
Blue
Type:
FTG18M16
Cross-Section:
185mmq
With yellow/green:
No
Number of cables:
1
