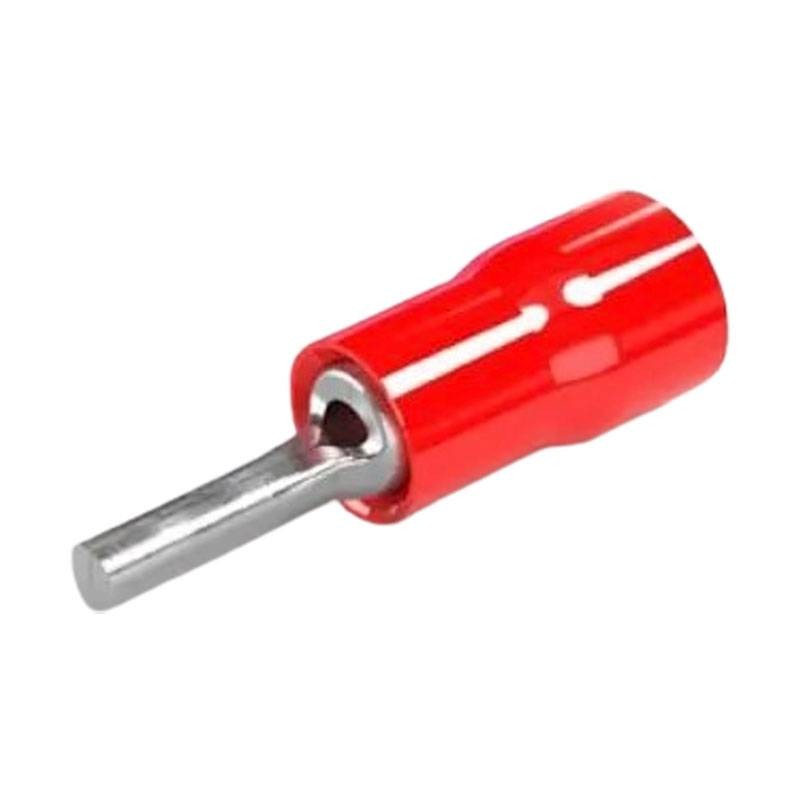

Cembre 10mm preinsulated round tip cable lug for conductors 100pcs RF-P10
CEM RF-P10
8016692001371
Cembre pre-insulated round ferrule lug, secure and compact connection for copper conductors, with the following characteristics:
-
Stripping length: 10 mm
-
Conductor material: 99.9% electrolytic copper
-
Surface treatment: Electrolytic tinning
-
Insulation: Partial, PVC
-
Insulation colour: Red
-
Applications: Connection of copper conductors in spring or screw terminals
Selling price is per piece, sellable only by 100-piece package.
€0.07
Items Available: 700
: 500
Round tip cable lug safe and professional electrical connections
The pre-insulated round ferrule lug is the ideal solution for making reliable and durable electrical connections with flexible or rigid copper conductors. The round ferrule design ensures stable contact inside spring, screw or plug-in terminals, and is particularly suitable for electrical panels, terminal blocks and connections in tight spaces.
High-purity copper construction and tin-plated finish
Made from 99.9% electrolytic copper strip, the lug undergoes an annealing and tin-plating treatment that improves its flexibility during crimping and resistance to corrosion.
Internal knurling of the collar ensures a high mechanical seal, preventing the conductor from slipping out even under vibration or stress.
Simple installation with easy entry
The PVC insulating jacket has an internal funnel-shaped shaping, which guides the cable inside the terminal and prevents the strands from stretching. This allows for cleaner, safer and faster wiring, which is also ideal in multiple or repetitive installations.
Partial insulation protects the crimping area by keeping the connection part free, while providing good electrical safety and accessibility.
Versatile applications
The round ferrule lug is widely used in:
-
Electrical panels and distribution systems
-
Industrial automation and control systems
-
Electronic equipment
-
Civil and commercial installations
-
Terminal block connections where a compact terminal is required
Technical Specifications Round Terminal Lug
Technical Specifications
| Type | Pre-insulated round ferrule terminal lug |
| Insulation | Partial, PVC |
| Insulation color | Red |
| Conductor material | Electrolytic copper ≥99.9% |
| Surface treatment | Electrolytic tinning |
| Compression geometry | Radial |
| Internal knurling | Yes |
| Facilitated entry | Funnel blouse |
| Cable stripping length | 10 mm |
| Operating temperature range | -20?°C to +75?°C (up to +90?°C for short periods) |
| Applications | Connection of copper conductors in spring or screw terminals |
There are no reviews
Data sheet
- Type: Terminal lugs
