Cembre copper terminal lug M14 300mmq A60-M14
CEM A60-M14
8016692038735

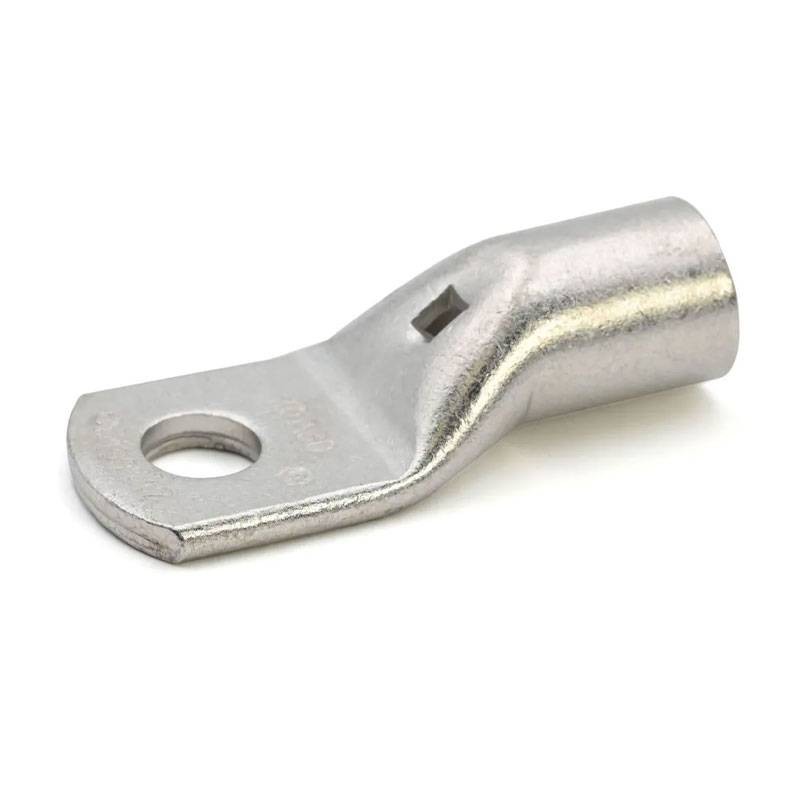

Cembre A60-M14 300 mm² M14 terminal lug: reliable tinned copper connection for high-performance electrical systems.
-
Cable cross-section: 300 mm² M14 screw hole
-
Made of >99.9% annealed electrolytic copper
-
Treated with electrolytic tin plating
-
Collar with easy entry and inspection hole
-
Compatible with medium and low voltage systems
-
Operating temperature: -50 °C to +150 °C
€15.77
Items Available: 4
: 2
Cembre lug Reliability and conductivity for professional installations

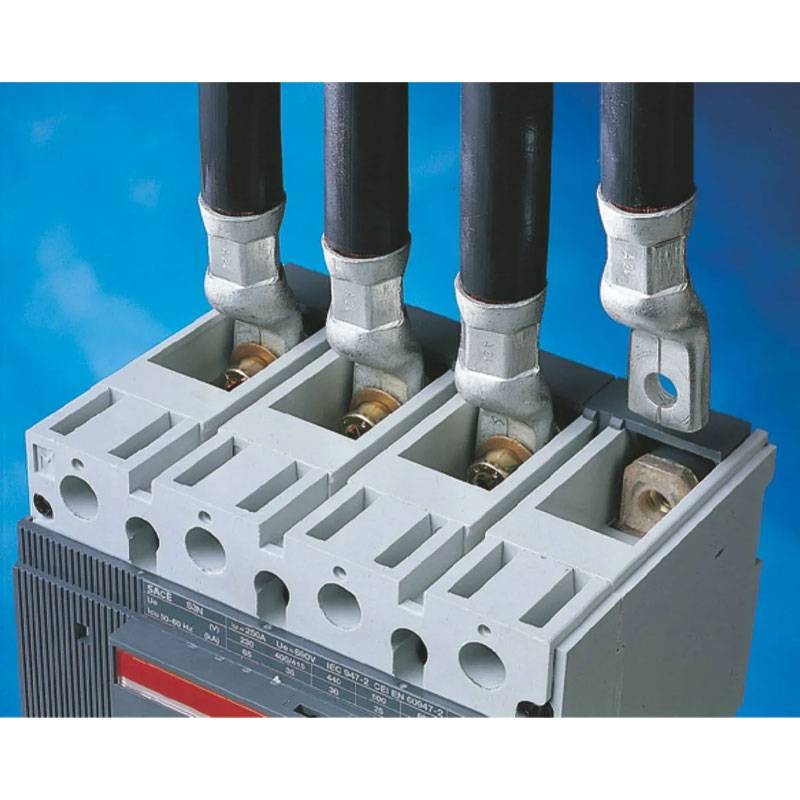

The Cembre A60-M14 eye lug is designed for the secure connection of 300 mm² copper conductors in low and medium voltage installations. Ideal for electrical panels, distribution substations and industrial installations, it ensures high mechanical strength and excellent conductivity thanks to the use of annealed electrolytic copper with purity greater than 99.9%.
Tinned treatment and technical finish
The electrolytic tinning process gives the lug high protection against oxidation, making it ideal even for environments with moisture or corrosive agents. The chamfered collar and inspection hole facilitate precise wire insertion, preventing stretching and facilitating crimping with standard tools.
Ease of installation and wide compatibility
The geometry of the collar is optimized to simplify placement in compression dies, reducing installation time. The M10 hole on the flap allows the lug to be securely housed in standard connection terminals and clamps, ensuring a solid and durable electrical and mechanical seal.
Perfect for critical environments
Thanks to its robust construction and quality materials, the lug can be used in the extreme temperature range of -50 °C to +150 °C, making it suitable for installations subject to environmental variations and demanding operating conditions.

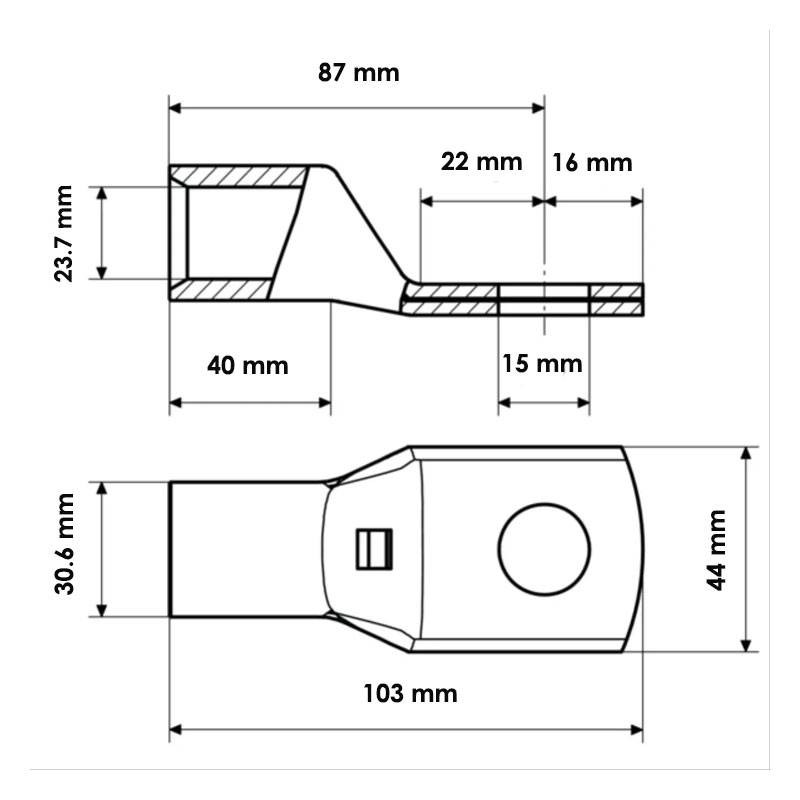

| Feature | Detail |
|---|---|
| Product Code | A60-M14 |
| Brand | Cembre |
| Type | Eyelet lug |
| Material | Annealed electrolytic copper >99.9% |
| Surface treatment | Electrolytic tinning |
| Conductor cross section | 300 mm² |
| Screw hole | M14 |
| Spy hole | Yes |
| Facilitated entry | Yes |
| Operating temperature | -50 °C / +150 °C |
| Number of holes on the flap | 1 |
| Applications | Switchboards, LV and MV systems, distribution lines |
There are no reviews
Data sheet
- Diameter: 14mm
- Type: Terminal lugs
- Cross-Section: 300mmq
