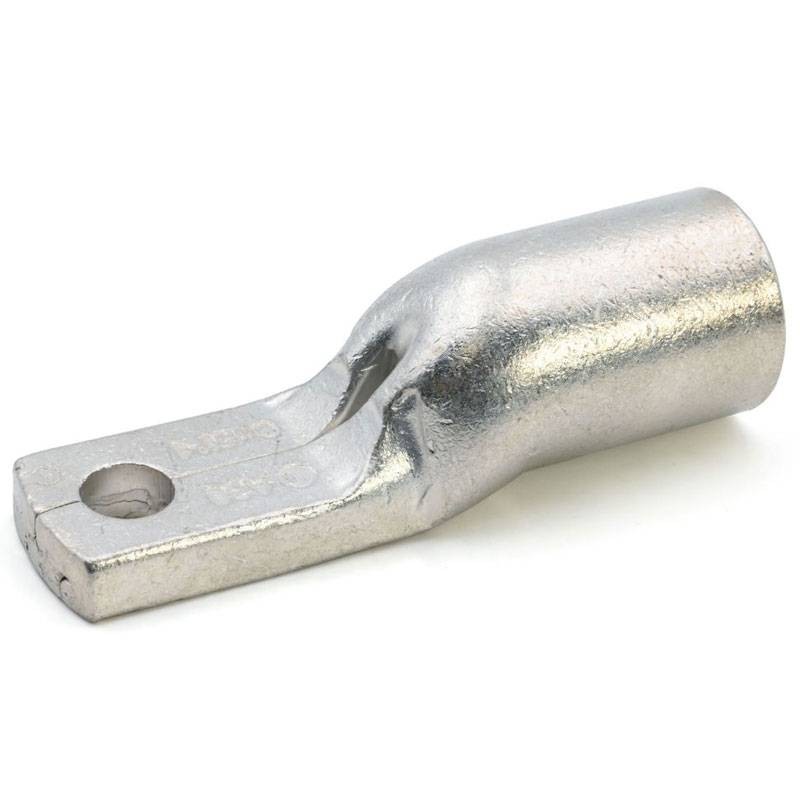

Cembre copper terminal lug M8 95 sq. mm A19B-M8/15.5

Cembre
Cembre
CEM A19B-M8/15.5 8016692189871

Cembre A19B-M8/15.5 M8 terminal lug: content connection for LV circuit breakers, tinned copper and easy to install.

  • Cable cross-section: 95 mm² Screw hole M8

  • Contained attachment for LV circuit breaker terminals

  • Made of >99.9% pure electrolytic copper

  • Surface treatment: electrolytic tinning

  • Facilitated entry with inspection hole

  • Operating temperature: -50 °C to +150 °C.

  • Without inspection hole

Do you have questions about this product or did you not find what you were looking for? Ask us!
Cembre copper terminal lug M8 95 sq. mm A19B-M8/15.5
€3.51
€3.51

€3.51
Tax included
Calculate shipping cost
Items Available: 81
Further availability of the manufacturer
€3.51

Buy it within and receive it from Friday, 6 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Cembre lug Safe and compact connection for LV switchgear

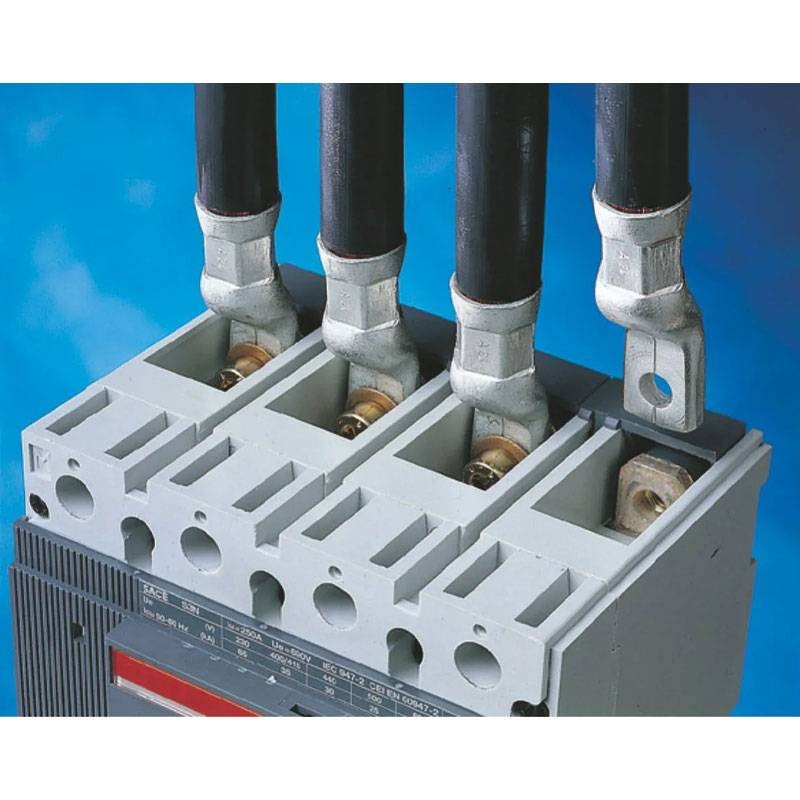

The Cembre A19B-M8/15.5 eyelet lug is designed for applications in low-voltage systems, with special reference to connection on circuit breakers equipped with small-space terminals. Its small connection allows insertion even in spaces where standard A-M series lugs do not find compatibility.

Maximum conductivity and reliability

Made from annealed electrolytic copper of more than 99.9% purity, the lug provides excellent conductivity and mechanical strength. Tin plating protects the terminal from oxidation, improving durability even in high humidity or contaminant environments.

Ease of wiring and installation

The chamfered collar and integrated inspection hole facilitate the insertion of flexible conductors, preventing wire stripping and ensuring more precise compression. The collar length is designed for perfect insertion into crimping tool dies, making installation fast and efficient.

Use in extreme environmental conditions

The lug can operate in a wide temperature range from -50 °C to +150 °C, making it suitable for installations exposed to major climatic variations, industrial environments, electrical substations and distribution boards.

Feature Detail
Code A19B-M8/15.5
Brand Cembre
Type Eyelet lug with contained attachment
Material Annealed electrolytic copper >99.9%
Treatment Electrolytic tinning
Conductor cross section 95 mm²
Screw hole M8
Applications LV circuit breakers, electrical panels, compact terminals
Operating temperature -50°C / +150°C
Facilitated entry Yes
Inspection hole Yes
Number of holes on the flap 1

There are no reviews

Data sheet

Diameter:
8mm
Type:
Terminal lugs
Cross-Section:
95mmq
