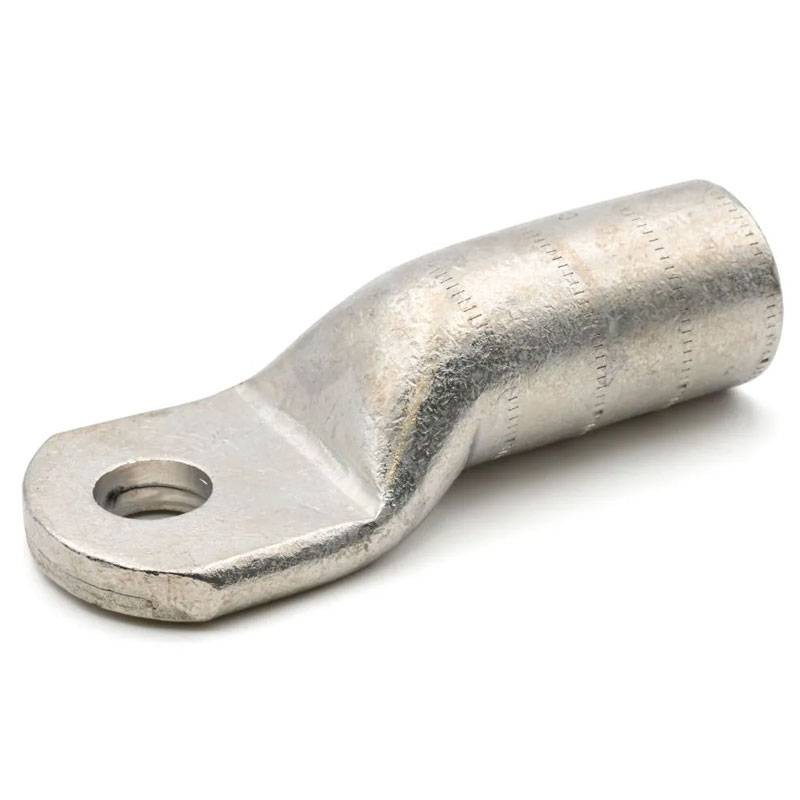

Cembre Medium Voltage terminal lug M12 95mmq CA95R-M12
CEM CA95R-M12
8016692041001
Cembre CA95R-M12 terminal lug: copper terminal for medium voltage up to 35 kV, high safety and tightness.
-
Cable section range: 80 to 95 mm²
-
Screw hole: M12
-
Maximum operating voltage: 35 kV
-
Material: electrolytic copper >99.9%, annealed and tinned
-
Strip length: 50 mm
-
Without inspection hole: for better sealing against moisture
-
Surface treatment: electrolytic tinning
-
Operating temperature: -50 °C to +150 °C
€11.61
Items Available: 70
: 21
Cembre lug for medium voltage installations
The Cembre CA95R-M12 eye lug is designed for terminating copper conductors in MV systems up to 35,000 V. With a cross-section range of 80 to 95 mm², it is a professional and reliable solution for transformer substations, industrial plants, power lines and high-efficiency distribution systems.
Pure materials for excellent conductivity
Constructed from high-purity (>99.9%) annealed electrolytic copper, the terminal ensures maximum electrical conductivity, low resistance to current flow, and long service life. Electrolytic tinning treatment provides protection against oxidation, making it suitable even for environments with high humidity or contaminants.
Optimized design for outdoor applications
The absence of an inspection hole is a technical feature designed to prevent the ingress of moisture, dust and dirt, particularly useful in outdoor or underground installations. The collar is designed for a standard 50 mm stripping, ensuring safe and accurate crimping with major Cembre equipment.
Long-term safety and reliability
With its robust construction, surface treatment and precise compression geometry, the lug ensures a stable and durable electrical connection even under severe thermal and mechanical stress. Operating in a temperature range of -50 °C to +150 °C, it is the ideal solution for highly critical environments.
There are no reviews
Data sheet
- Diameter: 12mm
- Type: Terminal lugs
- Cross-Section: 95mmq
