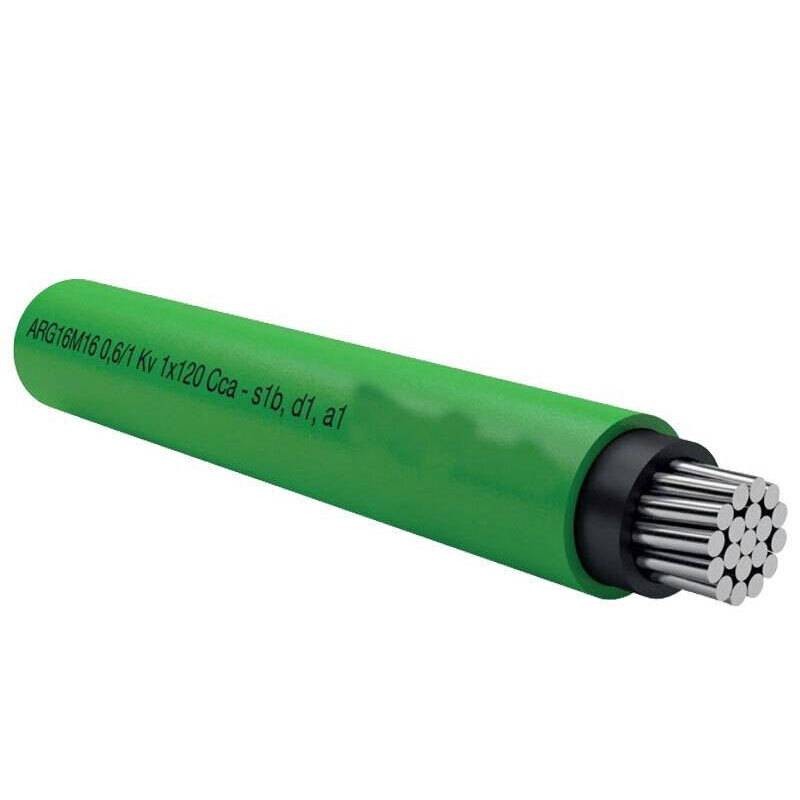

Unipolar cable ARG16M16 1x300 mm2 aluminium conductor 0.6/1 kV

Cavi
9X9 ARG16M1X300

Unipolar cable ARG16M16 1x300 mm2 aluminum conductor 0.6/1 kV cable with the following characteristics:



  • Conductor diameter: 20.7 mm
  • Insulation thickness: 1.8 mm
  • Sheath thickness: 1.8 mm
  • Max electrical resistance at 20°C: 0.100 ohm/ km
  • Current carrying capacity in buried pipe: 400 A



The selling price is per meter.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
Do you have questions about this product or did you not find what you were looking for? Ask us!
Unipolar cable ARG16M16 1x300 mm2 aluminium conductor 0.6/1 kV
€8.54
€8.54

€8.54
Tax included
Calculate shipping cost
Items Available: 3063
Further availability of the manufacturer
€8.54

Buy it within and receive it from Monday, 22 December
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Unipolar energy cable with aluminum conductor, insulated with high modulus ethylene propylene rubber of G16 quality, under special thermoplastic sheathing of M16 quality, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).



Features:

  • Conductor: rigid aluminum cord, class 2
  • Insulation: High-modulus ethylpropylene rubber compound, quality G16
  • Sheath color: Green
  • Rated voltage Uo/U: 0.6/1 kV
  • Maximum operating temperature: 90°C
  • Minimum operating temperature: -15°C (in the absence of mechanical stress)
  • Minimum installation temperature: 0°C
  • Maximum short-circuit temperature: 250°C up to 240 mm² section, over 220°C
  • Maximum tensile stress: 50 N/mm2
  • Minimum bending radius: 6 times the maximum outer diameter



Conditions of use: For energy transport in industrial and/or residential construction. Particularly suitable in places with fire hazards and high presence of people such as offices, schools, supermarkets, cinemas, theaters, discos. Suitable for use indoors in even wet rooms or outdoors; fixed installation on masonry and metal structures. Also permitted for underground installation.

There are no reviews

Data sheet

Colour:
Green
Diameter:
20,7mm
Type:
Aluminum cables
Cross-Section:
300mmq
With yellow/green:
No
Number of cables:
1
