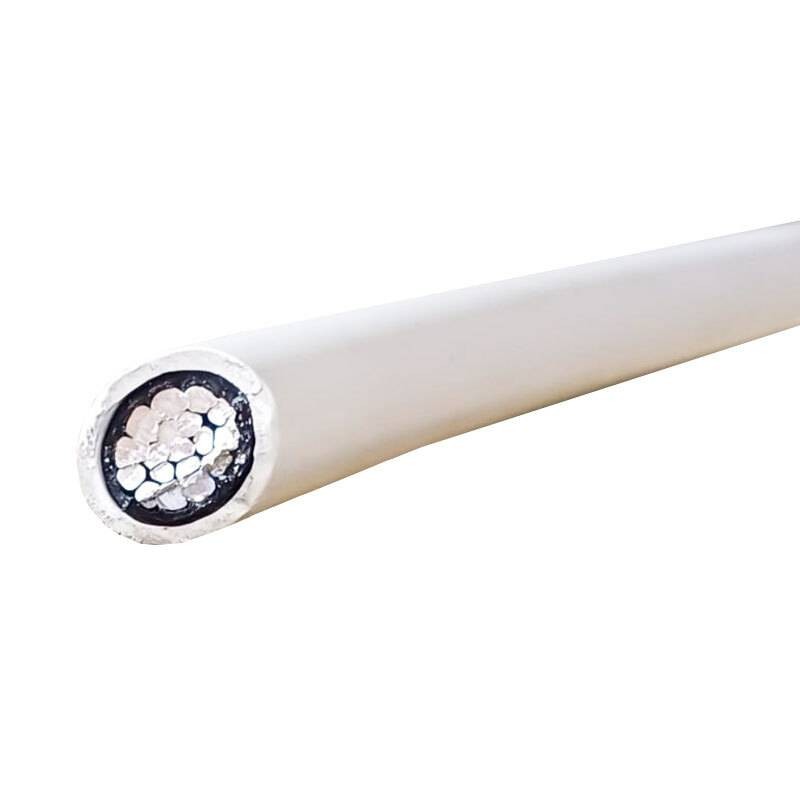

One-pole ARG16R16 aluminum conductor cable 1x95 sq. mm 0.6/1KV

Cavi
9X9 ARG161X95

One-pole ARG16R16 aluminum conductor 1x95 sq mm 0.6/1KV cable with the following characteristics:



  • Conductor diameter: 11.4 mm
  • Insulation thickness: 1.1 mm
  • Sheath thickness: 1.5 mm
  • Outer diameter: 16.8 mm
  • Maximum electrical resistance at 20°C: 0.320 ohm/km
  • Current carrying capacity in free air: 261A
  • Current flow rate in pipe in air: 209A
  • Current flow rate underground: 245A
  • Current flow rate in buried pipe: 196A




The selling price is intended per meter.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
Do you have questions about this product or did you not find what you were looking for? Ask us!
One-pole ARG16R16 aluminum conductor cable 1x95 sq. mm 0.6/1KV
€3.31
€3.31

€3.31
Tax included
Calculate shipping cost
Out of stock
Further availability of the manufacturer
Incoming
€3.31

Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Single-core energy cable with aluminum conductor, insulated with high-modulus ethylene-propylene rubber of G16 quality, under PVC sheath, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).



Features:

  • Conductor: rigid aluminum cord, class 2
  • Insulation: High-modulus ethylpropylene rubber compound, quality G16
  • Outer sheath: PVC compound of R16 quality
  • Rated voltage Uo/U: 0.6/1 kV
  • Maximum operating temperature: 90°C
  • Minimum operating temperature: -15°C (in the absence of mechanical stress)
  • Minimum installation temperature: 0°C
  • Maximum short-circuit temperature: 250°C up to 240 mm² section, over 220°C
  • Maximum tensile stress: 50 N/mm2
  • Minimum bending radius: 6 times the maximum outer diameter



Conditions of use: For energy transport in industrial and/or residential construction. Suitable for use indoors in even wet rooms or outdoors; fixed laying on masonry and metal structures. Also permitted for underground laying.

There are no reviews

Data sheet

Colour:
Grey
Diameter:
16,8mm
Type:
Aluminum cables
Cross-Section:
95mmq
With yellow/green:
No
Number of cables:
1
