Ajax Fire Hub Wireless Fire Control Panel EN54 Jeweller
08T 125732
4823114073267
Ajax Wireless Fire Hub EN54 (CIE) Jeweller Fire Control Panel - Complete and Intelligent Protection:
- Integrated functions: fire protection, intrusion detection, video surveillance and automation
- Supported devices: up to 200
- Fire zones: up to 40, with multiple rooms per zone
- Cameras: up to 224 via Ajax NVR, up to 492 standalone, RTSP and ONVIF support
- Touch screen: 10.1″ with intuitive interface
- Automation scenarios: up to 64
- Recorded events: up to 5,000 on the system, up to 500 in Ajax apps
- Wireless communication: Jeweller technology, fast and secure connection
- Power supply: External 110-240 V, 50/60 Hz - Internal with 7.4 V⎓, 5 Ah or 10 Ah Li-ion battery (not included)

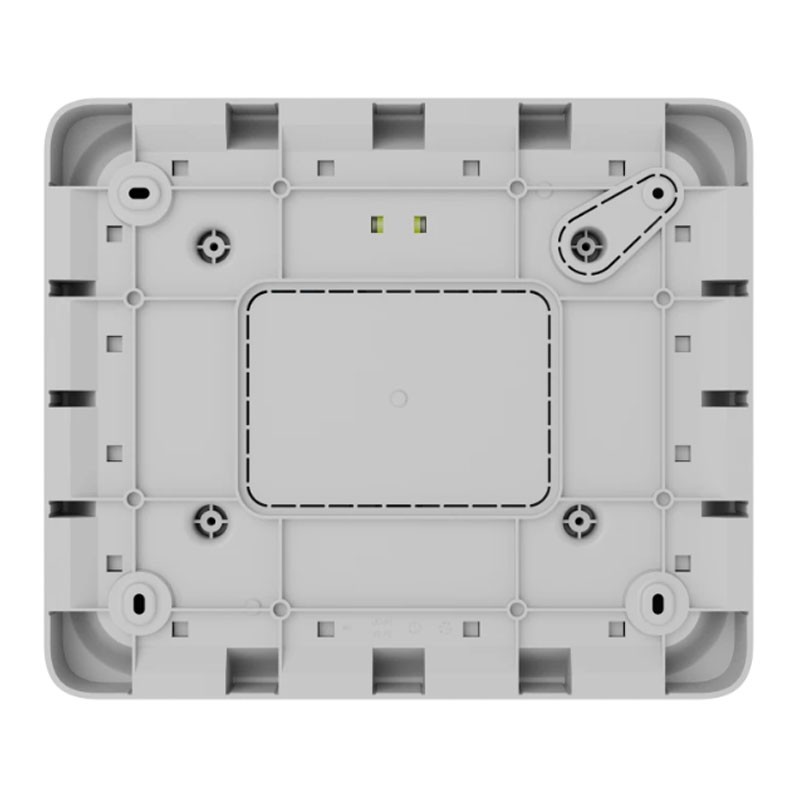

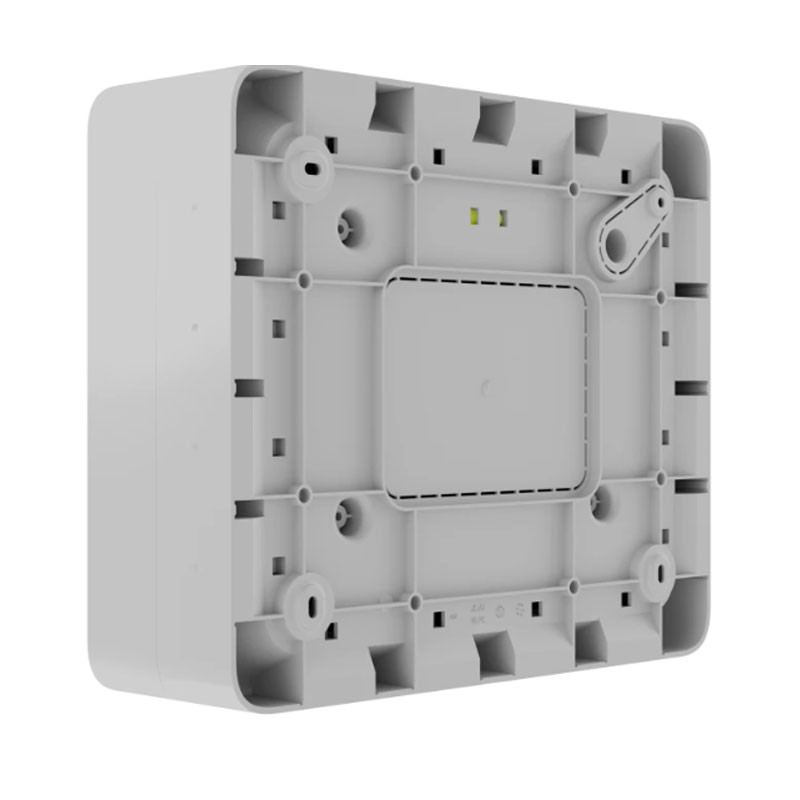

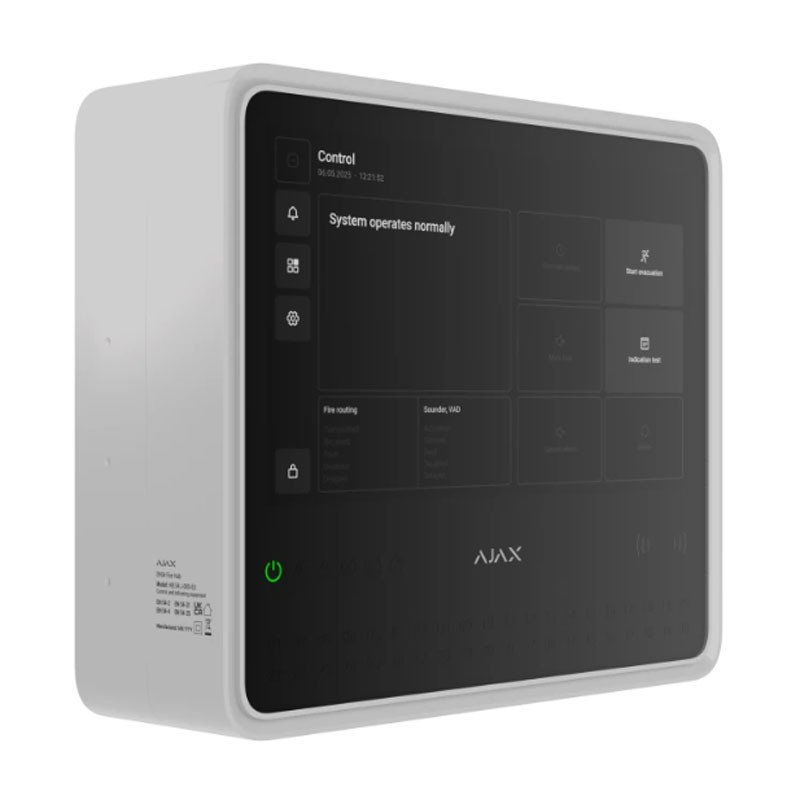

EN54 Fire Hub Jeweller 's touch screen is designed exclusively for controlling fire protection devices. Intrusion protection, automation and video surveillance devices, on the other hand, can be accessed and managed via Ajax apps.
€1,172.90
Out of stock
Incoming
Frequently bought together
Ajax Fire Hub EN54 Fire Panel: Complete management of a fire protection system
Jeweller's Ajax Fire Hub EN54 Wireless Fire Panel represents the most advanced solution for integrated management of security systems in commercial and residential settings. This device combines fire protection with intrusion protection, video surveillance and automation, creating a complete system that is easily managed from a single control point.
With a 10.1" touch screen and a clear and intuitive interface, staff can monitor the status of each sensor and connected device in real time. Notifications and alarms are displayed immediately, enabling rapid emergency management.
The control panel is designed to manage up to 200 devices, up to 40 fire zones, and up to 80 rooms, offering comprehensive control that can be modulated according to the needs of the environment. Video surveillance systems are supported up to 224 Ajax cameras via NVR, or up to 492 stand-alone cameras, with the ability to integrate third-party IP cameras via RTSP or ONVIF.
Integrated and multifunctional system
Fire protection, intrusion detection, automation and video surveillance can be controlled with one device, eliminating the need for multiple separate systems.
Simple and intuitive management
The touch screen and Ajax apps enable local and remote management of the system, with immediate display of events, alarms and device status.
Advanced wireless connectivity
Jeweller technology ensures fast and reliable communications between the control panel and all connected devices, overcoming the limitations of traditional wired systems.
Quick installation
All communicators are integrated, with no need for disassembly or complex configuration, reducing installation and maintenance time.
Intelligent automation
Up to 64 automatic scenarios can be set up based on alarms, temperature sensors, humidity, CO2 concentration, or manually operated by buttons and switches.
Reliability and security
The system records up to 5,000 events in nonvolatile memory, ensuring complete traceability of activities and alarms. In addition, optional rechargeable batteries ensure continuous operation even in the event of a power failure.
Built-in communicators
EN54 Fire Hub Jeweller is fully equipped with all communicators certified according to EN 54-25 required, with no need for additional modules. It ensures optimal connectivity between the CIE and fire detectors, acoustic signaling devices, VADs, I/O modules, manual alarm buttons, and other system devices. By pressing the manual alarm button, the alarm is transmitted to the acoustic signaling devices and VADs in only 3 seconds. At the same time, the fire alarm event is sent to the alarm receiving center via Wi-Fi, Ethernet or 4G (LTE).
Communication between the CIE and system devices
- Jeweller communication protocol: Transmits real-time device statuses, alarms, events, and all measured readings to Ajax apps.
- Wings and TurboWings communication protocols: Transfers visual checks and large data packets for individual settings, such as interface languages and firmware updates.
- Wireless range of up to 1,800 m
- Encrypted two-way radio communication
- Notifications in case of inhibition and loss of connection
- Reloading of data packets in case of transmission errors
Communication with Ajax server and apps
The CIE can be simultaneously connected to four Internet providers. It uses an Ethernet/Wi-Fi connection as the primary channel and has two SIM cards supporting 2G/4G (LTE) as backup. If the primary channel is lost, the CIE automatically selects the SIM card with the strongest signal. Switching from one channel to the other takes only a few seconds.
Quick installation and configuration
Ajax Systems redefines ease and speed of fire alarm installation in a traditionally complex industry. EN54 Fire Hub Jeweller comes fully assembled and is immediately ready for use. The CIE can be installed in minutes without having to open the case for assembly. Simply insert the internal battery2 into the dedicated compartment, providing 24 or 72 hours of battery life depending on the battery model.
All devices in the system can be easily added and configured from a smartphone or PC via Ajax apps for fast and efficient startup. There is no need to manually program complex logic: the system is configured with clear and understandable text, thanks to an intuitive and self-explanatory interface.
Fire alarm system
- Fully compliant with EN 54 standard
- Reliable detection of smoke and rapid temperature rise
- Audible and visual indication that meets the most stringent regulatory requirements
- Automatic control of fire and evacuation equipment during alarms
- System management via the CIE's large touch screen or Ajax apps
Combined fire alarm with intrusion protection
- Complies with EN 54 and EN 50131 standards (Grade 2)
- Fire alarm, intrusion protection, video surveillance and automation integrated into one system
- Support for visual verification of alarms, enabling faster identification and response to threats.
- Advanced system functionality through automation
- Full control of all devices via Ajax app for smartphones and desktops
Unhindered security
EN54 Line is suitable for a wide range of facilities, from small restaurants and gas stations to schools and office buildings. With a wireless communication range of up to 1,800 meters between the CIE and system devices, it offers reliable performance even in large premises.
To further extend coverage, the EN54 Fire ReX Jeweller repeater connects to the CIE wirelessly and via Ethernet. Up to 5 repeaters can operate simultaneously in an Ajax system, thus doubling the network capacity. It is the perfect solution for multi-story buildings or structures with thick walls, allowing devices to operate at greater distances without compromising reliability.
- Communication radius of up to 1,800 m between the CIE and devices
- Up to 35 km² of coverage with 5 repeaters per CIE
- Support for any combination of devices within the limits of the CIE
Visual verification of alarms
The CIE supports photo and video alarm verification using Ajax MotionCam detectors and security cameras. Integrated into one powerful system, these devices effectively perform their task. They help to quickly assess the situation, avoiding user concerns and unnecessary intervention by security agencies.
Capabilities
| Feature | Value |
|---|---|
| Devices Supported | Up to 200 EN54 line Ajax devices, wireless intrusion devices and resettable buttons for manual fire alarm activation, with the following exceptions: - Up to 10 intrusion sirens - Up to 50 keypads with built-in buzzer - Up to 5 EN54 Fire ReX Jeweller repeaters |
| Fire zones | Up to 40 zones with separate fire alerts. Each zone can include multiple rooms. |
| Ajax NVR | Up to 36 Ajax NVR devices |
| Ajax cameras | Up to 224 via Ajax NVR, up to 492 standalone |
| Third-party IP cameras | - Up to 10 via RTSP (SDK) - Up to 224 via ONVIF (Ajax NVR) |
| Users | Up to 200 users, including users with administrator rights. Supports PRO accounts for installers, installation companies and security institutions. Advanced access management. |
| Automation scenarios. | Up to 64 scenarios that can be activated by: - Alarm - Scheduling - On/Off - Temperature, humidity, CO₂ concentration - Button and LightSwitch buttons |
| Rooms | Up to 80 rooms can be configured |
| CIE Event Log | Up to 5,000 events related to the fire alarm system, viewable on the CIE screen and saved in the non-volatile flash memory. |
| Ajax app event log | Up to 500 events, including fire alarm, intrusion, and other system events, viewable in the event log in Ajax apps. |
Communication
| Feature | Value |
|---|---|
| Jeweller Technology | Proprietary wireless communication technology for transmission of commands, alarms and events. - Two-way communication - Advanced protection against sabotage - Block encryption with mobile key - Instant notifications - Remote control and configuration via Ajax app |
| Jeweller frequencies | 866.0-866.5 MHz 868.0-868.6 MHz 868.7-869.2 MHz 905.0-926.5 MHz 915.85-926.5 MHz 921.0-922.0 MHz (Based on sales region) |
| Effective radiated power (Jeweller) | Up to 20 mW Automatic power control to reduce consumption and interference |
| Jeweller modulation | GFSK |
| Jeweller communication range | Up to 1,800 m in open field (Depends on connected devices) |
| Jeweller Encryption | All data is protected by block encryption with a moving key |
| Frequency hopping (Jeweller) | Used to avoid interference and signal inhibition |
| Wings technology | Proprietary wireless technology to transmit photo-verification and update firmware. - Two-way communication - Advanced protection against sabotage - Block encryption with mobile key - Packet reloading in case of errors - Photo delivery control |
| Wings frequencies | 866.0-866.5 MHz 868.0-868.6 MHz 868.7-869.2 MHz 905.0-926.5 MHz 915.85-926.5 MHz 921.0-922.0 MHz (Based on sales region) |
| Wings communication range | Up to 1,800 m in open field (Depends on connected devices) |
| Wings Encryption | All data is protected by block encryption with a moving key |
| Frequency hopping (Wings) | Used to avoid interference and signal inhibition |
Communication channels
| Feature | Value |
|---|---|
| Ethernet | 1 8P8C connector Up to 100 Mbps |
| Cellular network | 2 micro SIM slots |
| Cellular frequencies | 2G: GSM900 / DCS1800 (B3/B8) 4G(LTE): FDD B1 / B3 / B5 / B7 / B8 / B20 |
| Wi-Fi | 802.11 b/g/n module Up to 72 Mbps |
| Automatic switching | Instant switching between Ethernet, Wi-Fi and SIM Instant switching between 4G (LTE), 3G and 2G networks Switching between SIMs: up to 4 minutes |
| Channel priority | 1. Ethernet 2. Wi-Fi 3. Cellular connection Channels run in parallel for greater reliability. Most data is transmitted via Ethernet. |
Notifications
| Feature | Value |
|---|---|
| Types of notifications supported | - Push notifications - SMS - Calls |
| Types of notifiable events. | - Alarms - Video alerts - Malfunctions (firefighting devices) - Malfunctions (other Ajax devices) - Changing security mode - System events - Non-security alerts - Automation devices - Smart lock events - Video intercom sound |
| Notification configuration | The types of notifications can be set individually for each user |
Monitoring
| Feature | Value |
|---|---|
| Supported protocols | - SIA (DC-09) - SurGard (Contact ID) |
| Types of events transmitted | - System alarms and events - Panic button coordinates - Photo-verification |
Fire alarm system management
| Feature | Value |
|---|---|
| Indication of alarms and malfunctions | - Screen - LED indicators - Audio The CIE's LEDs and built-in buzzer warn of alarms, malfunctions, and system states. In case of fire, it also activates visual and audio devices. The screen shows details and system statuses. |
| Checking the fire alarm | - Initiate evacuation - Reset - Mute buzzer - Mute / Reactivate beacons - Cancel delays (coming soon) - Test indication Accessible to users with appropriate rights. |
| Configurable settings | Authorized users can configure all fire system settings directly from the CIE. |
| Event Log. | Stores up to 5,000 events related to fire alarms and the system. Detailed and searchable log. |
Photo-verification
| Feature | Value |
|---|---|
| Types of photo-verification | - Photo for alarm - Photo for scenario - Photo on request - Photo for programming - Photo for arming/disarming |
| Delivery time | Up to 9 seconds (default setting) |
| Photo resolution | Up to 960 × 720 pixels (depends on the detector) |
| Number of photos per series | From 1 to 5 pictures |
Screen
| Feature | Value |
|---|---|
| Diagonal | 10,1″ |
| Matrix type | IPS |
| Resolution | 1024 × 600 px |
| Sensor | Capacitive |
| Backlighting | Manually adjustable via settings on the CIE screen |
| Interface language | Configurable from the CIE's touch screen or via Ajax apps |
Outputs
| Feature | Value |
|---|---|
| Output 1 | Relay output for reporting system malfunctions to the security institution. Contact status: normally closed (NC) by default. |
| Output 2 | Relay output to signal fire alarm to the security institution. Contact status: normally open (NO) by default. |
| Mode of operation. | Bistable |
| External power supply | 10-30 V⎓ Relay does not supply power to connected devices. |
| Power Consumption | Up to 60 W (in standby mode) |
| Maximum resistive load | Up to 2 A at 30 V⎓ |
| Maximum inductive/capacitive load | Up to 2 A at 30 V⎓ |
Protection against sabotage
| Feature | Value |
|---|---|
| Anti-sabotage tamper | Notifications in case of attempts to remove the device or mounting panel |
| Protection against counterfeiting | Device authentication |
| Detection of connection loss | After 36 seconds (depends on Jeweller protocol settings) |
Power supply
| Feature | Value |
|---|---|
| External power supply | 110-240 V, 50/60 Hz Up to 0.48 A of mains consumption |
| Internal power supply | 7,4 V⎓, 5 Ah / 10 Ah Compatible with rechargeable Li-ion battery (not included): - EN54 Internal Battery (24h) - EN54 Internal Battery (72h) |
Stand-alone operation
| Feature | Value |
|---|---|
| Run time with 24h battery | Up to 24 hours With EN54 Internal Battery (24h), not included in full set. Estimate based on touch-only screen activation using Wi-Fi, Ethernet and LTE. |
| Duration with 72h battery | Up to 72 hours With EN54 Internal Battery (72h), not included in full set. Estimate based on touch-only screen activation, using Wi-Fi, Ethernet and LTE. |
Case
| Feature | Value |
|---|---|
| Dimensions | 263 × 223 × 54 mm |
| Weight | 1.526 g |
| Operating temperatures | -10 °C to +40 °C |
| Maximum humidity | Up to 75% non-condensing |
| Protection class | IP20 |
| Flammability rating | UL 94 V-0 |
Package contents
| Feature | Value |
|---|---|
| Contents | - EN54 Fire Hub Jeweller - SmartBracket mounting panel - Installation kit - Ethernet cable - Special tool (wrench) - Quick Start Guide |
There are no reviews
Data sheet
- Colour: White
- Type: Fire alarm systems
- System: Wireless
