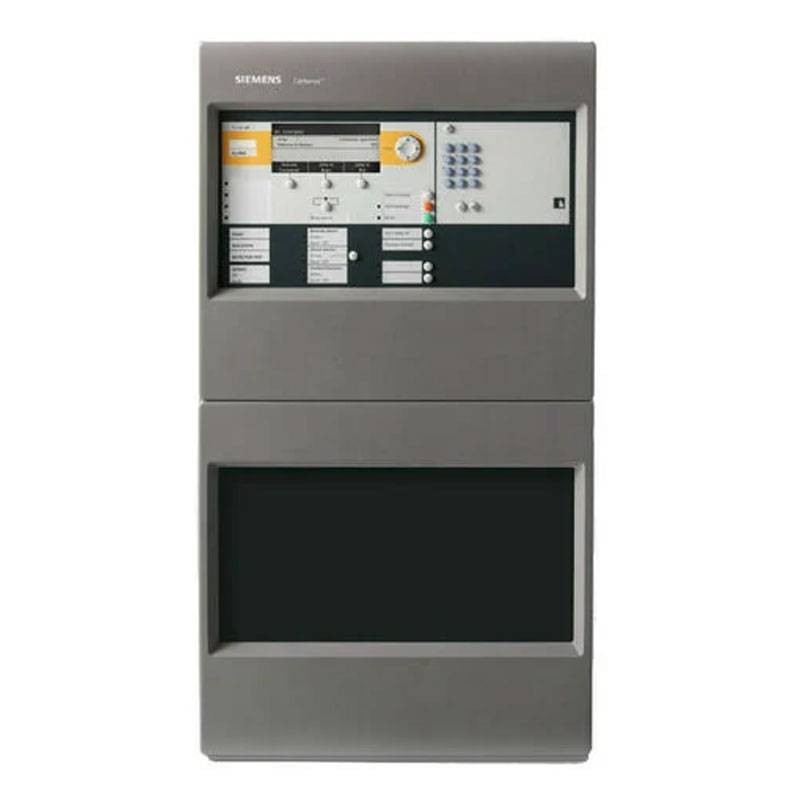

Siemens FC724-ZA 4 LOOP Analog Control Unit Fire Detection System S54400-C30-A2

Siemens
Siemens
SIE S54400-C30-A2

Siemens FC724-ZA 4 LOOP analog control panel, Cerberus PRO fire detection system, up to 504 addresses, network configurable, with the following features:

  • Loops supported: 4 (expandable to 8)

  • C-NET Addresses: Max 504

  • Stub lines: Up to 16 with extension

  • Power supply: AC 115/230 V ±10/-15 %, 150 W

  • Emergency Runtime: Up to 72 h

  • Interfaces: 2x RS232/RS485, 1x RJ45, 2 module slots

  • Outputs: 2 alarm, 2 fault, 2 monitored siren

  • Free Inputs/Outputs: 12 configurable

  • Degree of protection: IP30

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens FC724-ZA 4 LOOP Analog Control Unit Fire Detection System S54400-C30-A2
€2,708.40
€2,708.40

€2,708.40
Tax included
Calculate shipping cost
Items Available: 3
Further availability of the manufacturer
€2,708.40

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Siemens FC724-ZA control panel: advanced and scalable fire detection

The FC724-ZA analog control panel is the heart of Siemens' Cerberus PRO fire detection system. Compact, powerful and fully configurable, it is designed to manage up to 504 devices addressed on 4 C-NET loops, with expansion capability up to 8 loops or 16 stubs (with additional modules).

The system supports networking of up to 64 stations (central or terminal), providing coverage of large buildings, business complexes or hospital facilities.

Cerberus PRO technology: reliability and automation

Compatible with FD720 detectors, the central station enables automatic detection and self-configuration of C-NET devices, with remote upload/download, programmable commands and centralized event management (up to 13,000).

It is equipped with advanced features such as timed switching of parameter sets, degraded function, monitored outputs for alarm, fault and siren, RS232/RS485 slot, and Ethernet interface for network management.

Functional features and optional configurations

In addition to the basic unit, several optional modules are available such as:

  • Event printer

  • Key switches (Kaba or Nordic)

  • Additional LED units

  • Single-zone shutdown module

The control unit can be programmed locally or via PC, adapting to any system requirements.

Recommended applications

  • Public buildings and industrial complexes

  • Hospitals, airports, shopping malls

  • Critical infrastructure and data centers

  • Facilities requiring integrated control center network

Technical Specifications Siemens analog control unit

Parameter Value
Loops supported 4 (expandable to 8)
C-NET Addresses Max 504
Stub lines Up to 16 with extension
Compatibility FD720 detectors (Cerberus PRO)
Network configuration Up to 64 panels/terminals
Shutdown Optional integrated single zone
Interfaces 2x RS232/RS485, 1x RJ45, 2 module slots
Outputs 2 alarm, 2 fault, 2 monitored siren
Free inputs/outputs 12 configurable
Power supply AC 115/230 V ±10/-15 %, 150 W
Batteries 2x 12 V, max 25 Ah
Emergency autonomy Up to 72 h
Operating temperature -8 °C TO +42 °C
Max. relative humidity ≤95% (without condensation)
Dimensions with cover 443 x 802 x 188 mm (WxHxD)
Degree of protection IP30
Standards EN 54 - with integrated degraded function
Remote configuration Cerberus Engineering Tool
Cloud Connectivity Cloud for Buildings Siemens
Display User-friendly with integrated control unit

There are no reviews

Data sheet

Type:
Fire alarm systems
Zone:
4
