Comelit EVAC Compact Control unit 1 Zone 250W 49CCO100
COE 49CCO100
8023903424959
The LogiVox Series 49CCO100 Compact EVAC Control Panel is a versatile and compact voice evacuation system solution designed to manage a voice alarm zone with a maximum total power of 250W on dual A/B lines. Ideal for advanced security applications, it offers smart features, robust design and EN54-16 and EN54-4 certifications:
-
1 zone management: Maximum power of 250W on dual A/B line
-
Expandability: Connectable up to 6 Link control panels or 6 LogiVox plus 1 LogiFire Comelit
-
Intuitive interface: 4.3" touch screen display for easy and intuitive control
-
Versatile audio playback: PTT microphone included, 2 AUX inputs, 1 balanced audio with priority contact
-
Signal equalization: Configurable for any audio source
-
Flexible installation: Metal bracket for wall or rack mounting (optional with item 49BRM100)
€2,708.56
Items Available: 4
: 1

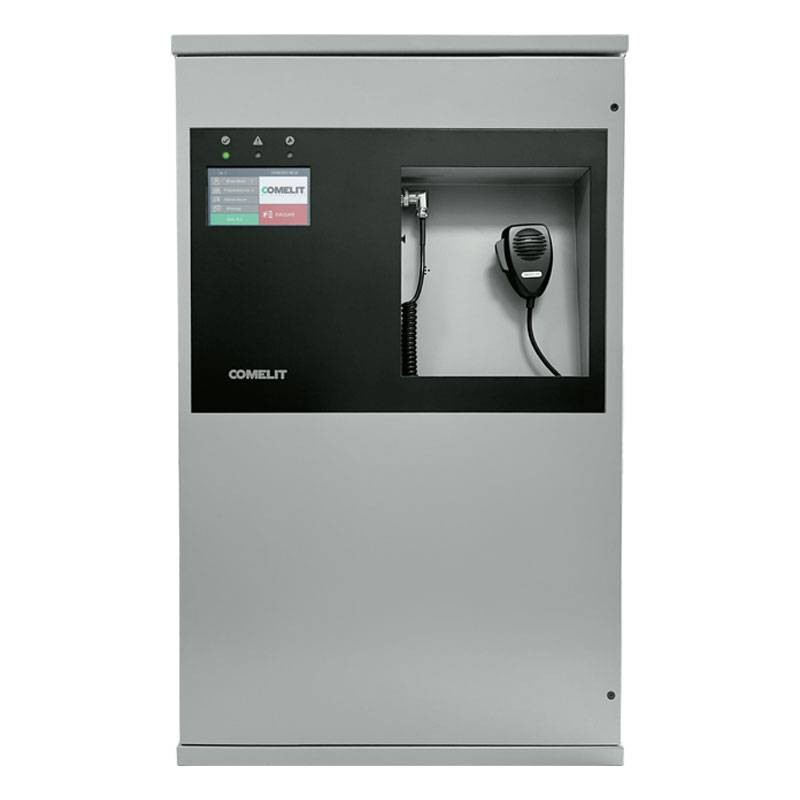

Comelit 49CCO100 Compact EVAC Control Unit
The control panel features a 4.3" touch screen display that replicates the intuitive interface of LogiFire systems for easy and immediate use. The included PTT handheld microphone allows voice messages to be sent directly from the control panel. Built-in USB ports allow playback of music files or pre-recorded messages.
Advanced audio connectivity
With 8 configurable supervised input contacts, the control panel can play messages for evacuations, alerts or commercial announcements. Includes:
- 2 AUX inputs for external audio sources.
- 1 balanced audio input with priority contact for PABX or preamplified microphone bases.
- 3 configurable relay outputs and 1 0dB audio signal for high-fidelity systems.
Intelligent management
The control unit supports the connection of up to 17 microphone stations distributed over 3 BUS lines (emergency and service). The audio signal equalization function ensures optimal performance for each connected source. Its intelligent design includes features to ensure system reliability even in case of failures.
Key Features
| Feature | Detail |
|---|---|
| Model | EVAC central unit 1 Zone 250W, LOGIVOX series |
| Number of audio zones (no.) | 1 |
| Number of amplifiers (no.) | 1 |
| Speaker line for each zone A and B (line redundancy) | Yes |
| RJ45 socket for LINK connection between control panels | Yes |
| Maximum number of control panels in the link | 6 LogiVox or 6 LogiVox +1 LogiFire |
| Emergency front microphone input | Yes |
| No. BUS lines for connecting microphone stations | 3 (EMG BUS, SRV BUS, BUSP) |
| Emergency stations connection with RJ45 connection | Yes |
| No. stations that can be connected to the EMG BUS (Emergency) | 2 |
| Connection of microphone stations with RJ45 connection | Yes |
| No. of workstations connectable to the SRV BUS (Service) | 7 |
| No. stations connectable to the BUSP (Service for 49PMS101) | 8 |
| No. AUX analog inputs for connecting external audio sources | 2 |
| No. USB ports for music playback (MP3 files) | 2 |
| Balanced analog input (PABX) with priority contact on music | Yes |
| Audio signal output "0dB" | 1 |
| 1W front speaker | Yes |
| Signal equalization for each audio source | Yes |
| Continuous microphone capsule monitoring | Yes |
| No. of 4096 event logs per Log (Fault and System) | Yes |
| Multilingual display menu | Yes |
Hardware Features
| Feature | Detail |
|---|---|
| Height (mm) | 710 |
| Width (mm) | 430 |
| Depth (mm) | 280 |
| Installation | Wall and Rack (49BRM100 optional) |
| IP rating | IP30 |
| Enclosure material | Metallic |
| Product color | Gray, RAL 7045 |
| Product weight without battery (kg) | 20,9 |
| Operating temperature (°C) | 5 ÷ 40 |
| Display | 4.3" (480x272 pixels) |
Electrical Characteristics
| Feature | Detail |
|---|---|
| Power Supply Voltage | 230VAC (+/-10%), 50Hz |
| Total maximum audio power | 250W |
| Single audio zone power | 250W |
| Programmable supervised inputs | 8 |
| Relay outputs | 3, configurable (Max. 30Vdc - 1A - NO/NC) |
Batteries
| Feature | Detail |
|---|---|
| Number of batteries | 2 |
| Battery type | 2 x 12V (33Ah to 42Ah) |
| Maximum current (A) | 25 |
| Battery level check | Yes |
