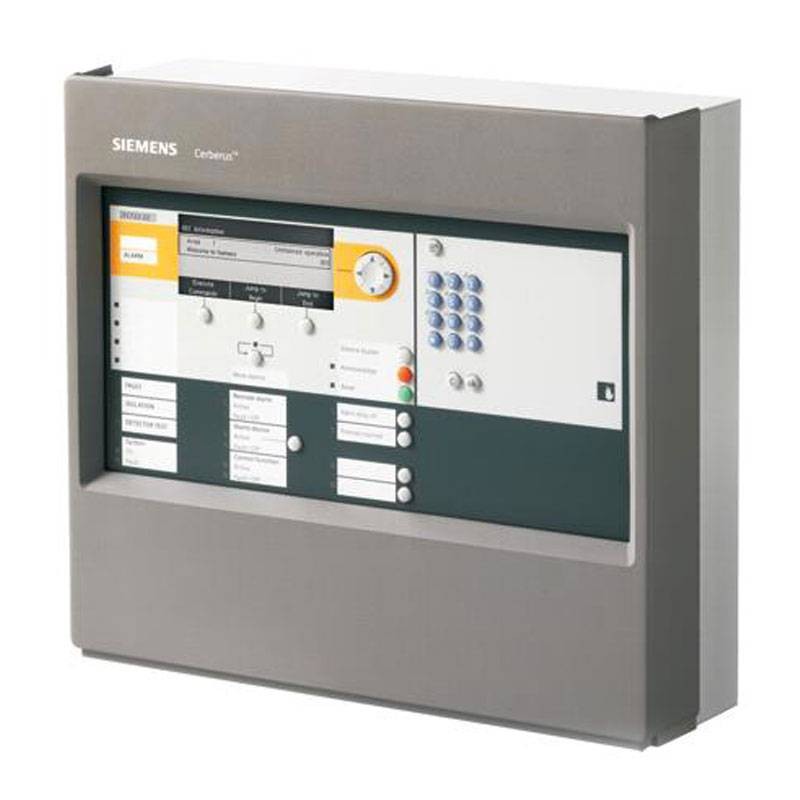

Siemens Fire Detection Control Panel FC722-ZZ 2 Loop S54400-C29-A5

Siemens
Siemens
SIE S54400-C29-A5

Compact, pre-assembled fire detection control panel with user-friendly Siemens Cerberus Pro FC722-ZZ 1 Loop control unit with the following features:

  • Support for up to 252 addresses and 2 loops

  • 70 W power supply unit

  • Battery capacity max. 12 Ah

  • Power supply Mains voltage AC 97127 V/AC 196253 V

  • Operating voltage DC 20.528.6 V

  • Operating current Max. 2,5 A

  • Degree of protection: IP30

Offers built-in single-zone shutdown functionality and can be used in stand-alone mode or networked with other stations.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens Fire Detection Control Panel FC722-ZZ 2 Loop S54400-C29-A5
€1,961.39
€1,961.39

€1,961.39
Tax included
Calculate shipping cost
Items Available: 4
Further availability of the manufacturer
€1,961.39

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Siemens FC722-ZZ fire detection control panel versatility and safety

The Siemens FC722-ZZ 2 Loop fire detection control panel is designed to meet complex and diverse security needs. With the ability to handle up to 252 addresses and flexible configuration using Cerberus-Engineering-Tool software, it easily adapts to various applications. The auto-configuration function allows it to automatically detect and read all connected devices, ensuring prompt system operation.

Integrated single-zone shutdown and networking

The FC722-ZZ supports optional single-zone shutdown functionality, an essential element for protecting specific areas of the building. In addition, the control panel can be networked with up to 64 stations, with a redundant network node ensuring safe operation even in degraded mode, meeting EN 54 standards.

Remote management and cloud connection

This station can be integrated with the Cloud for Buildings system, enabling remote management and monitoring. In addition, configuration data can be uploaded and downloaded via remote access, a feature that simplifies management and ensures continuous updates, including firmware upgrades.

Advanced functionality and high storage capacity

With an event memory that records up to 13,000 events, the Siemens FC722-ZZ enables quick reference and filtering of important data. This control unit is compatible with the Cerberus PRO FD720 line of detectors and manages alarm signals and devices over C-NET, enhancing network versatility and allowing the system to be expanded with various modules and accessories such as printers and LED indicators.

Features:

  • Flexible configuration of complex applications and controls

  • Upload and download of configuration data via remote access

  • Fast Ethernet interface for heterogeneous networking

  • Slots for RS232 and RS485 serial interfaces

  • Supervised ground dispersion on all detector lines

  • Firmware upgrade of all processor-controlled control panel components

  • Automatic summer/solar time switching

  • Number of integrated line cards 1

  • Alarm relay output RT 1

  • Fault relay output RT 1

  • Alarm monitored outputs 1

  • Fault monitored outputs 1

  • Siren monitored outputs 1

  • Freely configurable inputs/outputs 8

  • Slots for network modules 2

  • Slots for loop extension 1

  • Ethernet connection RJ45 1

  • Operating temperature: -8/+42 degrees

  • Storage temperature: -20/+60 degrees

  • Air humidity (condensation not allowed) 95 percent

  • Dimensions without cover: 430x398x165 mm (WxHxD)

  • Dimensions with lid: 443x404x188 mm (WxHxD)

  • Degree of protection: IP30

  • Color: Gray

There are no reviews

Data sheet

Type:
Fire alarm systems
Zone:
1
