The control panel has a 5A power supply with 12V output for accumulator.

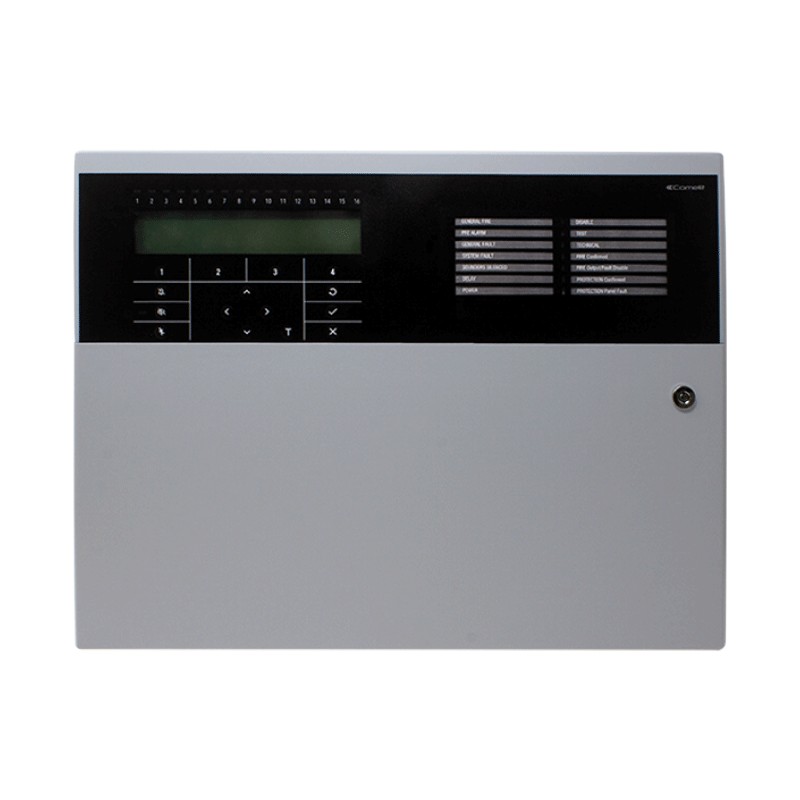

Characterized by a sturdy gray metal container (430x330x150mm) of the same size of all the panels of the new Comelit LOGIFIRE series, so as to ensure an excellent modularity and flanking of the boxes during assembly, shows on the front all the signals and commands in accordance with the requirements of the standard EN54-2 by means of LED light indications and alphanumeric LCD display 4 lines of 40 characters.



General signaling of Fire Alarm, Fault, CPU Fault, Delayed Alarm, Exclusions, Test, Faulty/Excluded Sirens, Fire Alarm Confirmation, Faulty/Excluded Alarm Output, Extinction Started, Extinction Fault, Mains Presence, Silenced Alarm. Direct commands for Buzzer silencing, Sirens silencing, Reset, Evacuation, Test Signals. 4 menu navigation keys.



Certification according to EN 54-2 and EN 54-4, compliant with EN54-13.



Features:

• Model Addressable fire alarm control panel 1-2 loops, LOGIFIRE series
• Number of loops 1 of series expandable to 2 with expansion 41ECL022
• Communication protocol Comelit Loop expansion
• Max number of devices per loop (n°) 250
• Number of detection zones available 48
• Connectivity RS485, LAN (module 41ECN000 for supervision SW)
• Alarm levels (T1 and T2) Yes
• Internal Buzzer Yes
• Evacuation countdown (T3) Yes
• Siren activation delay 1÷10 minutes
• Detection with confirmation (double action) Yes
• Activation delay management Yes
• Maximum number of events log (n°) 10000
• Multilingual display menu Yes
• Yes, Art. 41EVC100 optional
• Maximum number of connectable EVAC control panels (n°) 5
• Optional thermal printer Yes, Art. 41PRN100
• Mounting in modular structures Yes
• Flush mounting Yes, Art. 48BIA100
• Operating mode With / Without supervision (Day/Night) Yes
• Management from remote panel Yes
• Programming with PC With programming software
• Local programming By menu on display with keyboard
• Addressing of sensors with auto acquisition of loop devices Yes
• Sensor addressing with 41SPG000 electronic programmer Yes
• Backward compatibility with previous series of Comelit addressed sensors Yes
• Standards EN EN54-2, EN54-4
• Degree of protection IP IP30
• Metal Container
• Product color Gray, RAL 7045
• Alphanumeric LCD display, 4 lines of 40 characters
• Product weight without battery (g) 7000
• Led for zone status indication 16
• Height (mm) 430
• Programming ports Micro USB-B
• Width (mm) 330
• Ethernet connection Yes (for supervision by SW) Art. 41ECN000 optional
• Depth (mm) 150
• Max. number of control units that can be connected on redundant RS485 network 64, with optional 41ECB000 module
• Access protection by means of special mechanical key Inputs dedicated to interface with extinguishing systems (n°) 3
• Operating temperature (°C) -5 ÷ 40
• Operating humidity (RH max @40°C) (%) 0 ÷ 96
• Cable section for terminals (mm) 0.4 ÷ 2.5
• Main power supply 110÷230 VAC / 50÷60Hz
• Backup power supply (batteries not supplied) 1 x 12VDC - 18Ah
• Auxiliary devices power output 1 (24VDC/0.5A)
• Max current for Loop board 500mA
• Programmable free contact relay outputs (NO/NC) 4 (15A@24 VDC)
• Monitored Outputs for Sirens 2 (24VDC @ 0.5A each)
• Monitored outputs 3 (Alarm Transmission, Extinction, Fault) 300mA @ 24VDC each
