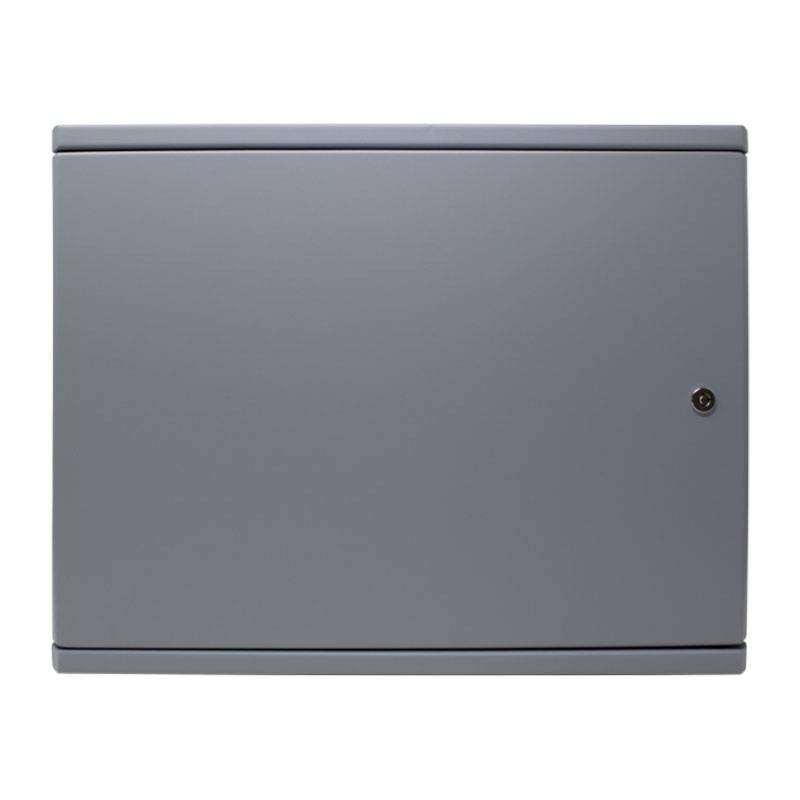

Comelit 4 Loop Expansion Box for LOGIFIRE Control Panel 41CPE104
COE 41CPE104
8023903408126
Expansion Box is designed to increase the capacity of LOGIFIRE series fire panels, such as the 41CPE118 panel. With the ability to expand up to 4 loops, it provides maximum flexibility for large fire detection systems while maintaining modularity and efficiency, with the following features:
-
Expansion up to 4 loops: supplied with 1 loop as standard, expandable up to 4 via 41ECL220 cards
-
Capacity per loop: up to 250 addressed devices (detectors, buttons, I/O modules, sirens, etc.).
-
Maximum expandability: allows 41CPE118 control panel to reach 8 loops total
-
Rugged housing: made of gray metal, with modular design for side-by-side mounting
-
Integrated power supply: 14A power supply with 12V output for batteries up to 18Ah
€910.13
Items Available: 1
Frequently bought together
Comelit 4 Loop Expansion Box for LOGIFIRE Control Panel
Modular and Flexible Expansion
The box allows the number of loops in the fire control panel to be increased, ensuring the management of complex systems with up to 250 devices per loop, for a total of 1,000 devices in full configuration.
Robust and Modular Design
With the same dimensions as the 41CPE118 control panel and the other modules in the LOGIFIRE series, the box ensures aesthetic and functional integration, ideal for professional installations.
Reliability and Compliance
A built-in 14A power supply and compatibility with batteries up to 18Ah ensure operational reliability, while EN54 certifications ensure compliance with fire safety regulations.
Key Features
| Number of loops | 1 as standard expandable to 4 with 3 single-loop expansions 41ECL120 |
|---|---|
| Max number of devices per loop | 250 |
| Mounting in modular structures | Yes |
| Programming with PC | With programming software |
Hardware Features
| Degree of protection | IP30 |
|---|---|
| Container | Metallic |
| Color | Gray |
| Dimensions | 430x330x150 mm (H-L-P) |
| Access protection | By special mechanical key |
| Operating temperature range | -10/+50 degrees |
| Cable cross section for terminals | 0.4/2.5 sq. mm |
Electrical Characteristics
| Main power supply | 110/230V AC - 50/60 Hz |
|---|---|
| Backup power supply (batteries not supplied) | 1 x 12VDC - 18Ah |
| Auxiliary device power output | 1 (24VDC/0.5A) |
| Max. current per Loop board | 700 mA |
| Monitored outputs for sirens | 1 (24VDC - 1A) |
There are no reviews
Data sheet
- Type: Fire alarm systems
