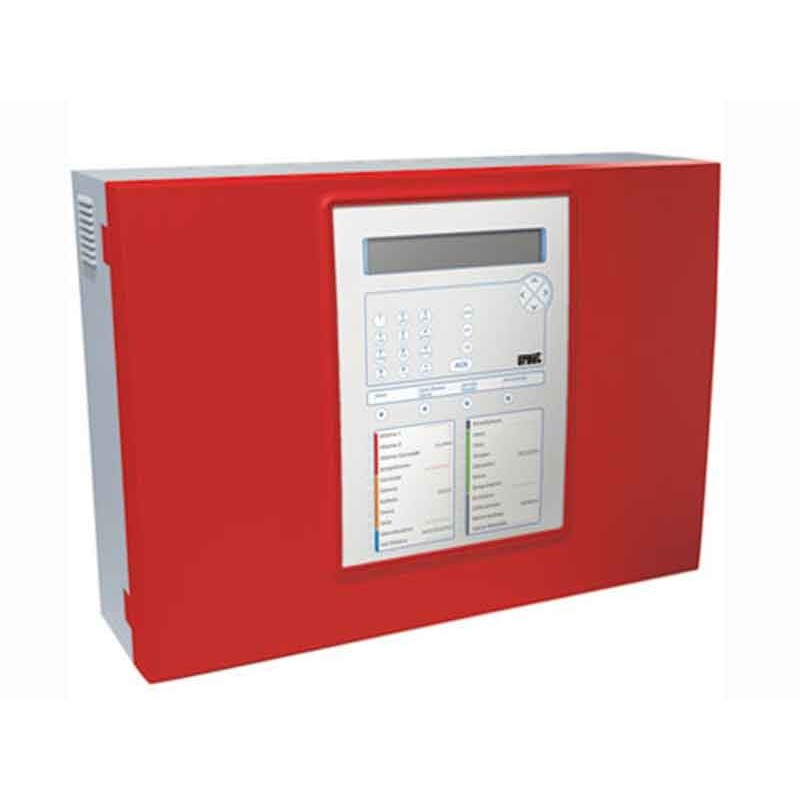

Urmet digital 2 loop fire control panel expandable to 4 1043/560
UTD 1043/560A
8021156036240
Urmet digital fire control panel with the following features:
- Basic configuration: 2 loop lines
- Max configuration: 4 loop lines
- No. zones: 480
- Max number of points: 512
- Max number of groups: 240
- Point setting. self-learning
- 4x40 backlit display
- Historical log: 1000
- USB port
€1,045.40
Items Available: 17
: 3
The new fire 500 series digital system represents a clear evolution on the market: new in design, technological architecture, it is equipped with a platform that allows multiple control panel models to be networked, providing an excellent level of performance and simplicity of installation, programming and management.
The system manages: 480 zones, each configurable in a specific type of operation (fire, technological, etc.); 240 groups of sensors, each freely associating with multiple zones, to provide a high level of cross-checking; the "threshold" of each individual detector; detector, device, communication modules and zone identification; event memory (up to 1,000); Hotel function; day/night function.
Each type of configuration is easily programmed via the control panel keyboard, via PC (USB) and via a PC keyboard (PS2).
All control panels are prepared for network communication via a LAN TCP/IP interface, of a communication port for Master/Slave functions, of a connection port for a printer, of an opto-isolated RS485 port for interfacing repeater panels, of a USB port for data download and system configuration via PC, of a communication interface for event transmission via GSM/PSTN. New configuration software and graphical maps enrich the system in local and remote information management.
Automatic point self-learning is guaranteed a priori, with a line that can be connected in 3 different modes: closed loop, open enter/exit, open with parallel connection. Complies with EN54 part 2-4 standards
Other technical features:
- Printer connection port
- LAN/TCP/IP communication port
- RS485 port for repeater panels: max 16
- RS485 master/slave port: max 32
- Tel communication port: PSTN/GSM
- Non-volatile memory
- Real time clock
- Programmable alarm threshold
- Max deliverable load: 2A
- Battery housing: 2 of 12A@12Vdc
- Dimensions (W x H x D) 490 x 355 x 135 mm
There are no reviews
Data sheet
- Type: Fire alarm systems
- Zone: 2
