Notifier INSPIRE-E10 2 loop 6 slot fire alarm control panel HOP-131-206
NOT HOP-131-206
Notifier INSPIRE-E10 fire alarm control panel with 10-inch touchscreen is a modular, scalable, cloud-connected solution designed to ensure maximum reliability and ease of operation in modern fire detection systems, with the following features:
-
10-inch color display with intuitive touch interface
-
ADV digital protocol for fast and resilient detection
-
Up to 10 modules on 10U enclosure
-
ID net networking capabilities with CLSS Cloud support
-
Graphical and textual cause-effect programming
-
19-inch rack or wall-mounted installation with battery compartment
-
Compatible with Notifier modules and accessories
€1,391.84
Items Available: 9
Frequently bought together
Inspire E10 intelligent and modular control panel for advanced fire alarm systems
The Notifier INSPIRE-E10 control panel represents the next generation of addressed fire alarm systems. Designed for high-complexity settings such as public, commercial, healthcare and industrial facilities, INSPIRE-E10 provides constant monitoring, comprehensive modularity and high performance, thanks to the ADV digital communication protocol.
The 10-inch color touchscreen user interface makes navigation easy and straightforward for both technicians and security operators. Controls are flanked by backlit buttons and guided menus that facilitate every step of installation and control.
Maximum flexibility thanks to modular design
The control panel consists of a chassis that can be configured with up to 10 modules with housing prepared for 19-inch rack or semi-recessed mounting. Each module can be inserted into any slot, simplifying wiring and maintenance.
Includes:
-
CPU module
-
Charger module
-
240W power supply (basic version)
-
Dual-loop Notifier module (up to 2 loops)
-
Side cover for surface mounting
-
10-inch touch screen port
ID net network and CLSS integration for advanced monitoring
With ID net compatibility, INSPIRE enables networking of multiple exchanges and full control of devices on each loop. The system is natively compatible with the Honeywell CLSS Cloud platform, which enables:
-
Remote monitoring from apps and browsers
-
Advanced real-time diagnostics
-
Automatic reporting and test certification
-
Centralized management of multiple plants from a single interface
Operational benefits
-
Comprehensive cause-and-effect configuration, with advanced logic for actuator control
-
Programmable day/night mode, to optimize sensor sensitivity based on time of day
-
Simplified wiring due to modularity
-
Rapid upgrades without interrupting system functionality
-
Compatible with I/O modules, sirens, beacons, Self-Test sensors and all Notifier ADV devices
Ideal applications
-
Fire alarm systems in public and private buildings
-
Health care and hospital sectors
-
Industries and logistics
-
Data centers, hotels and large commercial facilities
Technical Specifications Notifier fire alarm control panel

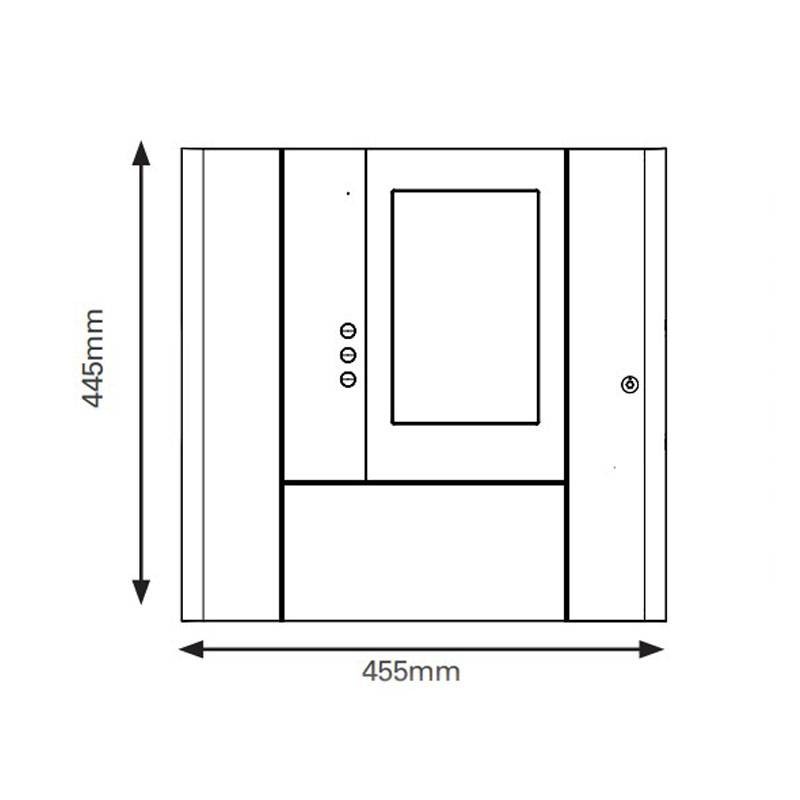

Dimensions and Installation
| Height | 445 mm |
| Width | 455 mm |
| Depth | 190 mm (with 8 mm spacers) |
| Mounting holes | 5 (on the back) |
| Cable inputs | 30 top, 17 rear, 26 bottom |
| Mounting | Surface or 19" rack |
| Color | RAL 7022, semi-gloss finish |
Power Supply and Battery
| Operating voltage | 230 Vac - 50 Hz |
| Power supply | 240 W (up to 480 W optional) |
| Battery output voltage | 27.2 V nominal |
| Supported battery capacities | 12 Ah to 38 Ah (depending on container) |
Operating Environment
| Operating temperature | 0°C TO +40°C |
| Relative humidity | 5% ÷ 95% (non-condensing) |
| Degree of Protection | IP30 |
Certifications
| EMC Certifications | EN 61000-6-3, EN 50130-4 |
| Electrical Safety | EN 62368-1 |
There are no reviews
Data sheet
- Type: Fire alarm systems
