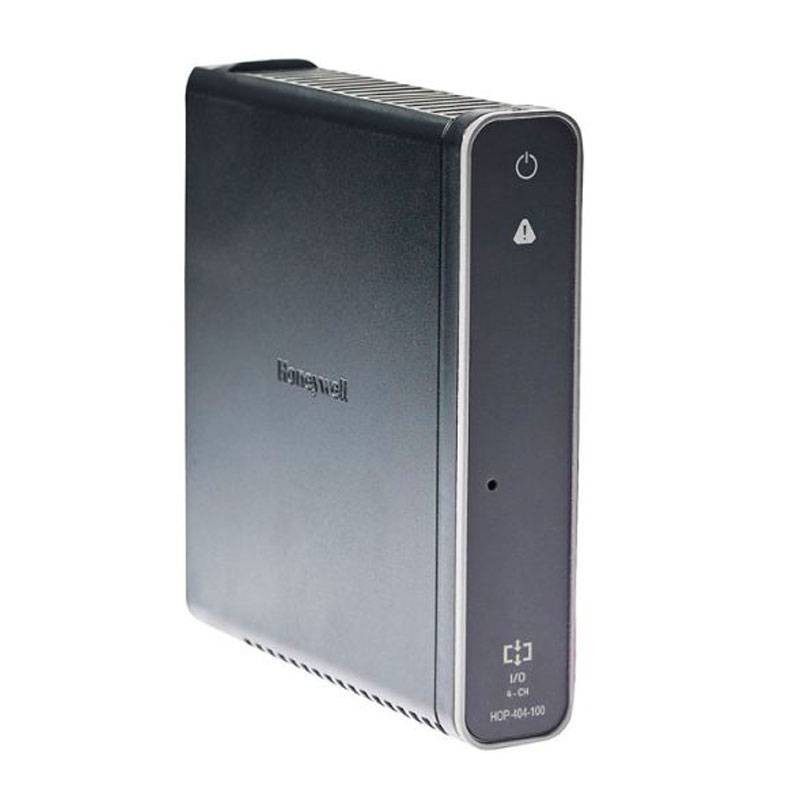

Notifier I/O module 4-channel AUX 24VDC control units INSPIRE E10-E15 HOP-404-100
NOT HOP-404-100
Notifier I/O module, expand the functionality of your INSPIRE fire control panel with 4 configurable channels for inputs or outputs, fully software manageable, with the following features:
-
4 individually configurable I/O channels
-
Compatible with INSPIRE E10 and E15 control panels
-
Supervised and unsupervised digital inputs
-
Supported siren circuits (1A per channel)
-
Advanced software configuration
-
24VDC ±5% auxiliary power supply up to 2A
€375.91
Items Available: 1
Frequently bought together
4-channel I/O module, versatility and control for fire alarm systems
The AUX 24VDC 4-channel I/O module is the ideal solution for expanding and customizing the functions of a Notifier INSPIRE series fire control panel, models E10 and E15. Thanks to its flexible structure, each channel can be individually configured as an input or output, adapting perfectly to signaling, control or monitoring needs.
The interface allows the connection of digital inputs, both supervised and unsupervised, as well as the management of acoustic circuits (up to 1A per channel). With a maximum total power of 3A on all channels, the module offers high performance in total operational safety.
Simple and flexible configuration
The module is fully configurable via software, allowing advanced and centralized signal management. You can customize each channel according to the type of system and control needs, reducing the number of external devices and optimizing installation.
Power is supplied via 24VDC (±5%) auxiliary line, with the possibility of operation at different current thresholds: 500 mA, 1000 mA, 1500 mA and 2000 mA, depending on the overall load of the connected devices.
Ideal applications
-
Fire alarm systems with a high need for I/O customization
-
Management of complex scenarios on Notifier INSPIRE control panels
-
Remote supervision of digital inputs
-
Activation of sirens, lights or relays on specific events
-
Integration with automation or access control devices
Technical Specifications Notifier I/O Module
Channels and Features
| Number of channels | 4 |
| Channel type | Configurable as input or output |
| Max current per siren output | 1 A per channel |
| Max total current | 3 A total on all channels |
| Digital inputs | Supervised and unsupervised |
Power Supply and Compatibility
| Power supply | 24 VDC ± 5% |
| Supported supply current | 500 mA, 1000 mA, 1500 mA, 2000 mA |
| Compatibility | Notifier INSPIRE E10, E15 control panels |
| Configuration | Via Notifier software |
There are no reviews
Data sheet
- Type: Indexed Modules
