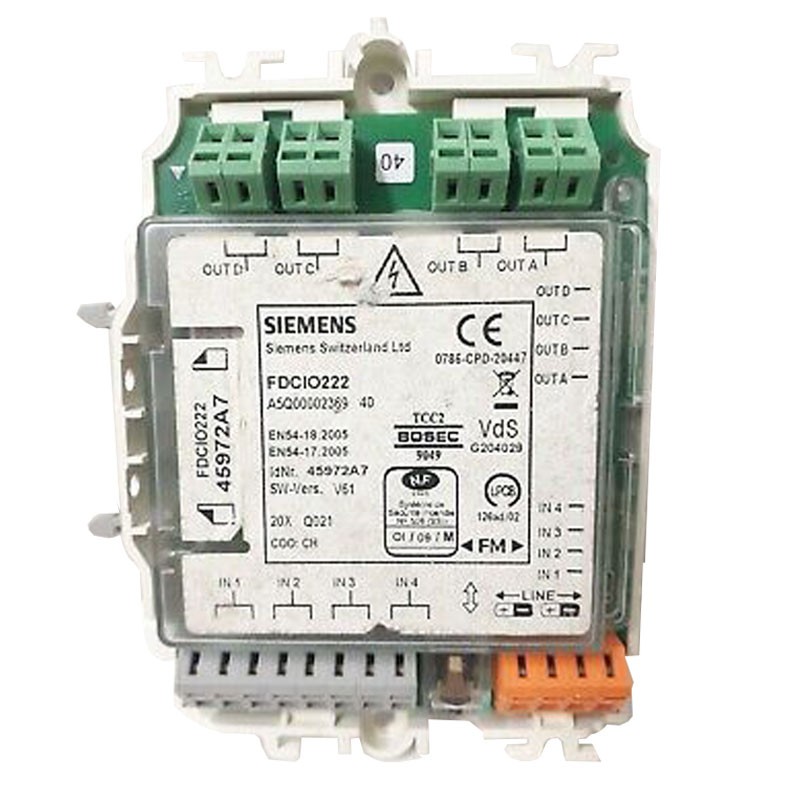

Siemens 12-33V DC module 4 addressed inputs and outputs A5Q00002369
SIE A5Q00002369
Siemens 4-input, 4-output addressed module with line separator, contact monitoring and potential-free relay. Ideal for firefighting and technical control systems, with the following features:
-
Inputs: 4 monitored, for potential-free contacts
-
Outputs: 4 potential-free relays (AC/DC)
-
Communication protocol: FDnet / C-NET
-
Power supply: 12-33V DC
-
Quiescent current: 0.6-0.75 mA
-
Status LEDs: Alarm, fault, test, localization
-
Dimensions: 130x90x20 mm (WxHxD)
-
Color: White, transparent cover
€175.31
Items Available: 6
: 2
Frequently bought together
Input/Output Module for Intelligent Fire Alarm Systems.
The Siemens FDCIO222 module, is a professional solution for decentralized management of inputs and outputs in FDnet or C-NET loop-based fire detection systems. It enables the integration and monitoring of technical devices such as fans, fire doors, air conditioning systems or sprinklers, thanks to flexible configuration and constant signal monitoring.
4 Monitored Inputs: Total Reliability
Digital inputs are designed to connect potential-free, normally open or closed contacts, such as:
-
Technical status sensors
-
Door limit switches
-
Fault signals
-
Sprinkler system activation
The input lines are monitored against interruptions or short circuits, using supplied terminal resistors. Each input can be configured to send status or alarm signals.
4 Zero Potential Relay Outputs
Relay outputs are suitable for direct control of devices with the following limits:
-
AC 250 V, 4 A (max 1000 VA)
-
DC 30 V, 4 A (max 120 W)
Perfect for activating actuators, controllers, motors, or ventilation systems. Each output can be independently programmed to suit the specific needs of the system.
Versatile Installation and Advanced Monitoring
-
Easy mounting on DIN rail or with snap-on brackets
-
Transparent enclosure for immediate visibility of LEDs
-
Built-in line separator to ensure loop security
-
FDnet/C-NET protocol compatible with Siemens FS20, FS720, AlgoRex, SIGMASYS control panels
-
Automatic addressing at the time of configuration
Recommended Applications.
-
Fire door control
-
Fans and HVAC
-
Sprinkler alarm activation
-
Decentralized technical monitoring
-
Integration into Siemens fire detection systems
Technical Specifications Siemens Input/Output Module
| Parameter | Value |
|---|---|
| Inputs | 4 monitored, for potential-free contacts |
| Outputs | 4 potential-free relays (AC 250V / DC 30V, up to 4 A) |
| Communication protocol | FDnet / C-NET |
| Power supply | 12 - 33 V DC |
| Quiescent current | 0.6 - 0.75 mA |
| Line separator | Integrated |
| Line status monitoring | Yes (with terminal resistors) |
| Status LEDs | Alarm, fault, test, localization |
| System compatibility | FS20, FS720, AlgoRex, SIGMASYS |
| Operating temperature | -25 °C TO +60 °C |
| Storage temperature | -30 °C ÷ +65 °C |
| Relative humidity | ≤95% (non-condensing) |
| Dimensions (W x H x D) | 130 x 90 x 20 mm |
| Connections | Terminals 0.2 to 1.5 mm² (up to 2.5 mm² with accessory) |
| Protection | IP30 / IP65 (with FDCH221 enclosure) |
| Color | Pure white RAL 9010 with transparent cover |
| Standards | EN 54-17, EN 54-18, CEA GEI I-084 |
